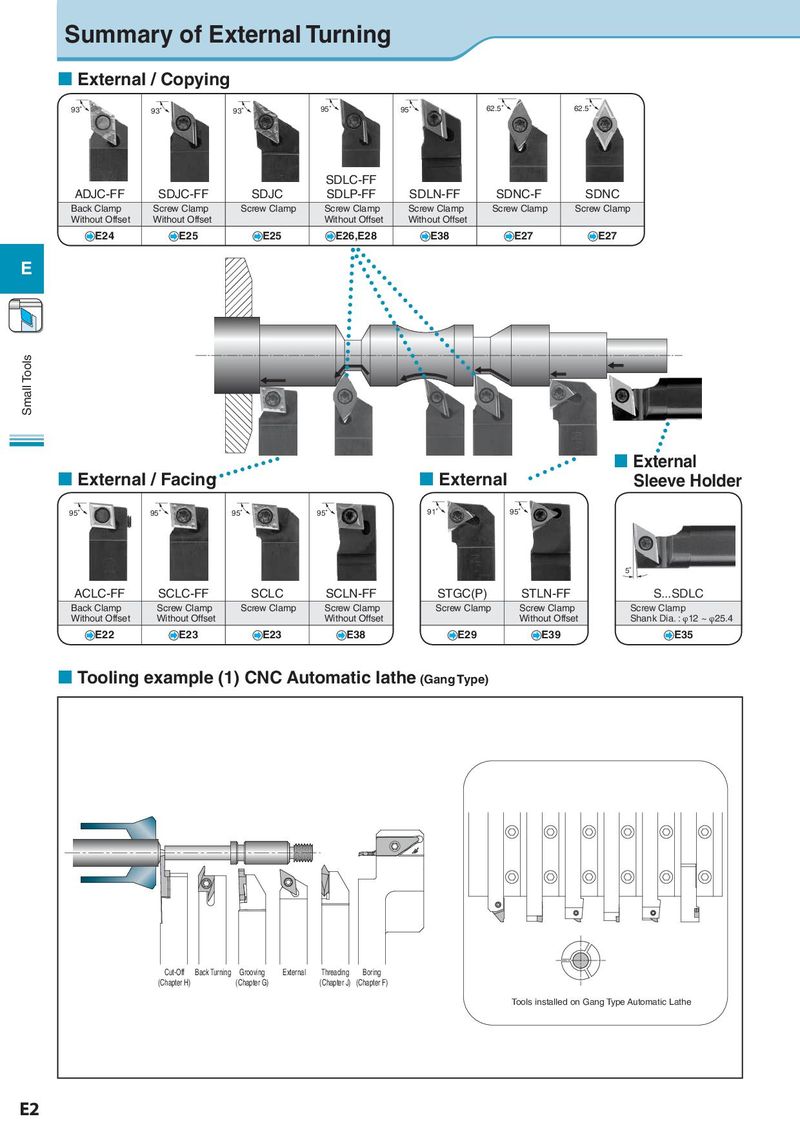

Summary of External Turning ¢ External / Copying 93˚ 93˚ 93˚ 95˚ 95˚ 62.5˚ 62.5˚ SDLC-FF ADJC-FF SDJC-FF SDJC SDLP-FF SDLN-FF SDNC-F SDNC Back Clamp Screw Clamp Screw Clamp Screw Clamp Screw Clamp Screw Clamp Screw Clamp Without Offset Without Offset Without Offset Without Offset E24 E25 E25 E26,E28 E38 E27 E27 E Small Tools ¢ External ¢ External / Facing ¢ External Sleeve Holder 95˚ 95˚ 95˚ 95˚ 91˚ 95˚ 5° ACLC-FF SCLC-FF SCLC SCLN-FF STGC(P) STLN-FF S...SDLC Back Clamp Screw Clamp Screw Clamp Screw Clamp Screw Clamp Screw Clamp Screw Clamp Without Offset Without Offset Without Offset Without Offset Shank Dia. : φ12 ~ φ25.4 E22 E23 E23 E38 E29 E39 E35 ¢ Tooling example (1) CNC Automatic lathe (Gang Type) Cut-Off Back Turning Grooving External Threading Boring (Chapter H) (Chapter G) (Chapter J) (Chapter F) Tools installed on Gang Type Automatic Lathe E2
