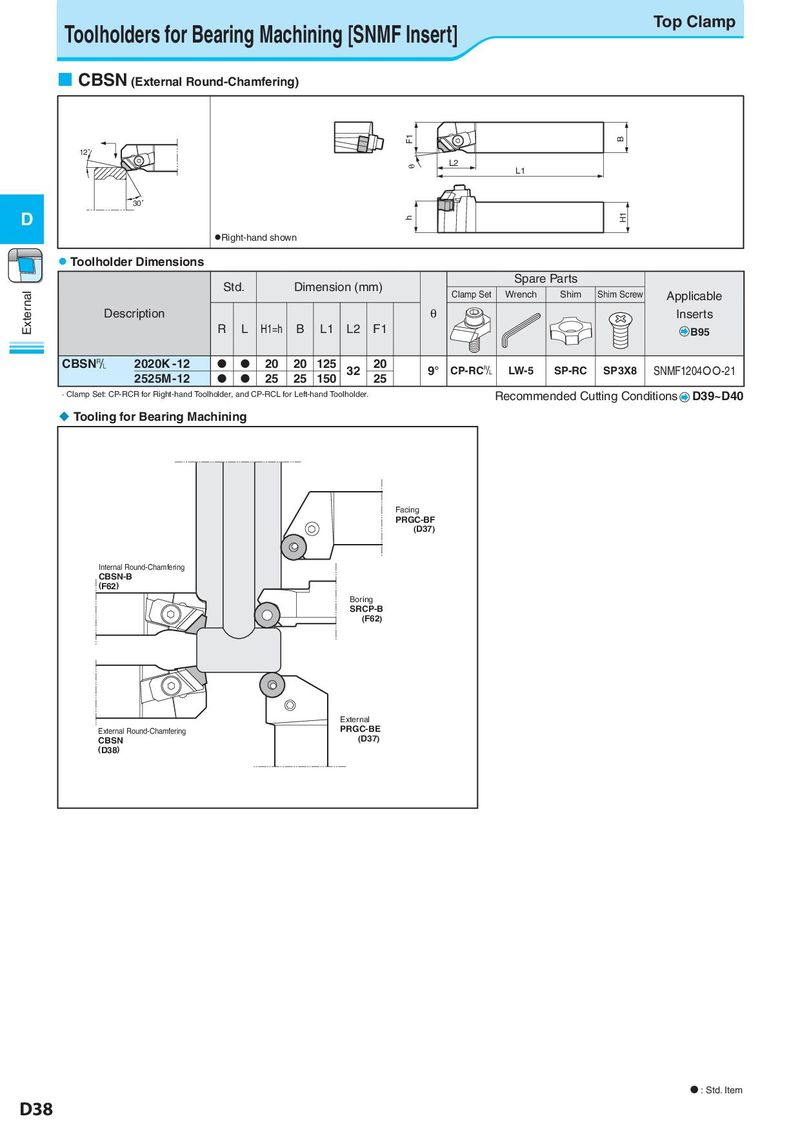

Основной каталог Kyocera 2016-2017 - страница 212

Toolholders for Bearing Machining [SNMF Insert] Top Clamp ¢ CBSN (External Round-Chamfering) F1 B 12゜ θ L2 L1 30゜ D h H1 lRight-hand shown l Toolholder Dimensions Std. Dimension (mm) Spare Parts External Clamp Set Wrench Shim Shim Screw Applicable Description θ Inserts R L H1=h B L1 L2 F1 B95 CBSN& 2020K -12 N N 20 20 125 32 20 9° CP-RC& LW-5 SP-RC SP3X8 SNMF1204¡¡-21 2525M -12 N N 25 25 150 25 · Clamp Set: CP-RCR for Right-hand Toolholder, and CP-RCL for Left-hand Toolholder. Recommended Cutting Conditions D39~D40 u Tooling for Bearing Machining Facing PRGC-BF (D37) Internal Round-Chamfering CBSN-B (F62) Boring SRCP-B (F62) External External Round-Chamfering PRGC-BE CBSN (D37) (D38) N : Std. Item D38
