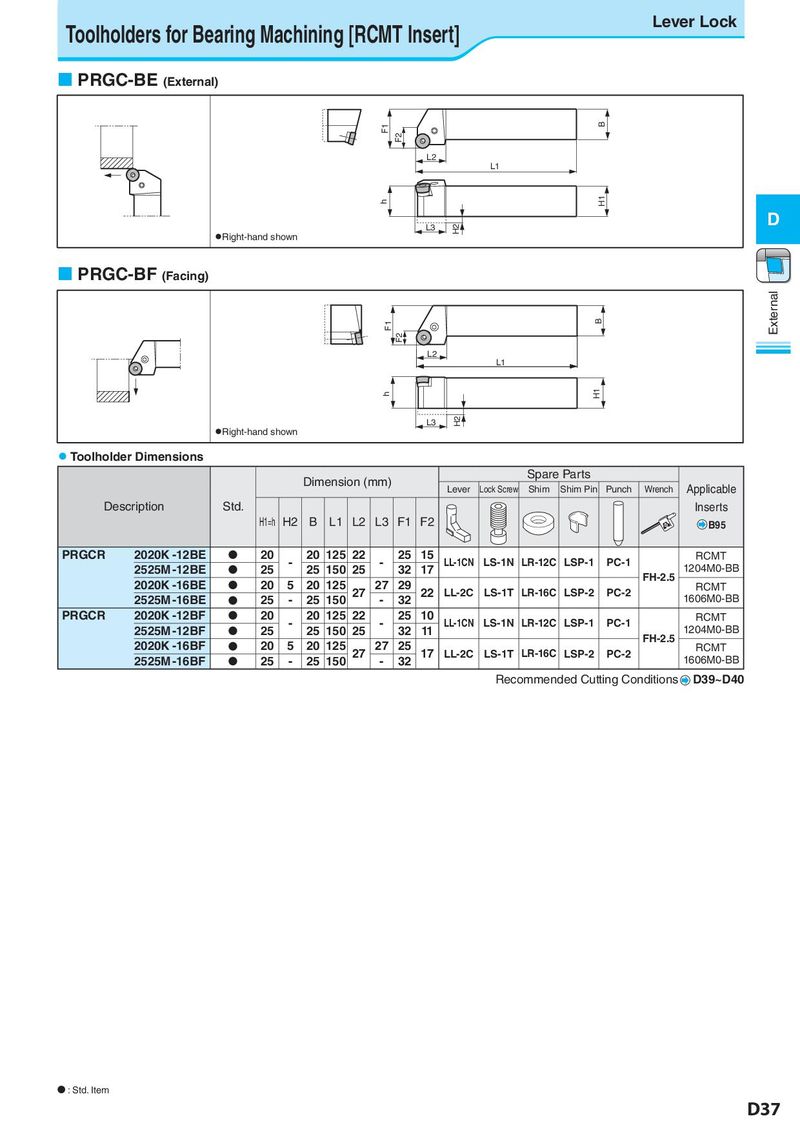

Toolholders for Bearing Machining [RCMT Insert] Lever Lock ¢ PRGC-BE (External) F1 B F2 L2 L1 h H1 L3 H2 D lRight-hand shown ¢ PRGC-BF (Facing) F1 B External F2 L2 L1 h H1 L3 H2 lRight-hand shown l Toolholder Dimensions Dimension (mm) Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench Applicable Description Std. Inserts H1=h H2 B L1 L2 L3 F1 F2 B95 PRGCR 2020K -12BE N 20 - 20 125 22 - 25 15 LL-1CN LS-1N LR-12C LSP-1 PC-1 RCMT 2525M -12BE N 25 25 150 25 32 17 FH-2.5 1204M0-BB 2020K -16BE N 20 5 20 125 27 27 29 22 LL-2C LS-1T LR-16C LSP-2 PC-2 RCMT 2525M -16BE N 25 - 25 150 - 32 1606M0-BB PRGCR 2020K -12BF N 20 - 20 125 22 - 25 10 LL-1CN LS-1N LR-12C LSP-1 PC-1 RCMT 2525M -12BF N 25 25 150 25 32 11 FH-2.5 1204M0-BB 2020K -16BF N 20 5 20 125 27 27 25 17 LL-2C LS-1T LR-16C LSP-2 PC-2 RCMT 2525M -16BF N 25 - 25 150 - 32 1606M0-BB Recommended Cutting Conditions D39~D40 N : Std. Item D37
