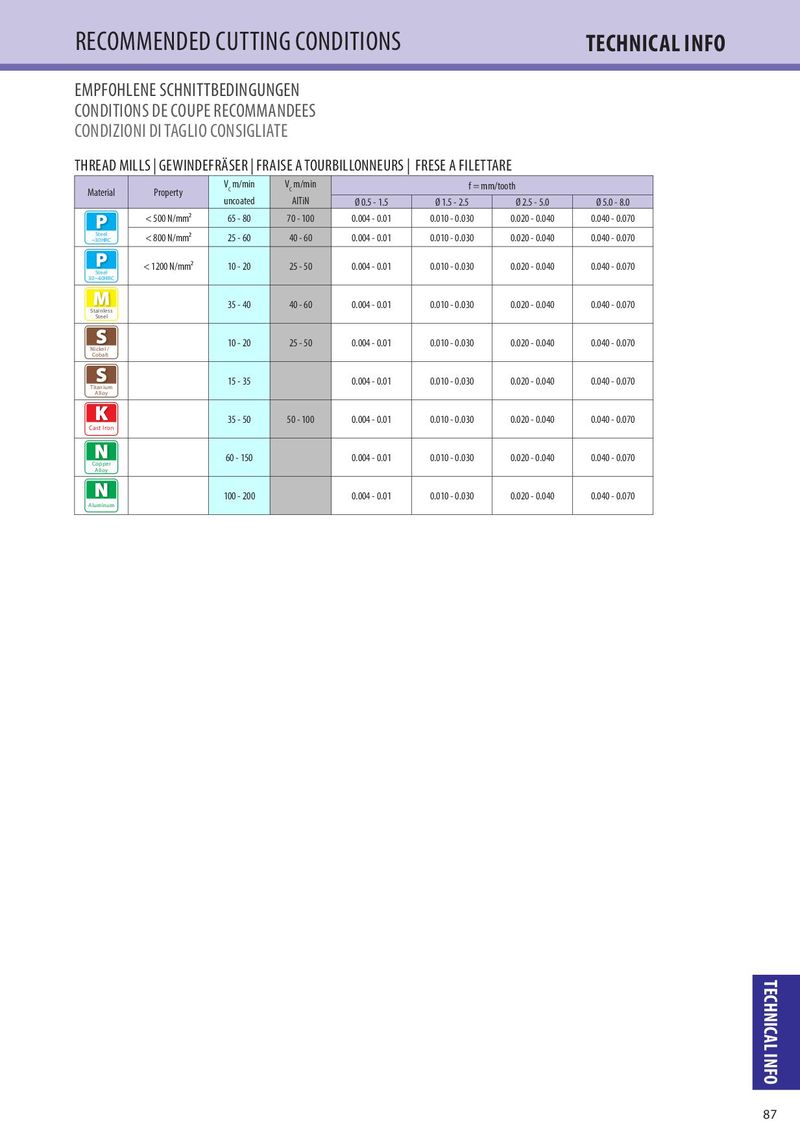

RECOMMENDED CUTTING CONDITIONS TECHNICAL INFO EMPFOHLENE SCHNITTBEDINGUNGEN CONDITIONS DE COUPE RECOMMANDEES CONDIZIONI DI TAGLIO CONSIGLIATE THREAD MILLS | GEWINDEFRÄSER | FRAISE A TOURBILLONNEURS | FRESE A FILETTARE V C m/min V C m/min f = mm/tooth Material Property uncoated AlTiN Ø 0.5 - 1.5 Ø 1.5 - 2.5 Ø 2.5 - 5.0 Ø 5.0 - 8.0 < 500 N/mm² 65 - 80 70 - 100 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 Steel ~30HRC < 800 N/mm² 25 - 60 40 - 60 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 < 1200 N/mm² 10 - 20 25 - 50 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 Steel 30~40HRC 35 - 40 40 - 60 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 Stainless Steel 10 - 20 25 - 50 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 Nickel / Cobalt 15 - 35 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 Titanium Alloy 35 - 50 50 - 100 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 Cast Iron 60 - 150 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 Copper Alloy 100 - 200 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070 Aluminum TECHNICAL INFO 87 2015_KUTDE_MIT_Catalog_TZZ00058.indd 87 04.03.2016 07:54:23
