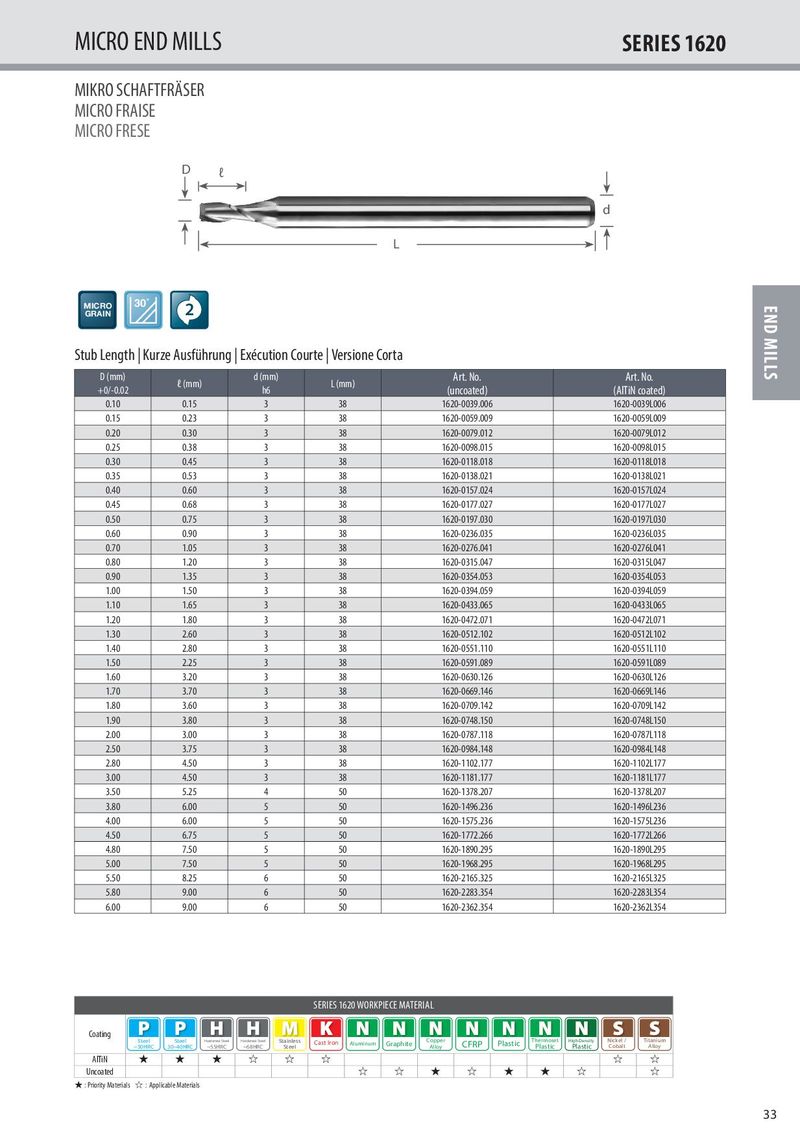

MICRO END MILLS SERIES 1620 MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE D ℓ d L MICRO 30˚ END MILLS GRAIN 2 Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0/-0.02 h6 (uncoated) (AlTiN coated) 0.10 0.15 3 38 1620-0039.006 1620-0039L006 0.15 0.23 3 38 1620-0059.009 1620-0059L009 0.20 0.30 3 38 1620-0079.012 1620-0079L012 0.25 0.38 3 38 1620-0098.015 1620-0098L015 0.30 0.45 3 38 1620-0118.018 1620-0118L018 0.35 0.53 3 38 1620-0138.021 1620-0138L021 0.40 0.60 3 38 1620-0157.024 1620-0157L024 0.45 0.68 3 38 1620-0177.027 1620-0177L027 0.50 0.75 3 38 1620-0197.030 1620-0197L030 0.60 0.90 3 38 1620-0236.035 1620-0236L035 0.70 1.05 3 38 1620-0276.041 1620-0276L041 0.80 1.20 3 38 1620-0315.047 1620-0315L047 0.90 1.35 3 38 1620-0354.053 1620-0354L053 1.00 1.50 3 38 1620-0394.059 1620-0394L059 1.10 1.65 3 38 1620-0433.065 1620-0433L065 1.20 1.80 3 38 1620-0472.071 1620-0472L071 1.30 2.60 3 38 1620-0512.102 1620-0512L102 1.40 2.80 3 38 1620-0551.110 1620-0551L110 1.50 2.25 3 38 1620-0591.089 1620-0591L089 1.60 3.20 3 38 1620-0630.126 1620-0630L126 1.70 3.70 3 38 1620-0669.146 1620-0669L146 1.80 3.60 3 38 1620-0709.142 1620-0709L142 1.90 3.80 3 38 1620-0748.150 1620-0748L150 2.00 3.00 3 38 1620-0787.118 1620-0787L118 2.50 3.75 3 38 1620-0984.148 1620-0984L148 2.80 4.50 3 38 1620-1102.177 1620-1102L177 3.00 4.50 3 38 1620-1181.177 1620-1181L177 3.50 5.25 4 50 1620-1378.207 1620-1378L207 3.80 6.00 5 50 1620-1496.236 1620-1496L236 4.00 6.00 5 50 1620-1575.236 1620-1575L236 4.50 6.75 5 50 1620-1772.266 1620-1772L266 4.80 7.50 5 50 1620-1890.295 1620-1890L295 5.00 7.50 5 50 1620-1968.295 1620-1968L295 5.50 8.25 6 50 1620-2165.325 1620-2165L325 5.80 9.00 6 50 1620-2283.354 1620-2283L354 6.00 9.00 6 50 1620-2362.354 1620-2362L354 SERIES 1620 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Thermoset High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ★ ☆ ★ ★ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 33 2015_KUTDE_MIT_Catalog_TZZ00058.indd 33 04.03.2016 07:52:28
