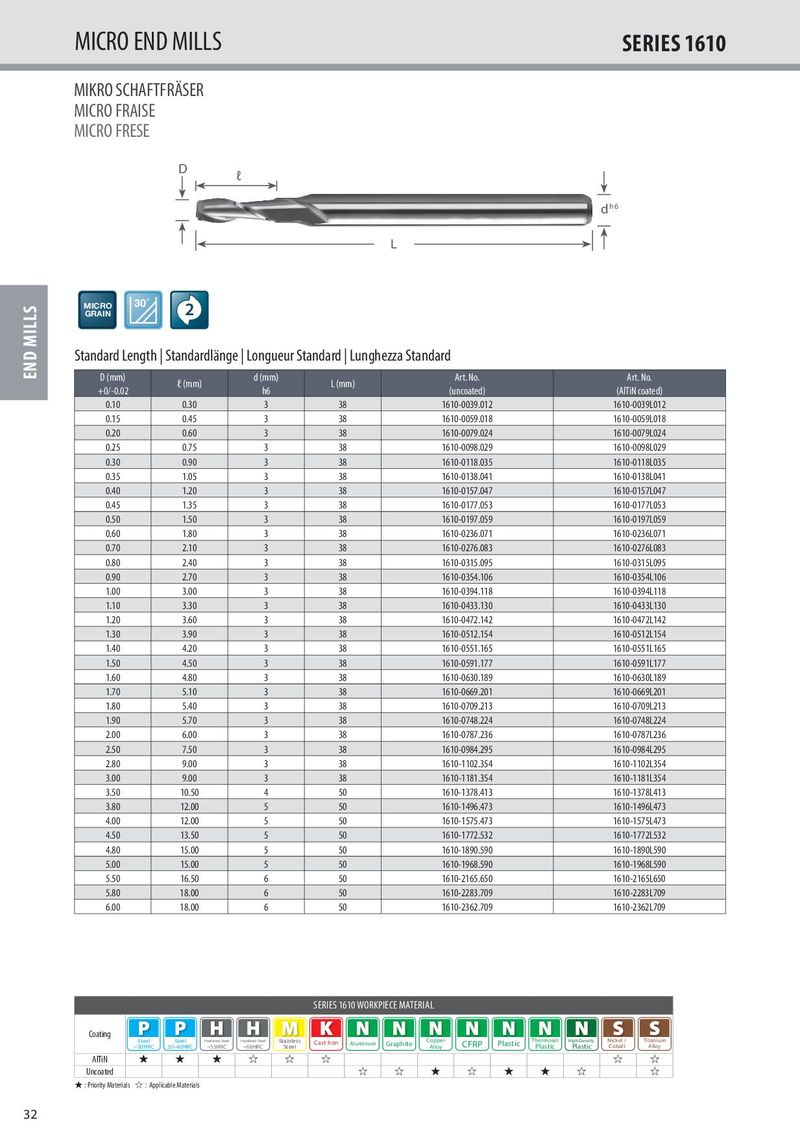

MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
D
ℓ
d h6
L
MICRO 30˚ 2
GRAIN Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
| D (mm) +0/-0.02 | ℓ (mm) | d (mm) h6 | L (mm) | Art. No. (uncoated) | Art. No. (AlTiN coated) |
| 0.10 | 0.30 | 3 | 38 | 1610-0039.012 | 1610-0039L012 |
| 0.15 | 0.45 | 3 | 38 | 1610-0059.018 | 1610-0059L018 |
| 0.20 | 0.60 | 3 | 38 | 1610-0079.024 | 1610-0079L024 |
| 0.25 | 0.75 | 3 | 38 | 1610-0098.029 | 1610-0098L029 |
| 0.30 | 0.90 | 3 | 38 | 1610-0118.035 | 1610-0118L035 |
| 0.35 | 1.05 | 3 | 38 | 1610-0138.041 | 1610-0138L041 |
| 0.40 | 1.20 | 3 | 38 | 1610-0157.047 | 1610-0157L047 |
| 0.45 | 1.35 | 3 | 38 | 1610-0177.053 | 1610-0177L053 |
| 0.50 | 1.50 | 3 | 38 | 1610-0197.059 | 1610-0197L059 |
| 0.60 | 1.80 | 3 | 38 | 1610-0236.071 | 1610-0236L071 |
| 0.70 | 2.10 | 3 | 38 | 1610-0276.083 | 1610-0276L083 |
| 0.80 | 2.40 | 3 | 38 | 1610-0315.095 | 1610-0315L095 |
| 0.90 | 2.70 | 3 | 38 | 1610-0354.106 | 1610-0354L106 |
| 1.00 | 3.00 | 3 | 38 | 1610-0394.118 | 1610-0394L118 |
| 1.10 | 3.30 | 3 | 38 | 1610-0433.130 | 1610-0433L130 |
| 1.20 | 3.60 | 3 | 38 | 1610-0472.142 | 1610-0472L142 |
| 1.30 | 3.90 | 3 | 38 | 1610-0512.154 | 1610-0512L154 |
| 1.40 | 4.20 | 3 | 38 | 1610-0551.165 | 1610-0551L165 |
| 1.50 | 4.50 | 3 | 38 | 1610-0591.177 | 1610-0591L177 |
| 1.60 | 4.80 | 3 | 38 | 1610-0630.189 | 1610-0630L189 |
| 1.70 | 5.10 | 3 | 38 | 1610-0669.201 | 1610-0669L201 |
| 1.80 | 5.40 | 3 | 38 | 1610-0709.213 | 1610-0709L213 |
| 1.90 | 5.70 | 3 | 38 | 1610-0748.224 | 1610-0748L224 |
| 2.00 | 6.00 | 3 | 38 | 1610-0787.236 | 1610-0787L236 |
| 2.50 | 7.50 | 3 | 38 | 1610-0984.295 | 1610-0984L295 |
| 2.80 | 9.00 | 3 | 38 | 1610-1102.354 | 1610-1102L354 |
| 3.00 | 9.00 | 3 | 38 | 1610-1181.354 | 1610-1181L354 |
| 3.50 | 10.50 | 4 | 50 | 1610-1378.413 | 1610-1378L413 |
| 3.80 | 12.00 | 5 | 50 | 1610-1496.473 | 1610-1496L473 |
| 4.00 | 12.00 | 5 | 50 | 1610-1575.473 | 1610-1575L473 |
| 4.50 | 13.50 | 5 | 50 | 1610-1772.532 | 1610-1772L532 |
| 4.80 | 15.00 | 5 | 50 | 1610-1890.590 | 1610-1890L590 |
| 5.00 | 15.00 | 5 | 50 | 1610-1968.590 | 1610-1968L590 |
| 5.50 | 16.50 | 6 | 50 | 1610-2165.650 | 1610-2165L650 |
| 5.80 | 18.00 | 6 | 50 | 1610-2283.709 | 1610-2283L709 |
| 6.00 | 18.00 | 6 | 50 | 1610-2362.709 | 1610-2362L709 |
SERIES 1610 WORKPIECE MATERIAL Coating
| Steel | Steel | Hardened Steel | Hardened Steel | Stainless | Cast Iron | Graphite | Copper | CFRP | Plastic | Thermoset | High Density | Nickel / | Titanium | ||
| ~30HRC | 30~40HRC | ~55HRC | ~68HRC | Steel | Aluminum | Alloy | Plastic | Plastic | Cobalt | Alloy | |||||
| AlTiN | ★ | ★ | ★ | ☆ | ☆ | ☆ | ☆ | ☆ |
