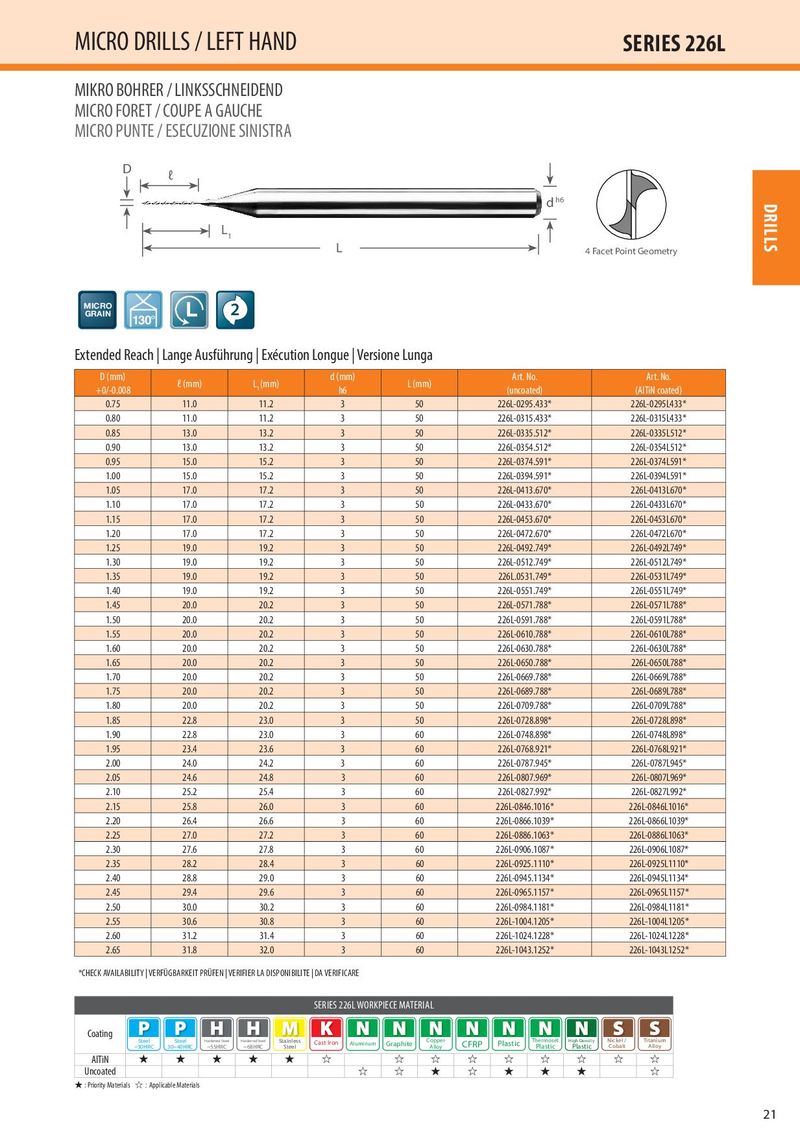

MIKRO BOHRER / LINKSSCHNEIDEND
MICRO FORET / COUPE A GAUCHE
MICRO PUNTE / ESECUZIONE SINISTRA
D ℓ
L
1
L
MICRO L 2
GRAIN 130° Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
d h6
4 Facet Point Geometry
| D (mm) +0/-0.008 | ℓ (mm) | L1(mm) | d (mm) h6 | L (mm) | Art. No. (uncoated) | Art. No. (AlTiN coated) |
| 0.75 | 11.0 | 11.2 | 3 | 50 | 226L-0295.433 | 226L-0295L433 |
| 0.80 | 11.0 | 11.2 | 3 | 50 | 226L-0315.433 | 226L-0315L433 |
| 0.85 | 13.0 | 13.2 | 3 | 50 | 226L-0335.512 | 226L-0335L512 |
| 0.90 | 13.0 | 13.2 | 3 | 50 | 226L-0354.512 | 226L-0354L512 |
| 0.95 | 15.0 | 15.2 | 3 | 50 | 226L-0374.591 | 226L-0374L591 |
| 1.00 | 15.0 | 15.2 | 3 | 50 | 226L-0394.591 | 226L-0394L591 |
| 1.05 | 17.0 | 17.2 | 3 | 50 | 226L-0413.670 | 226L-0413L670 |
| 1.10 | 17.0 | 17.2 | 3 | 50 | 226L-0433.670 | 226L-0433L670 |
| 1.15 | 17.0 | 17.2 | 3 | 50 | 226L-0453.670 | 226L-0453L670 |
| 1.20 | 17.0 | 17.2 | 3 | 50 | 226L-0472.670 | 226L-0472L670 |
| 1.25 | 19.0 | 19.2 | 3 | 50 | 226L-0492.749 | 226L-0492L749 |
| 1.30 | 19.0 | 19.2 | 3 | 50 | 226L-0512.749 | 226L-0512L749 |
| 1.35 | 19.0 | 19.2 | 3 | 50 | 226L.0531.749 | 226L-0531L749 |
| 1.40 | 19.0 | 19.2 | 3 | 50 | 226L-0551.749 | 226L-0551L749 |
| 1.45 | 20.0 | 20.2 | 3 | 50 | 226L-0571.788 | 226L-0571L788 |
| 1.50 | 20.0 | 20.2 | 3 | 50 | 226L-0591.788 | 226L-0591L788 |
| 1.55 | 20.0 | 20.2 | 3 | 50 | 226L-0610.788 | 226L-0610L788 |
| 1.60 | 20.0 | 20.2 | 3 | 50 | 226L-0630.788 | 226L-0630L788 |
| 1.65 | 20.0 | 20.2 | 3 | 50 | 226L-0650.788 | 226L-0650L788 |
| 1.70 | 20.0 | 20.2 | 3 | 50 | 226L-0669.788 | 226L-0669L788 |
| 1.75 | 20.0 | 20.2 | 3 | 50 | 226L-0689.788 | 226L-0689L788 |
| 1.80 | 20.0 | 20.2 | 3 | 50 | 226L-0709.788 | 226L-0709L788 |
| 1.85 | 22.8 | 23.0 | 3 | 50 | 226L-0728.898 | 226L-0728L898 |
| 1.90 | 22.8 | 23.0 | 3 | 60 | 226L-0748.898 | 226L-0748L898 |
| 1.95 | 23.4 | 23.6 | 3 | 60 | 226L-0768.921 | 226L-0768L921 |
| 2.00 | 24.0 | 24.2 | 3 | 60 | 226L-0787.945 | 226L-0787L945 |
| 2.05 | 24.6 | 24.8 | 3 | 60 | 226L-0807.969 | 226L-0807L969 |
| 2.10 | 25.2 | 25.4 | 3 | 60 | 226L-0827.992 | 226L-0827L992 |
| 2.15 | 25.8 | 26.0 | 3 | 60 | 226L-0846.1016 | 226L-0846L1016 |
| 2.20 | 26.4 | 26.6 | 3 | 60 | 226L-0866.1039 | 226L-0866L1039 |
| 2.25 | 27.0 | 27.2 | 3 | 60 | 226L-0886.1063 | 226L-0886L1063 |
| 2.30 | 27.6 | 27.8 | 3 | 60 | 226L-0906.1087 | 226L-0906L1087 |
| 2.35 | 28.2 | 28.4 | 3 | 60 | 226L-0925.1110 | 226L-0925L1110 |
| 2.40 | 28.8 | 29.0 | 3 | 60 | 226L-0945.1134 | 226L-0945L1134 |
| 2.45 | 29.4 | 29.6 | 3 | 60 | 226L-0965.1157 | 226L-0965L1157 |
| 2.50 | 30.0 | 30.2 | 3 | 60 | 226L-0984.1181 | 226L-0984L1181 |
| 2.55 | 30.6 | 30.8 | 3 | 60 | 226L-1004.1205 | 226L-1004L1205 |
| 2.60 | 31.2 | 31.4 | 3 | 60 | 226L-1024.1228 | 226L-1024L1228 |
| 2.65 | 31.8 | 32.0 | 3 | 60 | 226L-1043.1252 | 226L-1043L1252 |
Coating
| Steel | Steel | Hardened Steel | Hardened Steel | Stainless | Cast Iron | Graphite | Copper | CFRP | Plastic | Thermoset | High Density | Nickel / | Titanium | ||
| ~30HRC | 30~40HRC | ~55HRC | ~68HRC | Steel | Aluminum | Alloy | Plastic | Plastic | Cobalt | Alloy | |||||
| AlTiN | ★ | ★ | ★ | ★ | ★ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ |
