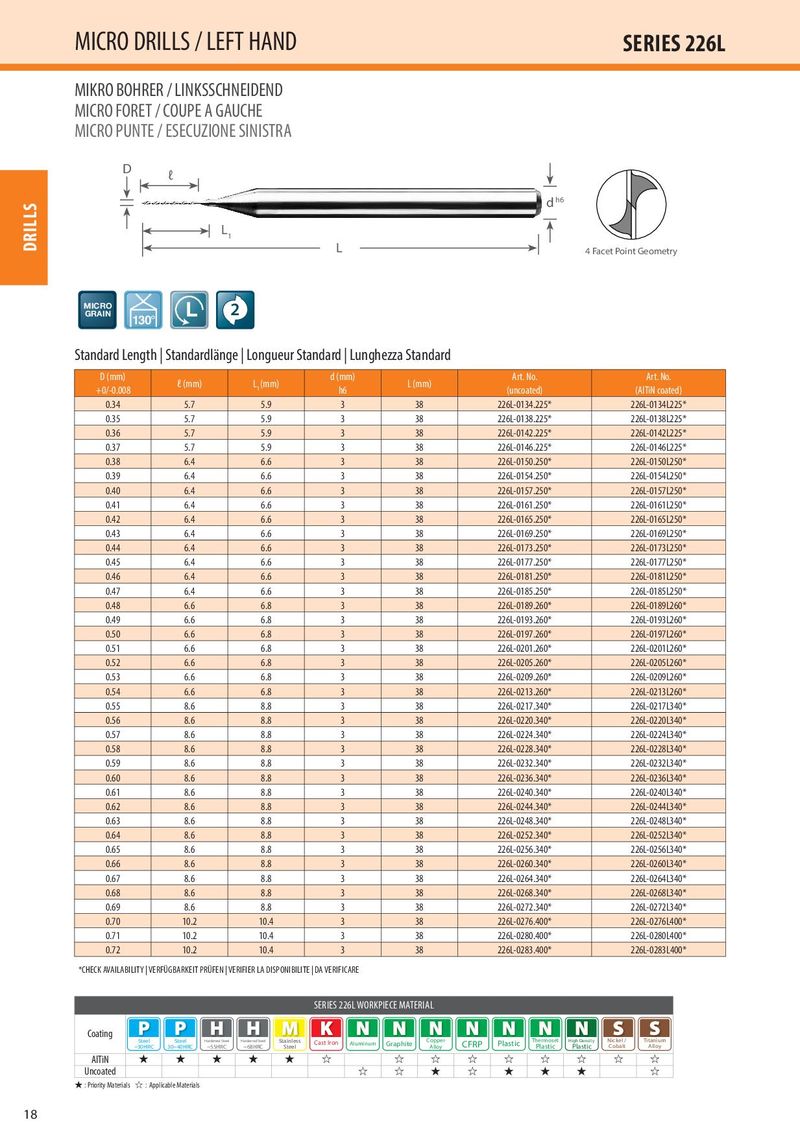

MIKRO BOHRER / LINKSSCHNEIDEND
MICRO FORET / COUPE A GAUCHE
MICRO PUNTE / ESECUZIONE SINISTRA
D ℓ
L
1
L
MICRO L 2
GRAIN 130° Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
d h6
4 Facet Point Geometry
| D (mm) +0/-0.008 | ℓ (mm) | L1(mm) | d (mm) h6 | L (mm) | Art. No. (uncoated) | Art. No. (AlTiN coated) |
| 0.34 | 5.7 | 5.9 | 3 | 38 | 226L-0134.225 | 226L-0134L225 |
| 0.35 | 5.7 | 5.9 | 3 | 38 | 226L-0138.225 | 226L-0138L225 |
| 0.36 | 5.7 | 5.9 | 3 | 38 | 226L-0142.225 | 226L-0142L225 |
| 0.37 | 5.7 | 5.9 | 3 | 38 | 226L-0146.225 | 226L-0146L225 |
| 0.38 | 6.4 | 6.6 | 3 | 38 | 226L-0150.250 | 226L-0150L250 |
| 0.39 | 6.4 | 6.6 | 3 | 38 | 226L-0154.250 | 226L-0154L250 |
| 0.40 | 6.4 | 6.6 | 3 | 38 | 226L-0157.250 | 226L-0157L250 |
| 0.41 | 6.4 | 6.6 | 3 | 38 | 226L-0161.250 | 226L-0161L250 |
| 0.42 | 6.4 | 6.6 | 3 | 38 | 226L-0165.250 | 226L-0165L250 |
| 0.43 | 6.4 | 6.6 | 3 | 38 | 226L-0169.250 | 226L-0169L250 |
| 0.44 | 6.4 | 6.6 | 3 | 38 | 226L-0173.250 | 226L-0173L250 |
| 0.45 | 6.4 | 6.6 | 3 | 38 | 226L-0177.250 | 226L-0177L250 |
| 0.46 | 6.4 | 6.6 | 3 | 38 | 226L-0181.250 | 226L-0181L250 |
| 0.47 | 6.4 | 6.6 | 3 | 38 | 226L-0185.250 | 226L-0185L250 |
| 0.48 | 6.6 | 6.8 | 3 | 38 | 226L-0189.260 | 226L-0189L260 |
| 0.49 | 6.6 | 6.8 | 3 | 38 | 226L-0193.260 | 226L-0193L260 |
| 0.50 | 6.6 | 6.8 | 3 | 38 | 226L-0197.260 | 226L-0197L260 |
| 0.51 | 6.6 | 6.8 | 3 | 38 | 226L-0201.260 | 226L-0201L260 |
| 0.52 | 6.6 | 6.8 | 3 | 38 | 226L-0205.260 | 226L-0205L260 |
| 0.53 | 6.6 | 6.8 | 3 | 38 | 226L-0209.260 | 226L-0209L260 |
| 0.54 | 6.6 | 6.8 | 3 | 38 | 226L-0213.260 | 226L-0213L260 |
| 0.55 | 8.6 | 8.8 | 3 | 38 | 226L-0217.340 | 226L-0217L340 |
| 0.56 | 8.6 | 8.8 | 3 | 38 | 226L-0220.340 | 226L-0220L340 |
| 0.57 | 8.6 | 8.8 | 3 | 38 | 226L-0224.340 | 226L-0224L340 |
| 0.58 | 8.6 | 8.8 | 3 | 38 | 226L-0228.340 | 226L-0228L340 |
| 0.59 | 8.6 | 8.8 | 3 | 38 | 226L-0232.340 | 226L-0232L340 |
| 0.60 | 8.6 | 8.8 | 3 | 38 | 226L-0236.340 | 226L-0236L340 |
| 0.61 | 8.6 | 8.8 | 3 | 38 | 226L-0240.340 | 226L-0240L340 |
| 0.62 | 8.6 | 8.8 | 3 | 38 | 226L-0244.340 | 226L-0244L340 |
| 0.63 | 8.6 | 8.8 | 3 | 38 | 226L-0248.340 | 226L-0248L340 |
| 0.64 | 8.6 | 8.8 | 3 | 38 | 226L-0252.340 | 226L-0252L340 |
| 0.65 | 8.6 | 8.8 | 3 | 38 | 226L-0256.340 | 226L-0256L340 |
| 0.66 | 8.6 | 8.8 | 3 | 38 | 226L-0260.340 | 226L-0260L340 |
| 0.67 | 8.6 | 8.8 | 3 | 38 | 226L-0264.340 | 226L-0264L340 |
| 0.68 | 8.6 | 8.8 | 3 | 38 | 226L-0268.340 | 226L-0268L340 |
| 0.69 | 8.6 | 8.8 | 3 | 38 | 226L-0272.340 | 226L-0272L340 |
| 0.70 | 10.2 | 10.4 | 3 | 38 | 226L-0276.400 | 226L-0276L400 |
| 0.71 | 10.2 | 10.4 | 3 | 38 | 226L-0280.400 | 226L-0280L400 |
| 0.72 | 10.2 | 10.4 | 3 | 38 | 226L-0283.400 | 226L-0283L400 |
Coating
| Steel | Steel | Hardened Steel | Hardened Steel | Stainless | Cast Iron | Graphite | Copper | CFRP | Plastic | Thermoset | High Density | Nickel / | Titanium | ||
| ~30HRC | 30~40HRC | ~55HRC | ~68HRC | Steel | Aluminum | Alloy | Plastic | Plastic | Cobalt | Alloy | |||||
| AlTiN | ★ | ★ | ★ | ★ | ★ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ |
| Coating | |||||||||||||||
| ~30HRC Steel | 30~40HRC Steel | ~55HRC Hardened Steel | ~68HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminum | Graphite | Copper Alloy | CFRP | Plastic | Thermoset Plastic | Plastic High Density | Nickel / Cobalt | Titanium Alloy | |
| AlTiN | ★ | ★ | ★ | ★ | ★ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | |
| Uncoated | ☆ | ☆ | ★ | ☆ | ★ | ★ | ★ | ☆ |
