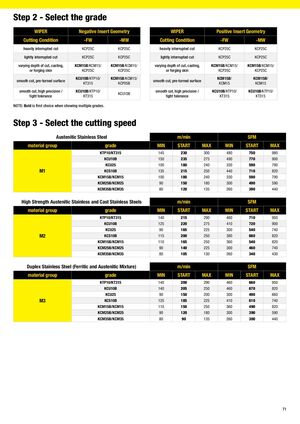

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 71

Step 2 - Select the grade WIPER Negative Insert Geometry WIPER Positive Insert Geometry Cutting Condition -FW -MW Cutting Condition -FW -MW heavily interrupted cut KCP25C KCP25C heavily interrupted cut KCP25C KCP25C lightly interrupted cut KCP25C KCP25C lightly interrupted cut KCP25C KCP25C varying depth of cut, casting, KCM15B/KCM15/ KCM15B/KCM15/ varying depth of cut, casting, KCM15B/KCM15/ KCM15B/KCM15/ or forging skin KCP25C KCP25C or forging skin KCP25C KCP25C KCU10B/KTP10/ KCM15B/KCM15/ KCM15B/ KCM15B/ smooth cut, pre-turned surface smooth cut, pre-turned surface KT315 KCP05B KCM15 KCM15 smooth cut, high precision / KCU10B/KTP10/ smooth cut, high precision / KCU10B/KTP10/ KCU10B/KTP10/ KCU10B tight tolerance KT315 tight tolerance KT315 KT315 NOTE: Bold is first choice when showing multiple grades. Step 3 - Select the cutting speed Austenitic Stainless Steel m/min SFM material group grade MIN START MAX MIN START MAX KTP10/KT315 145 230 300 480 750 980 KCU10B 150 235 275 490 770 900 KCU25 100 180 240 330 590 790 M1 KCS10B 135 215 250 440 710 820 KCM15B/KCM15 100 180 240 330 590 790 KCM25B/KCM25 90 150 180 300 490 590 KCM35B/KCM35 80 120 135 260 390 440 High Strength Austenitic Stainless and Cast Stainless Steels m/min SFM material group grade MIN START MAX MIN START MAX KTP10/KT315 140 215 290 460 710 950 KCU10B 125 220 275 410 720 900 KCU25 90 165 225 300 540 740 M2 KCS10B 115 200 250 380 660 820 KCM15B/KCM15 110 165 250 360 540 820 KCM25B/KCM25 90 140 225 300 460 740 KCM35B/KCM35 80 105 130 260 340 430 Duplex Stainless Steel (Ferritic and Austenitic Mixture) m/min SFM material group grade MIN START MAX MIN START MAX KTP10/KT315 140 200 290 460 660 950 KCU10B 140 205 250 460 670 820 KCU25 90 150 200 300 490 660 M3 KCS10B 125 185 225 410 610 740 KCM15B/KCM15 110 150 250 360 490 820 KCM25B/KCM25 90 120 180 300 390 590 KCM35B/KCM35 80 90 135 260 300 440 71
