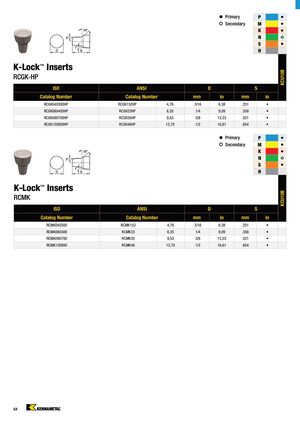

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 64

• Primary P • • Secondary M • K • N • S • H K-Lock™ Inserts KCU10B RCGK-HP ISO ANSI D S Catalog Number Catalog Number mm in mm in RCGK040300HP RCGK152HP 4,76 3/16 6,38 .251 • RCGK060400HP RCGK23HP 6,35 1/4 9,09 .358 • RCGK090700HP RCGK35HP 9,53 3/8 13,23 .521 • RCGK120800HP RCGK46HP 12,70 1/2 16,61 .654 • • Primary P • • Secondary M • K • N • S • H K-Lock™ Inserts KCU10B RCMK ISO ANSI D S Catalog Number Catalog Number mm in mm in RCMK040300 RCMK152 4,76 3/16 6,38 .251 • RCMK060400 RCMK23 6,35 1/4 9,09 .358 • RCMK090700 RCMK35 9,53 3/8 13,23 .521 • RCMK120800 RCMK46 12,70 1/2 16,61 .654 • 64
