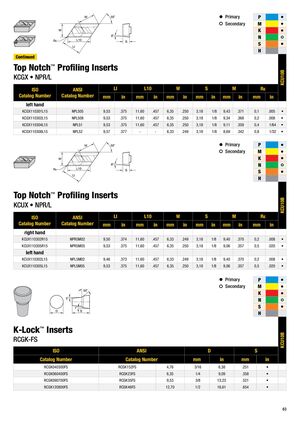

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 63

• Primary P • • Secondary M • K • N • S • H Continued Top Notch™ Profiling Inserts KCU10B KCGX • NPR/L ISO ANSI LI L10 W S M Rε Catalog Number Catalog Number mm in mm in mm in mm in mm in mm in left hand KCGX110301L15 NPL505 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 9,43 .371 0,1 .005 • KCGX110302L15 NPL508 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 9,34 .368 0,2 .008 • KCGX110304L15 NPL51 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 9,11 .359 0,4 1/64 • KCGX110308L15 NPL52 9,57 .377 - - 6,33 .249 3,18 1/8 8,69 .342 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Top Notch™ Profiling Inserts KCU10B KCUX • NPR/L ISO ANSI LI L10 W S M Rε Catalog Number Catalog Number mm in mm in mm in mm in mm in mm in right hand KCUX110302R15 NPR5M02 9,50 .374 11,60 .457 6,33 .249 3,18 1/8 9,40 .370 0,2 .008 • KCUX110305R15 NPR5M05 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 9,06 .357 0,5 .020 • left hand KCUX110302L15 NPL5M02 9,46 .373 11,60 .457 6,33 .249 3,18 1/8 9,40 .370 0,2 .008 • KCUX110305L15 NPL5M05 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 9,06 .357 0,5 .020 • • Primary P • • Secondary M • K • N • S • H K-Lock™ Inserts KCU10B RCGK-FS ISO ANSI D S Catalog Number Catalog Number mm in mm in RCGK040300FS RCGK152FS 4,76 3/16 6,38 .251 • RCGK060400FS RCGK23FS 6,35 1/4 9,09 .358 • RCGK090700FS RCGK35FS 9,53 3/8 13,23 .521 • RCGK120800FS RCGK46FS 12,70 1/2 16,61 .654 • 63
