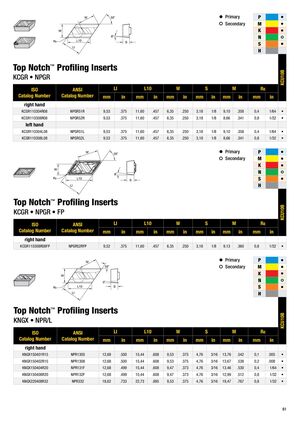

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 61

• Primary P • • Secondary M • K • N • S • H Top Notch™ Profiling Inserts KCU10B KCGR • NPGR ISO ANSI LI L10 W S M Rε Catalog Number Catalog Number mm in mm in mm in mm in mm in mm in right hand KCGR110304R08 NPGR51R 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 9,10 .358 0,4 1/64 • KCGR110308R08 NPGR52R 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 8,66 .341 0,8 1/32 • left hand KCGR110304L08 NPGR51L 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 9,10 .358 0,4 1/64 • KCGR110308L08 NPGR52L 9,53 .375 11,60 .457 6,35 .250 3,18 1/8 8,66 .341 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Top Notch™ Profiling Inserts KCU10B KCGR • NPGR • FP ISO ANSI LI L10 W S M Rε Catalog Number Catalog Number mm in mm in mm in mm in mm in mm in right hand KCGR110308R08FP NPGR52RFP 9,52 .375 11,60 .457 6,35 .250 3,18 1/8 9,13 .360 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Top Notch™ Profiling Inserts KCU10B KNGX • NPR/L ISO ANSI LI L10 W S M Rε Catalog Number Catalog Number mm in mm in mm in mm in mm in mm in right hand KNGX150401R15 NPR1305 12,68 .500 15,44 .608 9,53 .375 4,76 3/16 13,76 .542 0,1 .005 • KNGX150402R15 NPR1308 12,68 .500 15,44 .608 9,53 .375 4,76 3/16 13,67 .538 0,2 .008 • KNGX150404R20 NPR131F 12,68 .499 15,44 .608 9,47 .373 4,76 3/16 13,46 .530 0,4 1/64 • KNGX150408R20 NPR132F 12,68 .499 15,44 .608 9,47 .373 4,76 3/16 12,99 .512 0,8 1/32 • KNGX220408R32 NPR332 18,62 .733 22,73 .895 9,53 .375 4,76 3/16 19,47 .767 0,8 1/32 • 61
