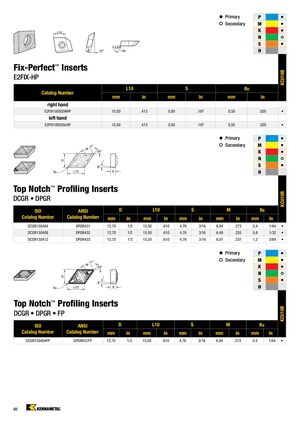

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 60

• Primary P • • Secondary M • K • N • S • H Fix-Perfect™ Inserts KCU10B E2FIX-HP L10 S Rε Catalog Number mm in mm in mm in right hand E2FIX100505RHP 10,50 .413 5,00 .197 0,50 .020 • left hand E2FIX100505LHP 10,50 .413 5,00 .197 0,50 .020 • • Primary P • • Secondary M • K • N • S • H Top Notch™ Profiling Inserts KCU10B DCGR • DPGR ISO ANSI D L10 S M Rε Catalog Number Catalog Number mm in mm in mm in mm in mm in DCGR150404 DPGR431 12,70 1/2 15,50 .610 4,76 3/16 6,94 .273 0,4 1/64 • DCGR150408 DPGR432 12,70 1/2 15,50 .610 4,76 3/16 6,48 .255 0,8 1/32 • DCGR150412 DPGR433 12,70 1/2 15,50 .610 4,76 3/16 6,01 .237 1,2 3/64 • • Primary P • • Secondary M • K • N • S • H Top Notch™ Profiling Inserts KCU10B DCGR • DPGR • FP ISO ANSI D L10 S M Rε Catalog Number Catalog Number mm in mm in mm in mm in mm in DCGR150404FP DPGR431FP 12,70 1/2 15,50 .610 4,76 3/16 6,94 .273 0,4 1/64 • 60
