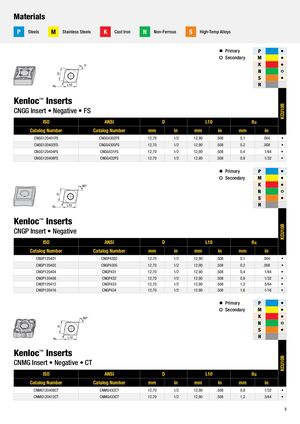

Materials P Steels M Stainless Steels K Cast Iron N Non-Ferrous S High-Temp Alloys • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B CNGG Insert • Negative • FS ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CNGG120401FS CNGG4302FS 12,70 1/2 12,90 .508 0,1 .004 • CNGG120402FS CNGG4305FS 12,70 1/2 12,90 .508 0,2 .008 • CNGG120404FS CNGG431FS 12,70 1/2 12,90 .508 0,4 1/64 • CNGG120408FS CNGG432FS 12,70 1/2 12,90 .508 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B CNGP Insert • Negative ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CNGP120401 CNGP4302 12,70 1/2 12,90 .508 0,1 .004 • CNGP120402 CNGP4305 12,70 1/2 12,90 .508 0,2 .008 • CNGP120404 CNGP431 12,70 1/2 12,90 .508 0,4 1/64 • CNGP120408 CNGP432 12,70 1/2 12,90 .508 0,8 1/32 • CNGP120412 CNGP433 12,70 1/2 12,90 .508 1,2 3/64 • CNGP120416 CNGP434 12,70 1/2 12,90 .508 1,6 1/16 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B CNMG Insert • Negative • CT ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CNMG120408CT CNMG432CT 12,70 1/2 12,90 .508 0,8 1/32 • CNMG120412CT CNMG433CT 12,70 1/2 12,90 .508 1,2 3/64 • 3
