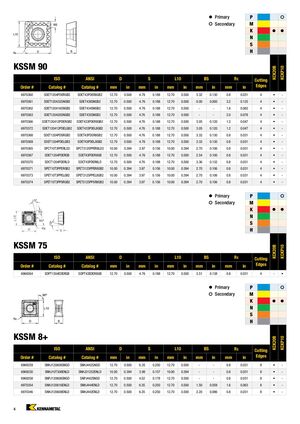

Сменные фрезерные пластины сплавов KCK20B и KCKP10 Kennametal 2024 - страница 4

• Primary P • • Secondary M K • • N S H KSSM 90 KCK20B KCKP10 ISO ANSI D S L10 BS Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in mm in Edges 6970360 SDET1204PDERGB2 SDET43PDER8GB2 12.70 0.500 4.76 0.188 12.70 0.500 3.32 0.130 0.8 0.031 4 • - 6970361 SDET120432SNGB2 SDET438SNGB2 12.70 0.500 4.76 0.188 12.70 0.500 0.00 0.000 3.2 0.125 4 • - 6970362 SDET120416SNGB2 SDET434SNGB2 12.70 0.500 4.76 0.188 12.70 0.500 - - 1.6 0.062 4 • - 6970363 SDET120420SNGB2 SDET435SNGB2 12.70 0.500 4.76 0.188 12.70 0.500 - - 2.0 0.078 4 • - 6970366 SDET120412PDERGB2 SDET433PDER8GB2 12.70 0.500 4.76 0.188 12.70 0.500 3.05 0.120 1.2 0.047 4 • - 6970372 SDET120412PDELGB2 SDET433PDEL8GB2 12.70 0.500 4.76 0.188 12.70 0.500 3.05 0.120 1.2 0.047 4 • - 6970368 SDET1204PDSRGB2 SDET43PDSR8GB2 12.70 0.500 4.76 0.188 12.70 0.500 3.32 0.130 0.8 0.031 4 • - 6970369 SDET1204PDELGB2 SDET43PDEL8GB2 12.70 0.500 4.76 0.188 12.70 0.500 3.32 0.130 0.8 0.031 4 • - 6970365 SPCT10T3PPERLD2 SPCT3125PPER8LD2 10.00 0.394 3.97 0.156 10.00 0.394 2.70 0.106 0.8 0.031 4 • - 6970367 SDET1204PDERGB SDET43PDER8GB 12.70 0.500 4.76 0.188 12.70 0.500 2.54 0.100 0.8 0.031 4 • - 6970370 SDCT1204PDERLD SDCT43PDER8LD 12.70 0.500 4.76 0.188 12.70 0.500 3.36 0.132 0.8 0.031 4 • - 6970371 SPET10T3PPERGB2 SPET3125PPER8GB2 10.00 0.394 3.97 0.156 10.00 0.394 2.70 0.106 0.8 0.031 4 • - 6970373 SPET10T3PPELGB2 SPET3125PPEL8GB2 10.00 0.394 3.97 0.156 10.00 0.394 2.70 0.106 0.8 0.031 4 • - 6970374 SPET10T3PPSRGB2 SPET3125PPSR8GB2 10.00 0.394 3.97 0.156 10.00 0.394 2.70 0.106 0.8 0.031 4 • - • Primary P • • Secondary M K • • N S H KSSM 75 KCK20B KCKP10 ISO ANSI D S L10 BS Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in mm in Edges 6969264 SDPT1204EDERGB SDPT43EDER8GB 12.70 0.500 4.76 0.188 12.70 0.500 3.51 0.138 0.8 0.031 4 - • • Primary P • • Secondary M K • • N S H KSSM 8+ KCK20B KCKP10 ISO ANSI D S L10 BS Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in mm in Edges 6969259 SNHJ120608SNGD SNHJ442SNGD 12.70 0.500 6.35 0.250 12.70 0.500 - - 0.8 0.031 8 • - 6969230 SNHJ10T308ENLD SNHJ31252ENLD 10.00 0.394 3.98 0.157 10.00 0.394 - - 0.8 0.031 8 • - 6969258 SNPJ120608SNGD SNPJ442SNGD 12.70 0.500 4.52 0.178 12.70 0.500 - - 0.8 0.031 8 • - 6970354 SNHJ120616ENLD SNHJ444ENLD 12.70 0.500 6.35 0.250 12.70 0.500 1.50 0.059 1.6 0.063 8 • - 6970346 SNHJ120608ENLD SNHJ442ENLD 12.70 0.500 6.35 0.250 12.70 0.500 2.20 0.086 0.8 0.031 8 • - 4
