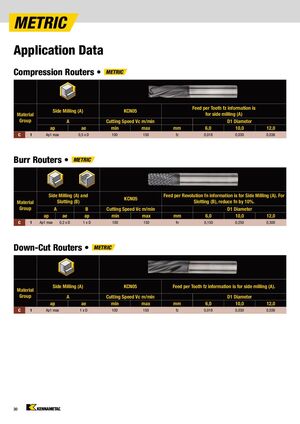

METRIC Application Data Compression Routers • METRIC Feed per Tooth fz information is Side Milling (A) KCN05 Material for side milling (A) Group A Cutting Speed Vc m/min D1 Diameter ap ae min max mm 6,0 10,0 12,0 C 1 Ap1 max 0,5 x D 100 150 fz 0,018 0,030 0,036 Burr Routers • METRIC Side Milling (A) and Feed per Revolution fn information is for Side Milling (A). For KCN05 Material Slotting (B) Slotting (B), reduce fn by 10%. Group A B Cutting Speed Vc m/min D1 Diameter ap ae ap min max mm 6,0 10,0 12,0 C 1 Ap1 max 0,2 x D 1xD 100 150 fn 0,150 0,250 0,300 Down-Cut Routers • METRIC Side Milling (A) KCN05 Feed per Tooth fz information is for side milling (A). Material Group A Cutting Speed Vc m/min D1 Diameter ap ae min max mm 6,0 10,0 12,0 C 1 Ap1 max 1xD 100 150 fz 0,018 0,030 0,036 30
