Решения Kennametal для обработки композитов 2024 - страница 29

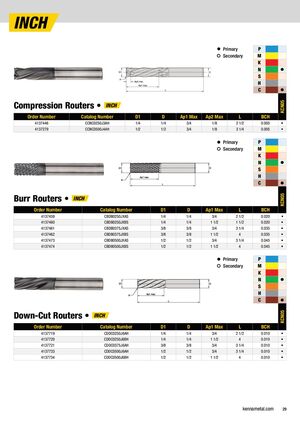

INCH • Primary P • Secondary M K N • S H C • Compression Routers • INCH KCN05 Order Number Catalog Number D1 D Ap1 Max Ap2 Max L BCH 4137446 CCNC0250J3AH 1/4 1/4 3/4 1/8 2 1/2 0.005 • 4137279 CCNC0500J4AH 1/2 1/2 3/4 1/8 3 1/4 0.005 • • Primary P • Secondary M K N • S H C • Burr Routers • INCH KCN05 Order Number Catalog Number D1 D Ap1 Max L BCH 4137459 CBDB0250JXAS 1/4 1/4 3/4 2 1/2 0.020 • 4137460 CBDB0250JXBS 1/4 1/4 1 1/2 1 1/2 0.020 • 4137461 CBDB0375JXAS 3/8 3/8 3/4 3 1/4 0.035 • 4137462 CBDB0375JXBS 3/8 3/8 1 1/2 4 0.035 • 4137473 CBDB0500JXAS 1/2 1/2 3/4 3 1/4 0.045 • 4137474 CBDB0500JXBS 1/2 1/2 1 1/2 4 0.045 • • Primary P • Secondary M K N • S H C • Down-Cut Routers • INCH KCN05 Order Number Catalog Number D1 D Ap1 Max L BCH 4137719 CDDC0250J6AH 1/4 1/4 3/4 2 1/2 0.010 • 4137720 CDDC0250J6BH 1/4 1/4 1 1/2 4 0.010 • 4137721 CDDC0375J6AH 3/8 3/8 3/4 3 1/4 0.010 • 4137733 CDDC0500J6AH 1/2 1/2 3/4 3 1/4 0.010 • 4137734 CDDC0500J6BH 1/2 1/2 1 1/2 4 0.010 • kennametal.com 29
