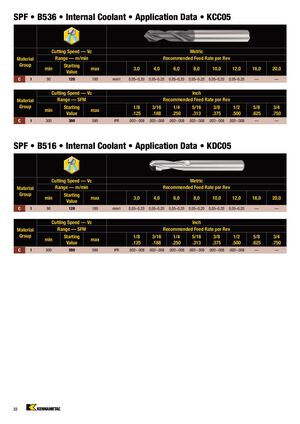

SPF • B536 • Internal Coolant • Application Data • KCC05 Cutting Speed — Vc Metric Material Range — m/min Recommended Feed Rate per Rev Group Starting min max 3,0 4,0 6,0 8,0 10,0 12,0 16,0 20,0 Value C 1 90 120 180 mm/r 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 — — Cutting Speed — Vc Inch Material Range — SFM Recommended Feed Rate per Rev Group Starting 1/8 3/16 1/4 5/16 3/8 1/2 5/8 3/4 min max Value .125 .188 .250 .313 .375 .500 .625 .750 C 1 300 390 590 IPR .002–.008 .002–.008 .002–.008 .002–.008 .002–.008 .002–.008 — — SPF • B516 • Internal Coolant • Application Data • KDC05 Cutting Speed — Vc Metric Material Range — m/min Recommended Feed Rate per Rev Group Starting min max 3,0 4,0 6,0 8,0 10,0 12,0 16,0 20,0 Value C 1 90 120 180 mm/r 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 — — Cutting Speed — Vc Inch Material Range — SFM Recommended Feed Rate per Rev Group Starting 1/8 3/16 1/4 5/16 3/8 1/2 5/8 3/4 min max Value .125 .188 .250 .313 .375 .500 .625 .750 C 1 300 390 590 IPR .002–.008 .002–.008 .002–.008 .002–.008 .002–.008 .002–.008 — — 22
