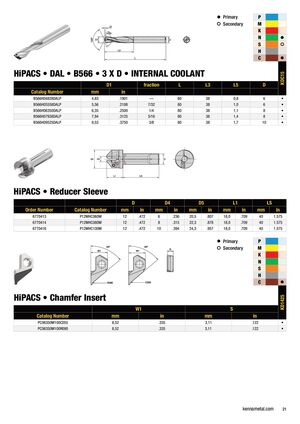

• Primary P • Secondary M K N • S • H C • HiPACS • DAL • B566 • 3 X D • INTERNAL COOLANT KDC15 D1 fraction L L3 L5 D Catalog Number mm in B566H04828DALP 4,83 .1901 — 80 38 0,8 6 • B566H05558DALP 5,56 .2188 7/32 80 38 1,0 6 • B566H06350DALP 6,35 .2500 1/4 80 38 1,1 8 • B566H07938DALP 7,94 .3125 5/16 80 38 1,4 8 • B566H09525DALP 9,53 .3750 3/8 80 38 1,7 10 • HiPACS • Reducer Sleeve D D4 D5 L1 LS Order Number Catalog Number mm in mm in mm in mm in mm in 6770413 P12MHC060M 12 .472 6 .236 20,5 .807 18,0 .709 40 1.575 6770414 P12MHC080M 12 .472 8 .315 22,3 .878 18,0 .709 40 1.575 6770416 P12MHC100M 12 .472 10 .394 24,3 .957 18,0 .709 40 1.575 • Primary P • Secondary M K N S H C • HiPACS • Chamfer Insert KD1425 W1 S Catalog Number mm in mm in PC06350M100C055 8,52 .335 3,11 .122 • PC06350M100R090 8,52 .335 3,11 .122 • kennametal.com 21
