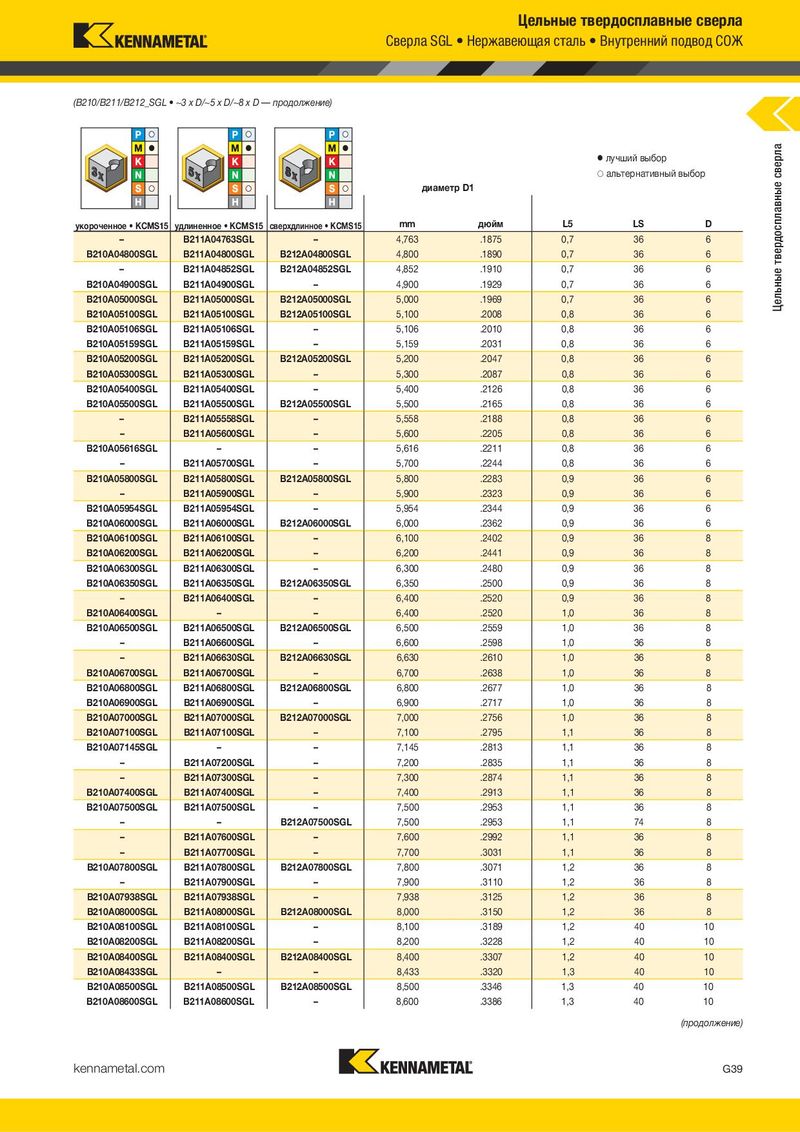

Основной каталог Kennametal вращающиеся инструменты 2018 - страница 73
Навигация
Каталог Kennametal инновации 2021.1
Монолитные концевые фрезы Kennametal 2024
Сменные фрезерные пластины сплавов KCK20B и KCKP10 Kennametal 2024
Оптимальный выбор Kennametal 2025 - 2026
Пластины с геометрией FV для токарной обработки Kennametal 2023
(B210/B211/B212_SGL • ~3 x D/~5 x D/~8 x D — продолжение)
лучший выбор альтернативный выбор диаметр D1
| укороченное • KCMS15 удлиненное • KCMS15 сверхдлинное • KCMS15 | mm | дюйм | L5 | LS | D | ||||
| – | B211A04763SGL | – | 4,763 | .1875 | 0,7 | 36 | 6 | ||
| B210A04800SGL | B211A04800SGL | B212A04800SGL | 4,800 | .1890 | 0,7 | 36 | 6 | ||
| – | B211A04852SGL | B212A04852SGL | 4,852 | .1910 | 0,7 | 36 | 6 | ||
| B210A04900SGL | B211A04900SGL | – | 4,900 | .1929 | 0,7 | 36 | 6 | ||
| Значения L, L3 и L4 max приведены в таблице размеров B210A05000SGL | B211A05000SGL | B212A05000SGL | 5,000 | .1969 | 0,7 | 36 | 6 |
| �лучший выбор �альтернативный | выбор | ||||||
| диаме | тр D1 | ||||||
| укороченное • KCMS15 | удлиненное • KCMS15 | сверхдлинное • KCMS15 | mm | дюйм | L5 | LS | D |
| – | B211A04763SGL | – | 4,763 | .1875 | 0,7 | 36 | 6 |
| B210A04800SGL | B211A04800SGL | B212A04800SGL | 4,800 | .1890 | 0,7 | 36 | 6 |
| – | B211A04852SGL | B212A04852SGL | 4,852 | .1910 | 0,7 | 36 | 6 |
| B210A04900SGL | B211A04900SGL | – | 4,900 | .1929 | 0,7 | 36 | 6 |
| B210A05000SGL | B211A05000SGL | B212A05000SGL | 5,000 | .1969 | 0,7 | 36 | 6 |
| B210A05100SGL | B211A05100SGL | B212A05100SGL | 5,100 | .2008 | 0,8 | 36 | 6 |
| B210A05106SGL | B211A05106SGL | – | 5,106 | .2010 | 0,8 | 36 | 6 |
| B210A05159SGL | B211A05159SGL | – | 5,159 | .2031 | 0,8 | 36 | 6 |
| B210A05200SGL | B211A05200SGL | B212A05200SGL | 5,200 | .2047 | 0,8 | 36 | 6 |
| B210A05300SGL | B211A05300SGL | – | 5,300 | .2087 | 0,8 | 36 | 6 |
| B210A05400SGL | B211A05400SGL | – | 5,400 | .2126 | 0,8 | 36 | 6 |
| B210A05500SGL | B211A05500SGL | B212A05500SGL | 5,500 | .2165 | 0,8 | 36 | 6 |
| – | B211A05558SGL | – | 5,558 | .2188 | 0,8 | 36 | 6 |
| – | B211A05600SGL | – | 5,600 | .2205 | 0,8 | 36 | 6 |
| B210A05616SGL | – | – | 5,616 | .2211 | 0,8 | 36 | 6 |
| – | B211A05700SGL | – | 5,700 | .2244 | 0,8 | 36 | 6 |
| B210A05800SGL | B211A05800SGL | B212A05800SGL | 5,800 | .2283 | 0,9 | 36 | 6 |
| – | B211A05900SGL | – | 5,900 | .2323 | 0,9 | 36 | 6 |
| B210A05954SGL | B211A05954SGL | – | 5,954 | .2344 | 0,9 | 36 | 6 |
| B210A06000SGL | B211A06000SGL | B212A06000SGL | 6,000 | .2362 | 0,9 | 36 | 6 |
| B210A06100SGL | B211A06100SGL | – | 6,100 | .2402 | 0,9 | 36 | 8 |
| B210A06200SGL | B211A06200SGL | – | 6,200 | .2441 | 0,9 | 36 | 8 |
| B210A06300SGL | B211A06300SGL | – | 6,300 | .2480 | 0,9 | 36 | 8 |
| B210A06350SGL | B211A06350SGL | B212A06350SGL | 6,350 | .2500 | 0,9 | 36 | 8 |
| – | B211A06400SGL | – | 6,400 | .2520 | 0,9 | 36 | 8 |
| B210A06400SGL | – | – | 6,400 | .2520 | 1,0 | 36 | 8 |
| B210A06500SGL | B211A06500SGL | B212A06500SGL | 6,500 | .2559 | 1,0 | 36 | 8 |
| – | B211A06600SGL | – | 6,600 | .2598 | 1,0 | 36 | 8 |
| – | B211A06630SGL | B212A06630SGL | 6,630 | .2610 | 1,0 | 36 | 8 |
| B210A06700SGL | B211A06700SGL | – | 6,700 | .2638 | 1,0 | 36 | 8 |
| B210A06800SGL | B211A06800SGL | B212A06800SGL | 6,800 | .2677 | 1,0 | 36 | 8 |
| B210A06900SGL | B211A06900SGL | – | 6,900 | .2717 | 1,0 | 36 | 8 |
| B210A07000SGL | B211A07000SGL | B212A07000SGL | 7,000 | .2756 | 1,0 | 36 | 8 |
| B210A07100SGL | B211A07100SGL | – | 7,100 | .2795 | 1,1 | 36 | 8 |
| B210A07145SGL | – | – | 7,145 | .2813 | 1,1 | 36 | 8 |
| – | B211A07200SGL | – | 7,200 | .2835 | 1,1 | 36 | 8 |
| – | B211A07300SGL | – | 7,300 | .2874 | 1,1 | 36 | 8 |
| B210A07400SGL | B211A07400SGL | – | 7,400 | .2913 | 1,1 | 36 | 8 |
| B210A07500SGL | B211A07500SGL | – | 7,500 | .2953 | 1,1 | 36 | 8 |
| – | – | B212A07500SGL | 7,500 | .2953 | 1,1 | 74 | 8 |
| – | B211A07600SGL | – | 7,600 | .2992 | 1,1 | 36 | 8 |
| – | B211A07700SGL | – | 7,700 | .3031 | 1,1 | 36 | 8 |
| B210A07800SGL | B211A07800SGL | B212A07800SGL | 7,800 | .3071 | 1,2 | 36 | 8 |
| – | B211A07900SGL | – | 7,900 | .3110 | 1,2 | 36 | 8 |
| B210A07938SGL | B211A07938SGL | – | 7,938 | .3125 | 1,2 | 36 | 8 |
| B210A08000SGL | B211A08000SGL | B212A08000SGL | 8,000 | .3150 | 1,2 | 36 | 8 |
| B210A08100SGL | B211A08100SGL | – | 8,100 | .3189 | 1,2 | 40 | 10 |
| B210A08200SGL | B211A08200SGL | – | 8,200 | .3228 | 1,2 | 40 | 10 |
| B210A08400SGL | B211A08400SGL | B212A08400SGL | 8,400 | .3307 | 1,2 | 40 | 10 |
| B210A08433SGL | – | – | 8,433 | .3320 | 1,3 | 40 | 10 |
| B210A08500SGL | B211A08500SGL | B212A08500SGL | 8500 | .3346 | 13 | 40 | 10 |
| B210A08600SGL | B211A08600SGL | – | , 8,600 | .3386 | , 1,3 | 40 | 10 |
