(B210/B211/B212_SGL • ~3 x D/~5 x D/~8 x D — продолжение)
Значения L, L3 и L4 max приведены в таблице размеров Цельные твердосплавные сверла на вкладке.

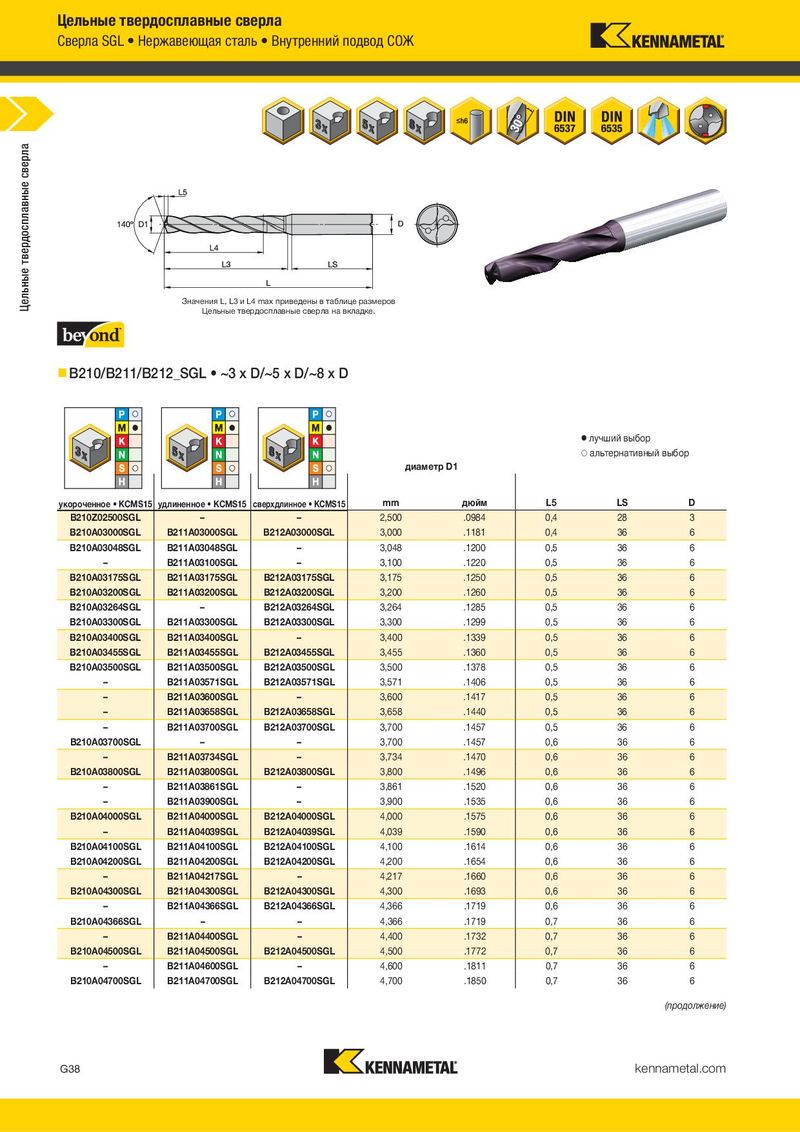

B210/B211/B212_SGL • ~3 x D/~5 x D/~8 x D
лучший выбор альтернативный выбор диаметр D1
| укороченное • KCMS15 удлиненное • KCMS15 сверхдлинное • KCMS15 | mm | дюйм | L5 | LS | D | ||||
| B210Z02500SGL | – | – | 2,500 | .0984 | 0,4 | 28 | 3 | ||
| B210A03000SGL | B211A03000SGL | B212A03000SGL | 3,000 | .1181 | 0,4 | 36 | 6 | ||
| B210A03048SGL | B211A03048SGL | – | 3,048 | .1200 | 0,5 | 36 | 6 | ||
| – | B211A03100SGL | – | 3,100 | .1220 | 0,5 | 36 | 6 | ||
| B210A03175SGL | B211A03175SGL | B212A03175SGL | 3,175 | .1250 | 0,5 | 36 | 6 | ||
| B210A03200SGL | B211A03200SGL | B212A03200SGL | 3,200 | .1260 | 0,5 | 36 | 6 | ||
| B210A03264SGL | – B212A03264SGL | 3,264 | .1285 | 0,5 | 36 | 6 | |||
| B210A03300SGL | B211A03300SGL | B212A03300SGL | 3,300 | .1299 | 0,5 | 36 | 6 | ||
| B210A03400SGL | B211A03400SGL | – | 3,400 | .1339 | 0,5 | 36 | 6 | ||
| B210A03455SGL | B211A03455SGL | B212A03455SGL | 3,455 | .1360 | 0,5 | 36 | 6 | ||
| B210A03500SGL | B211A03500SGL | B212A03500SGL | 3,500 | .1378 | 0,5 | 36 | 6 | ||
| – | B211A03571SGL | B212A03571SGL | 3,571 | .1406 | 0,5 | 36 | 6 | ||
| – | B211A03600SGL | – | 3,600 | .1417 | 0,5 | 36 | 6 | ||
| – | B211A03658SGL | B212A03658SGL | 3,658 | .1440 | 0,5 | 36 | 6 | ||
| – | B211A03700SGL | B212A03700SGL | 3,700 | .1457 | 0,5 | 36 | 6 | ||
| B210A03700SGL | – | – | 3,700 | .1457 | 0,6 | 36 | 6 | ||
| – | B211A03734SGL | – | 3,734 | .1470 | 0,6 | 36 | 6 | ||
| B210A03800SGL | B211A03800SGL | B212A03800SGL | 3,800 | .1496 | 0,6 | 36 | 6 | ||
| – | B211A03861SGL | – | 3,861 | .1520 | 0,6 | 36 | 6 | ||
| – | B211A03900SGL | – | 3,900 | .1535 | 0,6 | 36 | 6 | ||
| B210A04000SGL | B211A04000SGL | B212A04000SGL | 4,000 | .1575 | 0,6 | 36 | 6 | ||
| – | B211A04039SGL | B212A04039SGL | 4,039 | .1590 | 0,6 | 36 | 6 | ||
| B210A04100SGL | B211A04100SGL | B212A04100SGL | 4,100 | .1614 | 0,6 | 36 | 6 | ||
| B210A04200SGL | B211A04200SGL | B212A04200SGL | 4,200 | .1654 | 0,6 | 36 | 6 |
лучший выбор альтернативный выбор диаметр D1
| укороченное • KCMS15 удлиненное • KCMS15 сверхдлинное • KCMS15 | mm | дюйм | L5 | LS | D | ||||
| – | B211A04763SGL | – | 4,763 | .1875 | 0,7 | 36 | 6 | ||
| B210A04800SGL | B211A04800SGL | B212A04800SGL | 4,800 | .1890 | 0,7 | 36 | 6 | ||
| – | B211A04852SGL | B212A04852SGL | 4,852 | .1910 | 0,7 | 36 | 6 | ||
| B210A04900SGL | B211A04900SGL | – | 4,900 | .1929 | 0,7 | 36 | 6 | ||
| B210A05000SGL | B211A05000SGL | B212A05000SGL | 5,000 | .1969 | 0,7 | 36 | 6 | ||
| B210A05100SGL | B211A05100SGL | B212A05100SGL | 5,100 | .2008 | 0,8 | 36 | 6 | ||
| B210A05106SGL | B211A05106SGL | – | 5,106 | .2010 | 0,8 | 36 | 6 | ||
| B210A05159SGL | B211A05159SGL | – | 5,159 | .2031 | 0,8 | 36 | 6 | ||
| B210A05200SGL | B211A05200SGL | B212A05200SGL | 5,200 | .2047 | 0,8 | 36 | 6 | ||
| B210A05300SGL | B211A05300SGL | – | 5,300 | .2087 | 0,8 | 36 | 6 | ||
| B210A05400SGL | B211A05400SGL | – | 5,400 | .2126 | 0,8 | 36 | 6 | ||
| B210A05500SGL | B211A05500SGL | B212A05500SGL | 5,500 | .2165 | 0,8 | 36 | 6 | ||
| – | B211A05558SGL | – | 5,558 | .2188 | 0,8 | 36 | 6 | ||
| – | B211A05600SGL | – | 5,600 | .2205 | 0,8 | 36 | 6 | ||
| B210A05616SGL | – | – | 5,616 | .2211 | 0,8 | 36 | 6 | ||
| – | B211A05700SGL | – | 5,700 | .2244 | 0,8 | 36 | 6 | ||
| B210A05800SGL | B211A05800SGL | B212A05800SGL | 5,800 | .2283 | 0,9 | 36 | 6 | ||
| – | B211A05900SGL | – | 5,900 | .2323 | 0,9 | 36 | 6 | ||
| B210A05954SGL | B211A05954SGL | – | 5,954 | .2344 | 0,9 | 36 | 6 | ||
| B210A06000SGL | B211A06000SGL | B212A06000SGL | 6,000 | .2362 | 0,9 | 36 | 6 | ||
| B210A06100SGL | B211A06100SGL | – | 6,100 | .2402 | 0,9 | 36 | 8 | ||
| B210A06200SGL | B211A06200SGL | – | 6,200 | .2441 | 0,9 | 36 | 8 | ||
| B210A06300SGL | B211A06300SGL | – | 6,300 | .2480 | 0,9 | 36 | 8 | ||
| B210A06350SGL | B211A06350SGL | B212A06350SGL | 6,350 | .2500 | 0,9 | 36 | 8 | ||
| – | B211A06400SGL | – | 6,400 | .2520 | 0,9 | 36 | 8 | ||
| B210A06400SGL | – | – | 6,400 | .2520 | 1,0 | 36 | 8 | ||
| B210A06500SGL | B211A06500SGL | B212A06500SGL | 6,500 | .2559 | 1,0 | 36 | 8 | ||
| – | B211A06600SGL | – | 6,600 | .2598 | 1,0 | 36 | 8 | ||
| – | B211A06630SGL | B212A06630SGL | 6,630 | .2610 | 1,0 | 36 | 8 | ||
| B210A06700SGL | B211A06700SGL | – | 6,700 | .2638 | 1,0 | 36 | 8 | ||
| B210A06800SGL | B211A06800SGL | B212A06800SGL | 6,800 | .2677 | 1,0 | 36 | 8 | ||
| B210A06900SGL | B211A06900SGL | – | 6,900 | .2717 | 1,0 | 36 | 8 | ||
| B210A07000SGL | B211A07000SGL | B212A07000SGL | 7,000 | .2756 | 1,0 | 36 | 8 | ||
| B210A07100SGL | B211A07100SGL | – | 7,100 | .2795 | 1,1 | 36 | 8 | ||
| B210A07145SGL | – | – | 7,145 | .2813 | 1,1 | 36 | 8 | ||
| – | B211A07200SGL | – | 7,200 | .2835 | 1,1 | 36 | 8 | ||
| – | B211A07300SGL | – | 7,300 | .2874 | 1,1 | 36 | 8 | ||
| B210A07400SGL | B211A07400SGL | – | 7,400 | .2913 | 1,1 | 36 | 8 | ||
| B210A07500SGL | B211A07500SGL | – | 7,500 | .2953 | 1,1 | 36 | 8 | ||
| – | – B212A07500SGL | 7,500 | .2953 | 1,1 | 74 | 8 | |||
| – | B211A07600SGL | – | 7,600 | .2992 | 1,1 | 36 | 8 | ||
| – | B211A07700SGL | – | 7,700 | .3031 | 1,1 | 36 | 8 |
| диаме | тр D1 | � � | лучший выбор альтернативны | й выбор | |||
| укороченное • KCMS15 | удлиненное • KCMS15 | сверхдлинное • KCMS15 | mm | дюйм | L5 | LS | D |
| B210Z02500SGL | – | – | 2,500 | .0984 | 0,4 | 28 | 3 |
| B210A03000SGL | B211A03000SGL | B212A03000SGL | 3,000 | .1181 | 0,4 | 36 | 6 |
| B210A03048SGL | B211A03048SGL | – | 3,048 | .1200 | 0,5 | 36 | 6 |
| – | B211A03100SGL | – | 3,100 | .1220 | 0,5 | 36 | 6 |
| B210A03175SGL | B211A03175SGL | B212A03175SGL | 3,175 | .1250 | 0,5 | 36 | 6 |
| B210A03200SGL | B211A03200SGL | B212A03200SGL | 3,200 | .1260 | 0,5 | 36 | 6 |
| B210A03264SGL | – | B212A03264SGL | 3,264 | .1285 | 0,5 | 36 | 6 |
| B210A03300SGL | B211A03300SGL | B212A03300SGL | 3,300 | .1299 | 0,5 | 36 | 6 |
| B210A03400SGL | B211A03400SGL | – | 3,400 | .1339 | 0,5 | 36 | 6 |
| B210A03455SGL | B211A03455SGL | B212A03455SGL | 3,455 | .1360 | 0,5 | 36 | 6 |
| B210A03500SGL | B211A03500SGL | B212A03500SGL | 3,500 | .1378 | 0,5 | 36 | 6 |
| – | B211A03571SGL | B212A03571SGL | 3,571 | .1406 | 0,5 | 36 | 6 |
| – | B211A03600SGL | – | 3,600 | .1417 | 0,5 | 36 | 6 |
| – | B211A03658SGL | B212A03658SGL | 3,658 | .1440 | 0,5 | 36 | 6 |
| – | B211A03700SGL | B212A03700SGL | 3,700 | .1457 | 0,5 | 36 | 6 |
| B210A03700SGL | – | – | 3,700 | .1457 | 0,6 | 36 | 6 |
| – | B211A03734SGL | – | 3,734 | .1470 | 0,6 | 36 | 6 |
| B210A03800SGL | B211A03800SGL | B212A03800SGL | 3,800 | .1496 | 0,6 | 36 | 6 |
| – | B211A03861SGL | – | 3,861 | .1520 | 0,6 | 36 | 6 |
| – | B211A03900SGL | – | 3,900 | .1535 | 0,6 | 36 | 6 |
| B210A04000SGL | B211A04000SGL | B212A04000SGL | 4,000 | .1575 | 0,6 | 36 | 6 |
| – | B211A04039SGL | B212A04039SGL | 4,039 | .1590 | 0,6 | 36 | 6 |
| B210A04100SGL | B211A04100SGL | B212A04100SGL | 4,100 | .1614 | 0,6 | 36 | 6 |
| B210A04200SGL | B211A04200SGL | B212A04200SGL | 4,200 | .1654 | 0,6 | 36 | 6 |
| – | B211A04217SGL | – | 4,217 | .1660 | 0,6 | 36 | 6 |
| B210A04300SGL | B211A04300SGL | B212A04300SGL | 4,300 | .1693 | 0,6 | 36 | 6 |
| – | B211A04366SGL | B212A04366SGL | 4,366 | .1719 | 0,6 | 36 | 6 |
| B210A04366SGL | – | – | 4,366 | .1719 | 0,7 | 36 | 6 |
| – | B211A04400SGL | – | 4,400 | .1732 | 0,7 | 36 | 6 |
| B210A04500SGL | B211A04500SGL | B212A04500SGL | 4,500 | .1772 | 0,7 | 36 | 6 |
| – | B211A04600SGL | – | 4,600 | .1811 | 0,7 | 36 | 6 |
| B210A04700SGL | B211A04700SGL | B212A04700SGL | 4,700 | .1850 | 0,7 | 36 | 6 |
