- Сплав KSP39 с оксидированной
- Сплав KSU31 с покрытием из TiN.
поверхностью. Сплав KSP39 с оксидированной
поверхностью.

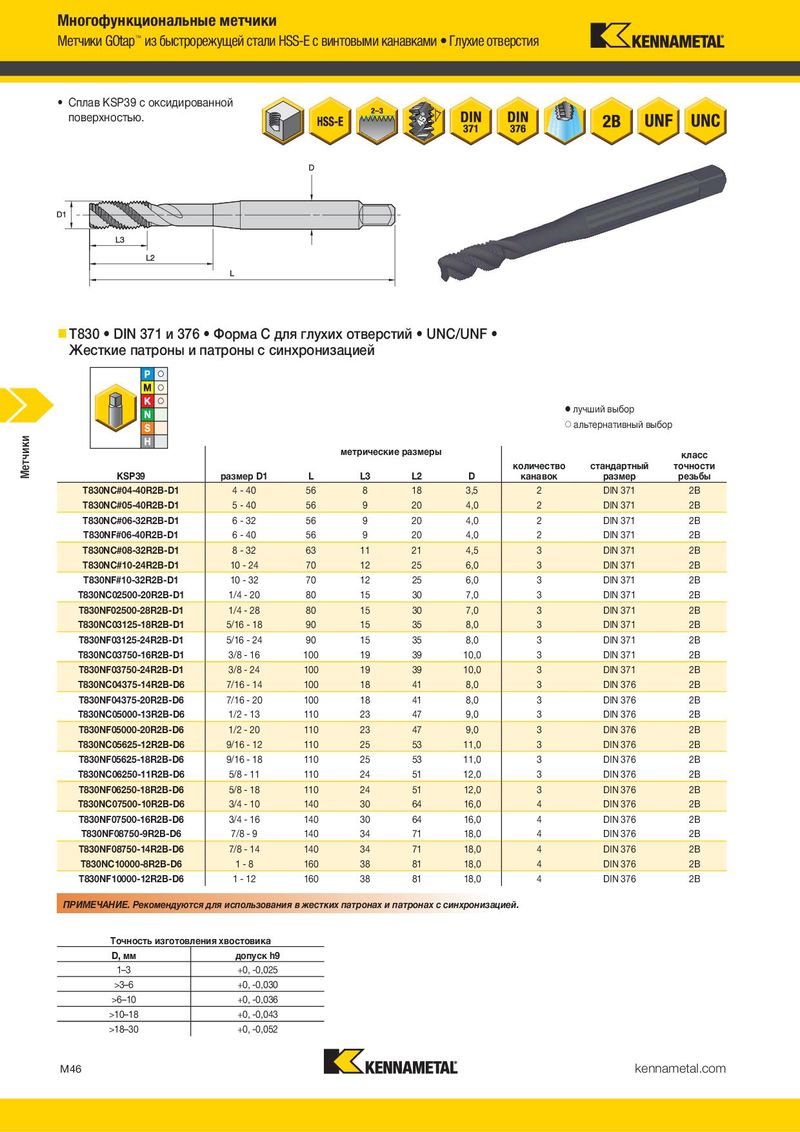

T830 DIN 371 и 376 Форма C для глухих отверстий UNC/UNF
Жесткие патроны и патроны с синхронизацией
T838 DIN 371, 374 и 376 Форма C для глухих отверстий UNC/UNF
Патроны с осевой компенсацией
лучший выбор альтернативный выбор
| метрические размеры | класс | лучший выбор | |||
| KSP39 | |||||
| количество | стандартный | точности | альтернативный выбор |
| KSP39 | размер D1 | L | L3 | L2 | D | канавок | размер | резьбы | ||||||
| T830NC#04-40R2B-D1 | 4 - 40 | 56 | 8 | 18 | 3,5 | 2 | DIN 371 | 2B | ||||||
| класс | ||||||||||||||
| T830NC#05-40R2B-D1 | 5 - 40 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B | KSU31 | KSP39 |
количество стандартный точности
| T830NC#06-32R2B-D1 | 6 - 32 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B | KSU31 | размер D1 KSP39 | L | L3 | L2 | D | канавок | размер | резьбы | |
| T830NF#06-40R2B-D1 | 6 - 40 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B | T838NC#06-32R2B-D1 | T838NC#06-32R2B-D1 | 6 - 32 | 56 | 7 | 21 | 4,0 | 3 | DIN 371 | 2B |
| T838NF#06-40R2B-D1 | T838NF#06-40R2B-D1 | 6 - 40 | 56 | 7 | 21 | 4,0 | 3 | DIN 371 | 2B | |||||||||
| T830NC#08-32R2B-D1 | 8 - 32 | 63 | 11 | 21 | 4,5 | 3 | DIN 371 | 2B | ||||||||||
| T830NC#10-24R2B-D1 | 10 - 24 | 70 | 12 | 25 | 6,0 | 3 | DIN 371 | 2B | T838NC#08-32R2B-D1 | T838NC#08-32R2B-D1 | 8 - 32 | 63 | 7 | 21 | 4,5 | 3 | DIN 371 | 2B |
| T830NF#10-32R2B-D1 | 10 - 32 | 70 | 12 | 25 | 6,0 | 3 | DIN 371 | 2B | T838NF#08-36R2B-D1 | T838NF#08-36R2B-D1 | 8 - 36 | 63 | 7 | 21 | 4,5 | 3 | DIN 371 | 2B |
| T830NC02500-20R2B-D1 | 1/4 - 20 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 2B | T838NC#10-24R2B-D1 | T838NC#10-24R2B-D1 | 10 - 24 | 70 | 8 | 25 | 6,0 | 3 | DIN 371 | 2B |
| T830NF02500-28R2B-D1 | 1/4 - 28 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 2B | T838NF#10-32R2B-D1 | T838NF#10-32R2B-D1 | 10 - 32 | 70 | 8 | 25 | 6,0 | 3 | DIN 371 | 2B |
| T830NC03125-18R2B-D1 | 5/16 - 18 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 2B | T838NC#12-24R2B-D1 | T838NC#12-24R2B-D1 | 12 - 24 | 80 | 10 | 30 | 6,0 | 3 | DIN 371 | 2B |
| T838NF#12-28R2B-D1 | T838NF#12-28R2B-D1 | 12 - 28 | 80 | 10 | 30 | 6,0 | 3 | DIN 371 | 2B | |||||||||
| T830NF03125-24R2B-D1 | 5/16 - 24 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 2B | ||||||||||
| T830NC03750-16R2B-D1 | 3/8 - 16 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 2B | T838NC02500-20R2B-D1 | T838NC02500-20R2B-D1 | 1/4 - 20 | 80 | 10 | 29 | 7,0 | 3 | DIN 371 | 2B |
| T830NF03750-24R2B-D1 | 3/8 - 24 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 2B | T838NC02500-20R2B-D6 | T838NC02500-20R2B-D6 | 1/4 - 20 | 80 | 10 | 36 | 4,5 | 3 | DIN 376 | 2B |
| T830NC04375-14R2B-D6 | 7/16 - 14 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 2B | T838NF02500-28R2B-D1 | T838NF02500-28R2B-D1 | 1/4 - 28 | 80 | 10 | 29 | 7,0 | 3 | DIN 371 | 2B |
| T830NF04375-20R2B-D6 | 7/16 - 20 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 2B | T838NF02500-28R2B-D4 | T838NF02500-28R2B-D4 | 1/4 - 28 | 80 | 10 | 36 | 4,5 | 3 | DIN 374 | 2B |
| T830NC05000-13R2B-D6 | 1/2 - 13 | 110 | 23 | 47 | 9,0 | 3 | DIN 376 | 2B | T838NC03125-18R2B-D1 | T838NC03125-18R2B-D1 | 5/16 - 18 | 90 | 13 | 37 | 8,0 | 3 | DIN 371 | 2B |
| T838NC03125-18R2B-D6 | T838NC03125-18R2B-D6 | 5/16 - 18 | 90 | 13 | 37 | 6,0 | 3 | DIN 376 | 2B | |||||||||
| T830NF05000-20R2B-D6 | 1/2 - 20 | 110 | 23 | 47 | 9,0 | 3 | DIN 376 | 2B | ||||||||||
| T830NC05625-12R2B-D6 | 9/16 - 12 | 110 | 25 | 53 | 11,0 | 3 | DIN 376 | 2B | T838NF03125-24R2B-D4 | T838NF03125-24R2B-D4 | 5/16 - 24 | 90 | 13 | 37 | 6,0 | 3 | DIN 374 | 2B |
| T830NF05625-18R2B-D6 | 9/16 - 18 | 110 | 25 | 53 | 11,0 | 3 | DIN 376 | 2B | T838NC03750-16R2B-D1 | T838NC03750-16R2B-D1 | 3/8 - 16 | 100 | 15 | 42 | 10,0 | 3 | DIN 371 | 2B |
| T830NC06250-11R2B-D6 | 5/8 - 11 | 110 | 24 | 51 | 12,0 | 3 | DIN 376 | 2B | T838NC03750-16R2B-D6 | T838NC03750-16R2B-D6 | 3/8 - 16 | 100 | 15 | 45 | 7,0 | 3 | DIN 376 | 2B |
| T830NF06250-18R2B-D6 | 5/8 - 18 | 110 | 24 | 51 | 12,0 | 3 | DIN 376 | 2B | T838NF03750-24R2B-D4 | T838NF03750-24R2B-D4 | 3/8 - 24 | 90 | 15 | 40 | 7,0 | 3 | DIN 374 | 2B |
| T830NC07500-10R2B-D6 | 3/4 - 10 | 140 | 30 | 64 | 16,0 | 4 | DIN 376 | 2B | T838NC04375-14R2B-D6 | T838NC04375-14R2B-D6 | 7/16 - 14 | 100 | 15 | 47 | 8,0 | 3 | DIN 376 | 2B |
| T838NF04375-20R2B-D4 | T838NF04375-20R2B-D4 | 7/16 - 20 | 100 | 15 | 47 | 8,0 | 3 | DIN 374 | 2B | |||||||||
| T830NF07500-16R2B-D6 | 3/4 - 16 | 140 | 30 | 64 | 16,0 | 4 | DIN 376 | 2B | ||||||||||
| T830NF08750-9R2B-D6 | 7/8 - 9 | 140 | 34 | 71 | 18,0 | 4 | DIN 376 | 2B | T838NC05000-13R2B-D6 | T838NC05000-13R2B-D6 | 1/2 - 13 | 110 | 18 | 50 | 9,0 | 3 | DIN 376 | 2B |
| T830NF08750-14R2B-D6 | 7/8 - 14 | 140 | 34 | 71 | 18,0 | 4 | DIN 376 | 2B | T838NF05000-20R2B-D4 | T838NF05000-20R2B-D4 | 1/2 - 20 | 100 | 13 | 44 | 9,0 | 3 | DIN 374 | 2B |
| T830NC10000-8R2B-D6 | 1 - 8 | 160 | 38 | 81 | 18,0 | 4 | DIN 376 | 2B | T838NC05625-12R2B-D6 | T838NC05625-12R2B-D6 | 9/16 - 12 | 110 | 20 | 55 | 11,0 | 4 | DIN 376 | 2B |
| T838NF05625-18R2B-D4 | T838NF05625-18R2B-D4 | 9/16 - 18 | 100 | 15 | 44 | 11,0 | 4 | DIN 374 | 2B | |||||||||
| T830NF10000-12R2B-D6 | 1 - 12 | 160 | 38 | 81 | 18,0 | 4 | DIN 376 | 2B | ||||||||||
| T838NC06250-11R2B-D6 | T838NC06250-11R2B-D6 | 5/8 - 11 | 110 | 20 | 55 | 12,0 | 4 | DIN 376 | 2B |
| KSP39 KSP39 | размер D1 | L | L3 метрическ | L2 ие размеры | D | количество канавок | стандартный размер | класс точности резьбы |
| T830NC#04-40R2B-D1 | 4 - 40 | 56 | 8 | 18 | 3,5 | 2 | DIN 371 | 2B |
| T830NC#05-40R2B-D1 | 5 - 40 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| T830NC#06-32R2B-D1 | 6 - 32 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| T830NF#06-40R2B-D1 | 6 - 40 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| T830NC#08-32R2B-D1 | 8 - 32 | 63 | 11 | 21 | 4,5 | 3 | DIN 371 | 2B |
| T830NC#10-24R2B-D1 | 10 - 24 | 70 | 12 | 25 | 6,0 | 3 | DIN 371 | 2B |
| T830NF#10-32R2B-D1 | 10 - 32 | 70 | 12 | 25 | 6,0 | 3 | DIN 371 | 2B |
| T830NC02500-20R2B-D1 | 1/4 - 20 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 2B |
| T830NF02500-28R2B-D1 | 1/4 - 28 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 2B |
| T830NC03125-18R2B-D1 | 5/16 - 18 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 2B |
| T830NF03125-24R2B-D1 | 5/16 - 24 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 2B |
| T830NC03750-16R2B-D1 | 3/8 - 16 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 2B |
| T830NF03750-24R2B-D1 | 3/8 - 24 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 2B |
| T830NC04375-14R2B-D6 | 7/16 - 14 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 2B |
| T830NF04375-20R2B-D6 | 7/16 - 20 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 2B |
| T830NC05000-13R2B-D6 | 1/2 - 13 | 110 | 23 | 47 | 9,0 | 3 | DIN 376 | 2B |
| T830NF05000-20R2B-D6 | 1/2 - 20 | 110 | 23 | 47 | 9,0 | 3 | DIN 376 | 2B |
| T830NC05625-12R2B-D6 | 9/16 - 12 | 110 | 25 | 53 | 11,0 | 3 | DIN 376 | 2B |
| T830NF05625-18R2B-D6 | 9/16 - 18 | 110 | 25 | 53 | 11,0 | 3 | DIN 376 | 2B |
| T830NC06250-11R2B-D6 | 5/8 - 11 | 110 | 24 | 51 | 12,0 | 3 | DIN 376 | 2B |
| T830NF06250-18R2B-D6 | 5/8 - 18 | 110 | 24 | 51 | 12,0 | 3 | DIN 376 | 2B |
| T830NC07500-10R2B-D6 | 3/4 - 10 | 140 | 30 | 64 | 16,0 | 4 | DIN 376 | 2B |
| T830NF07500-16R2B-D6 | 3/4 - 16 | 140 | 30 | 64 | 16,0 | 4 | DIN 376 | 2B |
| T830NF08750-9R2B-D6 | 7/8 - 9 | 140 | 34 | 71 | 18,0 | 4 | DIN 376 | 2B |
| T830NF08750-14R2B-D6 | 7/8 - 14 | 140 | 34 | 71 | 18,0 | 4 | DIN 376 | 2B |
| T830NC10000-8R2B-D6 | 1 - 8 | 160 | 38 | 81 | 18,0 | 4 | DIN 376 | 2B |
| T830NF10000-12R2B-D6 | 1 - 12 | 160 | 38 | 81 | 18,0 | 4 | DIN 376 | 2B |
(продолжение)
| D, мм | допуск h9 |
| 1–3 | +0,-0,025 |
| >3–6 | +0,-0,030 |
| >6–10 | +0,-0,036 |
| >10–18 | +0,-0,043 |
| >18–30 | +0, -0,052 |
