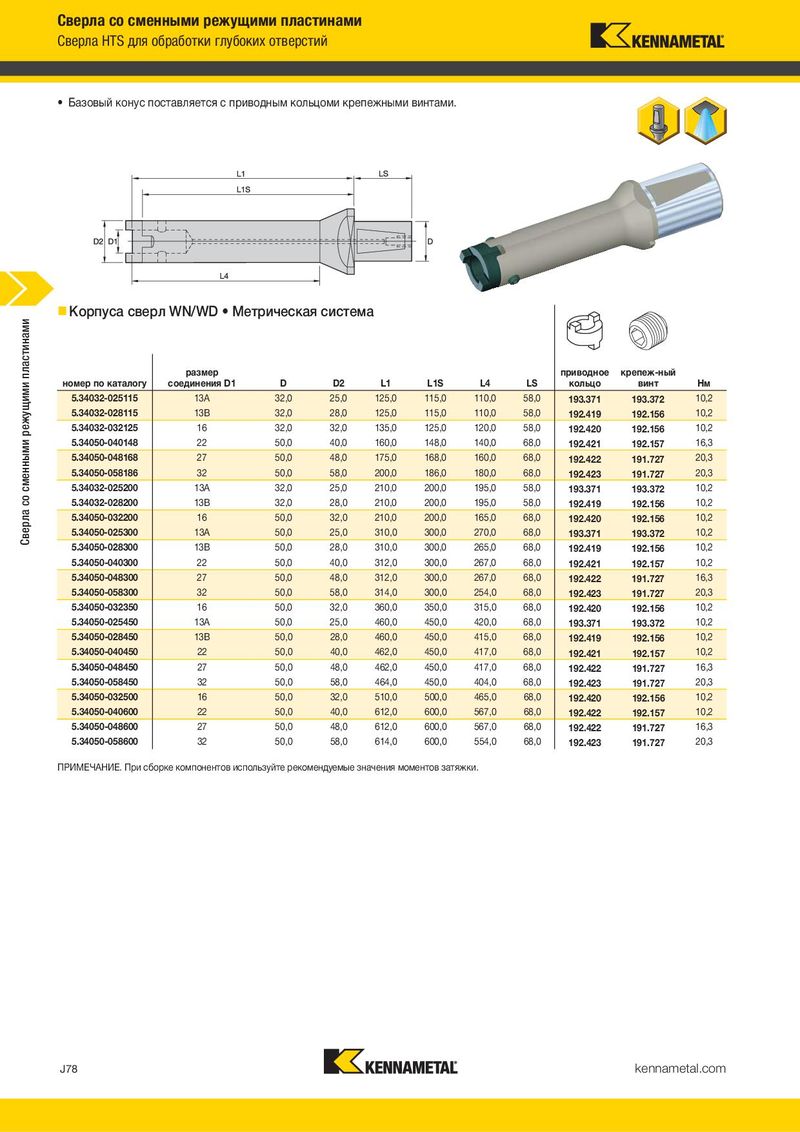

- Базовый конус поставляется с приводным кольцоми крепежными винтами.
- Базовый конус поставляется с приводным кольцом и крепежными винтами.
Базовые конуса CV Форма AD Вращающееся кольцо для подвода СОЖ
Корпуса сверл WN/WD Метрическая система
размер приводное крепеж-ный
| номер по каталогу | соединения D1 | D | D2 | L1 | L1S | L4 | LS | кольцо | винт | Нм |
| 5.34032-025115 | 13A | 32,0 | 25,0 | 125,0 | 115,0 | 110,0 | 58,0 | 193.371 | 193.372 | 10,2 |
| 5.34032-028115 | 13B | 32,0 | 28,0 | 125,0 | 115,0 | 110,0 | 58,0 | 192.419 | 192.156 | 10,2 |
| 5.34032-032125 | 16 | 32,0 | 32,0 | 135,0 | 125,0 | 120,0 | 58,0 | 192.420 | 192.156 | 10,2 |
| 5.34050-040148 | 22 | 50,0 | 40,0 | 160,0 | 148,0 | 140,0 | 68,0 | 192.421 | 192.157 | 16,3 |
| 5.34050-048168 | 27 | 50,0 | 48,0 | 175,0 | 168,0 | 160,0 | 68,0 | 192.422 | 191.727 | 20,3 |
| 5.34050-058186 | 32 | 50,0 | 58,0 | 200,0 | 186,0 | 180,0 | 68,0 | 192.423 | 191.727 | 20,3 |
| 5.34032-025200 | 13A | 32,0 | 25,0 | 210,0 | 200,0 | 195,0 | 58,0 | 193.371 | 193.372 | 10,2 |
| 5.34032-028200 | 13B | 32,0 | 28,0 | 210,0 | 200,0 | 195,0 | 58,0 | 192.419 | 192.156 | 10,2 |
| 5.34050-032200 | 16 | 50,0 | 32,0 | 210,0 | 200,0 | 165,0 | 68,0 | 192.420 | 192.156 | 10,2 |
| 5.34050-025300 | 13A | 50,0 | 25,0 | 310,0 | 300,0 | 270,0 | 68,0 | 193.371 | 193.372 | 10,2 |
| 5.34050-028300 | 13B | 50,0 | 28,0 | 310,0 | 300,0 | 265,0 | 68,0 | 10,2 | ||
| 192.419 | 192.156 | |||||||||
| 5.34050-040300 | 22 | 50,0 | 40,0 | 312,0 | 300,0 | 267,0 | 68,0 | 192.421 | 192.157 | 10,2 |
| 5.34050-048300 | 27 | 50,0 | 48,0 | 312,0 | 300,0 | 267,0 | 68,0 | 192.422 | 191.727 | 16,3 |
| 5.34050-058300 | 32 | 50,0 | 58,0 | 314,0 | 300,0 | 254,0 | 68,0 | 192.423 | 191.727 | 20,3 |
| 5.34050-032350 | 16 | 50,0 | 32,0 | 360,0 | 350,0 | 315,0 | 68,0 | 10,2 | ||
| 192.420 | 192.156 | |||||||||
| 5.34050-025450 | 13A | 50,0 | 25,0 | 460,0 | 450,0 | 420,0 | 68,0 | 193.371 | 193.372 | 10,2 |
| 5.34050-028450 | 13B | 50,0 | 28,0 | 460,0 | 450,0 | 415,0 | 68,0 | 192.419 | 192.156 | 10,2 |
| 5.34050-040450 | 22 | 50,0 | 40,0 | 462,0 | 450,0 | 417,0 | 68,0 | 192.421 | 192.157 | 10,2 |
| 5.34050-048450 | 27 | 50,0 | 48,0 | 462,0 | 450,0 | 417,0 | 68,0 | 192.422 | 191.727 | 16,3 |
| 5.34050-058450 | 32 | 50,0 | 58,0 | 464,0 | 450,0 | 404,0 | 68,0 | 192.423 | 191.727 | 20,3 |
| 5.34050-032500 | 16 | 50,0 | 32,0 | 510,0 | 500,0 | 465,0 | 68,0 | 192.420 | 192.156 | 10,2 |
| 5.34050-040600 | 22 | 50,0 | 40,0 | 612,0 | 600,0 | 567,0 | 68,0 | 192.422 | 192.157 | 10,2 |
| 5.34050-048600 | 27 | 50,0 | 48,0 | 612,0 | 600,0 | 567,0 | 68,0 | 192.422 | 191.727 | 16,3 |
шести-
размер размер крепежный гранный приводное кольцо для
| номер по каталогу | системы CSMS | соединения D1 | винт | ключ | кольцо | подвода СОЖ | ft. lbs. |
| CV50RMHTS13M394 | CV50 | 13B | 192.156 | 170.004 | 192.419 | 302.011 | 7.5 |
| CV50RMHTS16M394 | CV50 | 16 | 192.156 | 170.004 | 192.420 | 302.011 | 7.5 |
| CV50RMHTS22M394 | CV50 | 22 | 192.157 | 170.004 | 192.421 | 302.011 | 12.0 |
| CV50RMHTS27M394 | CV50 | 27 | 191.727 | 170.006 | 192.422 | 302.011 | 15.0 |
| CV50RMHTS32M394 * | CV50 | 32 | 191.727 | 170.006 | 192.423 | 302.011 | 15.0 |
| CV50RMHTS40M413 | CV50 | 40 | 191.728 | 170.008 | 192.424 | 302.009 | 26.0 |
| CV50RMHTS50M413 | CV50 | 50 | 191.728 | 170.008 | 192.425 | 302.010 | 26.0 |
ПРИМЕЧАНИЕ. При сборке компонентов используйте рекомендуемые значения моментов затяжки. *Стандартная позиция. Изготавливается при размещении заказа. Цена, время изготовления и минимальная партия заказа соответствуют стандартной продукции.
- Базовый конус поставляется с приводным кольцом и крепежными винтами.
B
| номер по каталогу | размер соединения D1 | D | D2 | L1 | L1S | L4 | LS | приводное кольцо | крепеж-ный винт | Нм |
| 5.34032-025115 | 13A | 32,0 | 25,0 | 125,0 | 115,0 | 110,0 | 58,0 | 193.371 | 193.372 | 10,2 |
| 5.34032-028115 | 13B | 32,0 | 28,0 | 125,0 | 115,0 | 110,0 | 58,0 | 192.419 | 192.156 | 10,2 |
| 5.34032-032125 | 16 | 32,0 | 32,0 | 135,0 | 125,0 | 120,0 | 58,0 | 192.420 | 192.156 | 10,2 |
| 5.34050-040148 | 22 | 50,0 | 40,0 | 160,0 | 148,0 | 140,0 | 68,0 | 192.421 | 192.157 | 16,3 |
| 5.34050-048168 | 27 | 50,0 | 48,0 | 175,0 | 168,0 | 160,0 | 68,0 | 192.422 | 191.727 | 20,3 |
| 5.34050-058186 | 32 | 50,0 | 58,0 | 200,0 | 186,0 | 180,0 | 68,0 | 192.423 | 191.727 | 20,3 |
| 5.34032-025200 | 13A | 32,0 | 25,0 | 210,0 | 200,0 | 195,0 | 58,0 | 193.371 | 193.372 | 10,2 |
| 5.34032-028200 | 13B | 32,0 | 28,0 | 210,0 | 200,0 | 195,0 | 58,0 | 192.419 | 192.156 | 10,2 |
| 5.34050-032200 | 16 | 50,0 | 32,0 | 210,0 | 200,0 | 165,0 | 68,0 | 192.420 | 192.156 | 10,2 |
| 5.34050-025300 | 13A | 50,0 | 25,0 | 310,0 | 300,0 | 270,0 | 68,0 | 193.371 | 193.372 | 10,2 |
| 5.34050-028300 | 13B | 50,0 | 28,0 | 310,0 | 300,0 | 265,0 | 68,0 | 192.419 | 192.156 | 10,2 |
| 5.34050-040300 | 22 | 50,0 | 40,0 | 312,0 | 300,0 | 267,0 | 68,0 | 192.421 | 192.157 | 10,2 |
| 5.34050-048300 | 27 | 50,0 | 48,0 | 312,0 | 300,0 | 267,0 | 68,0 | 192.422 | 191.727 | 16,3 |
| 5.34050-058300 | 32 | 50,0 | 58,0 | 314,0 | 300,0 | 254,0 | 68,0 | 192.423 | 191.727 | 20,3 |
| 5.34050-032350 | 16 | 50,0 | 32,0 | 360,0 | 350,0 | 315,0 | 68,0 | 192.420 | 192.156 | 10,2 |
| 5.34050-025450 | 13A | 50,0 | 25,0 | 460,0 | 450,0 | 420,0 | 68,0 | 193.371 | 193.372 | 10,2 |
| 5.34050-028450 | 13B | 50,0 | 28,0 | 460,0 | 450,0 | 415,0 | 68,0 | 192.419 | 192.156 | 10,2 |
| 5.34050-040450 | 22 | 50,0 | 40,0 | 462,0 | 450,0 | 417,0 | 68,0 | 192.421 | 192.157 | 10,2 |
| 5.34050-048450 | 27 | 50,0 | 48,0 | 462,0 | 450,0 | 417,0 | 68,0 | 192.422 | 191.727 | 16,3 |
| 5.34050-058450 | 32 | 50,0 | 58,0 | 464,0 | 450,0 | 404,0 | 68,0 | 192.423 | 191.727 | 20,3 |
| 5.34050-032500 | 16 | 50,0 | 32,0 | 510,0 | 500,0 | 465,0 | 68,0 | 192.420 | 192.156 | 10,2 |
| 5.34050-040600 | 22 | 50,0 | 40,0 | 612,0 | 600,0 | 567,0 | 68,0 | 192.422 | 192.157 | 10,2 |
| 5.34050-048600 | 27 | 50,0 | 48,0 | 612,0 | 600,0 | 567,0 | 68,0 | 192.422 | 191.727 | 16,3 |
| 5.34050-058600 | 32 | 50,0 | 58,0 | 614,0 | 600,0 | 554,0 | 68,0 | 192.423 | 191.727 | 20,3 |
