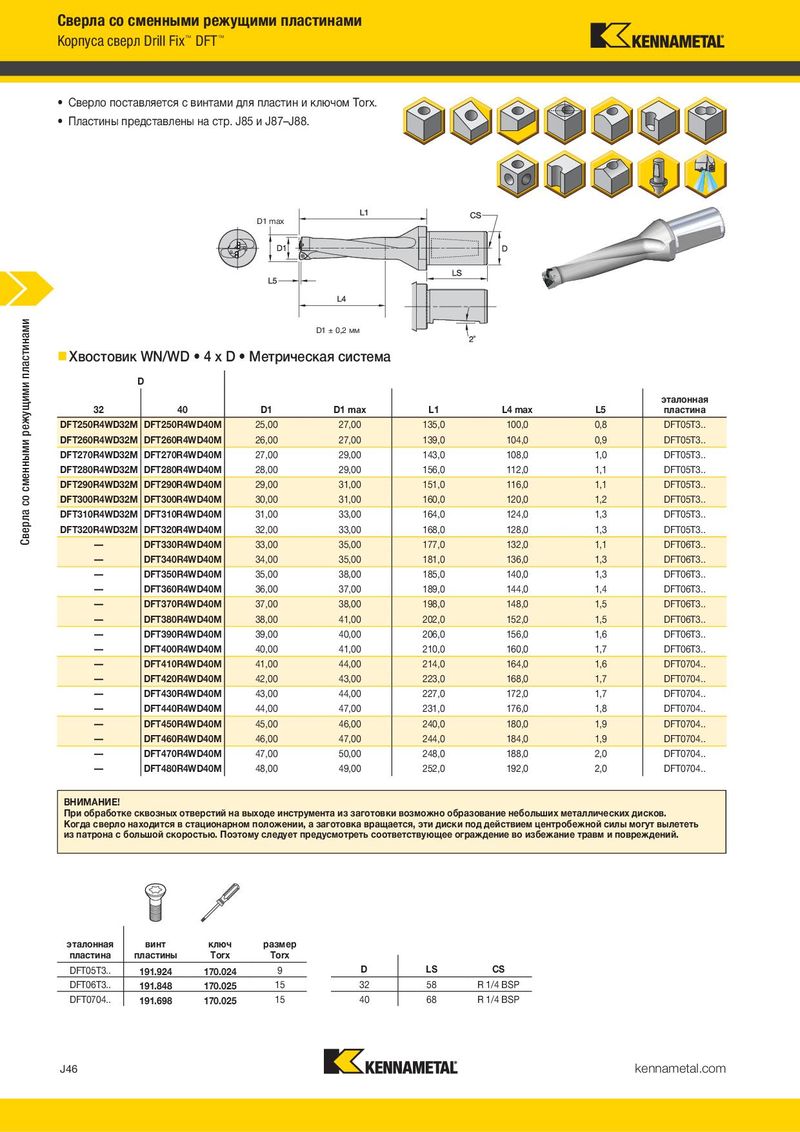

Корпуса сверл Drill Fix™ DFT™ Патроны для сверл Drill Fix™ Эксцентриковый регулировочный механизм
- Сверло поставляется с винтами для пластин и ключом Torx.
- Пластины представлены на стр. J85 и J87–J88.
D1 max
D1 ± 0,2 мм
Хвостовик WN/WD 4 x D Метрическая система
D D1 diameter эталонная
| 32 | 40 D1 | D1 max | L1 | L4 max | L5 | пластина | ||
| DFT250R4WD32M DFT250R4WD40M | 25,00 | 27,00 | 135,0 | 100,0 | 0,8 | DFT05T3.. | ||
| DFT260R4WD32M DFT260R4WD40M | 26,00 | 27,00 | 139,0 | 104,0 | 0,9 | DFT05T3.. | ||
| DFT270R4WD32M DFT270R4WD40M | 27,00 | 29,00 | 143,0 | 108,0 | 1,0 | DFT05T3.. | ||
| DFT280R4WD32M DFT280R4WD40M | 28,00 | 29,00 | 156,0 | 112,0 | 1,1 | DFT05T3.. | ||
| DFT290R4WD32M DFT290R4WD40M | 29,00 | 31,00 | 151,0 | 116,0 | 1,1 | DFT05T3.. | ||
| DFT300R4WD32M DFT300R4WD40M | 30,00 | 31,00 | 160,0 | 120,0 | 1,2 | DFT05T3.. | ||
| DFT310R4WD32M DFT310R4WD40M | 31,00 | 33,00 | 164,0 | 124,0 | 1,3 | DFT05T3.. | ||
| DFT320R4WD32M DFT320R4WD40M | 32,00 | 33,00 | 168,0 | 128,0 | 1,3 | DFT05T3.. | ||
| — | DFT330R4WD40M | 33,00 | 35,00 | 177,0 | 132,0 | 1,1 | DFT06T3.. | |
| — | DFT340R4WD40M | 34,00 | 35,00 | 181,0 | 136,0 | 1,3 | DFT06T3.. | |
| — | DFT350R4WD40M | 35,00 | 38,00 | 185,0 | 140,0 | 1,3 | DFT06T3.. | |
| — | DFT360R4WD40M | 36,00 | 37,00 | 189,0 | 144,0 | 1,4 | DFT06T3.. | |
| — | DFT370R4WD40M | 37,00 | 38,00 | 198,0 | 148,0 | 1,5 | DFT06T3.. | |
| — | DFT380R4WD40M | 38,00 | 41,00 | 202,0 | 152,0 | 1,5 | DFT06T3.. | |
| — | DFT390R4WD40M | 39,00 | 40,00 | 206,0 | 156,0 | 1,6 | DFT06T3.. | |
| — | DFT400R4WD40M | 40,00 | 41,00 | 210,0 | 160,0 | 1,7 | DFT06T3.. | |
| — | DFT410R4WD40M | 41,00 | 44,00 | 214,0 | 164,0 | 1,6 | DFT0704.. | |
| — | DFT420R4WD40M | 42,00 | 43,00 | 223,0 | 168,0 | 1,7 | DFT0704.. | |
| — | DFT430R4WD40M | 43,00 | 44,00 | 227,0 | 172,0 | 1,7 | DFT0704.. | |
| — | DFT440R4WD40M | 44,00 | 47,00 | 231,0 | 176,0 | 1,8 | DFT0704.. | |
| — | DFT450R4WD40M | 45,00 | 46,00 | 240,0 | 180,0 | 1,9 | DFT0704.. | |
| — | DFT460R4WD40M | 46,00 | 47,00 | 244,0 | 184,0 | 1,9 | DFT0704.. |
Патроны для сверл Drill Fix™ Эксцентриковый регулировочный механизм
SK 40 SK 50 кольцо для номер подвода
| по каталогу D1 | D2 | L1 | DIN 69871 A MAS 403 BT DIN 69871 A MAS 403 BT | СОЖ | кг | фунт | ||||
| BT40BEWD20096M | 20,00 | 63.000 | 96.000 | — | — | — | — | 3.00 | 6.6 | |
| DV40BEWD20090M | 20,00 | 63.000 | 96.000 | — | — | — | — | 3.00 | 6.6 | |
| DV50BEWD32108M | 32,00 | 63.000 | 108.000 | — | — | — | — | 4.30 | 9.5 | |
| BT50BEWD32127M | 32,00 | 63.000 | 108.000 | — | — | — | — | 4,3 | 9.5 | |
| DV40BEWD32108M | 32,00 | 63.000 | 108.000 | — | — | — | — | 4.00 | 8.8 | |
| BT40BEWD32114M | 32,00 | 63.000 | 114.000 | — | — | — | — | 3.40 | 7.5 | |
| BT40RMEWD32114M | 32,00 | 90.000 | 114.000 | — | — | — | 4.00 | 8.8 | ||
| DV50RMEWD32108M | 32,00 | 90.000 | 108.000 | — | — | — | 6.90 | 15.2 |
ПРИМЕЧАНИЕ. nmax: 4800 об/мин Pmax: 20 бар
С кольцом для подвода СОЖ
крепеж-ный регулировочный упорный эксцентриковая ключ с
D1 винт винт стержень втулка лимбом
| 32 | D 40 | D1 diameter D1 | D1 max | L1 | L4 max | L5 | эталонная пластина |
| DFT250R4WD32M | DFT250R4WD40M | 25,00 | 27,00 | 135,0 | 100,0 | 0,8 | DFT05T3.. |
| DFT260R4WD32M | DFT260R4WD40M | 26,00 | 27,00 | 139,0 | 104,0 | 0,9 | DFT05T3.. |
| DFT270R4WD32M | DFT270R4WD40M | 27,00 | 29,00 | 143,0 | 108,0 | 1,0 | DFT05T3.. |
| DFT280R4WD32M | DFT280R4WD40M | 28,00 | 29,00 | 156,0 | 112,0 | 1,1 | DFT05T3.. |
| DFT290R4WD32M | DFT290R4WD40M | 29,00 | 31,00 | 151,0 | 116,0 | 1,1 | DFT05T3.. |
| DFT300R4WD32M | DFT300R4WD40M | 30,00 | 31,00 | 160,0 | 120,0 | 1,2 | DFT05T3.. |
| DFT310R4WD32M | DFT310R4WD40M | 31,00 | 33,00 | 164,0 | 124,0 | 1,3 | DFT05T3.. |
| DFT320R4WD32M | DFT320R4WD40M | 32,00 | 33,00 | 168,0 | 128,0 | 1,3 | DFT05T3.. |
| — | DFT330R4WD40M | 33,00 | 35,00 | 177,0 | 132,0 | 1,1 | DFT06T3.. |
| — | DFT340R4WD40M | 34,00 | 35,00 | 181,0 | 136,0 | 1,3 | DFT06T3.. |
| — | DFT350R4WD40M | 35,00 | 38,00 | 185,0 | 140,0 | 1,3 | DFT06T3.. |
| — | DFT360R4WD40M | 36,00 | 37,00 | 189,0 | 144,0 | 1,4 | DFT06T3.. |
| — | DFT370R4WD40M | 37,00 | 38,00 | 198,0 | 148,0 | 1,5 | DFT06T3.. |
| — | DFT380R4WD40M | 38,00 | 41,00 | 202,0 | 152,0 | 1,5 | DFT06T3.. |
| — | DFT390R4WD40M | 39,00 | 40,00 | 206,0 | 156,0 | 1,6 | DFT06T3.. |
| — | DFT400R4WD40M | 40,00 | 41,00 | 210,0 | 160,0 | 1,7 | DFT06T3.. |
| — | DFT410R4WD40M | 41,00 | 44,00 | 214,0 | 164,0 | 1,6 | DFT0704.. |
| — | DFT420R4WD40M | 42,00 | 43,00 | 223,0 | 168,0 | 1,7 | DFT0704.. |
| — | DFT430R4WD40M | 43,00 | 44,00 | 227,0 | 172,0 | 1,7 | DFT0704.. |
| — | DFT440R4WD40M | 44,00 | 47,00 | 231,0 | 176,0 | 1,8 | DFT0704.. |
| — | DFT450R4WD40M | 45,00 | 46,00 | 240,0 | 180,0 | 1,9 | DFT0704.. |
| — | DFT460R4WD40M | 46,00 | 47,00 | 244,0 | 184,0 | 1,9 | DFT0704.. |
| — | DFT470R4WD40M | 47,00 | 50,00 | 248,0 | 188,0 | 2,0 | DFT0704.. |
| — | DFT480R4WD40M | 48,00 | 49,00 | 252,0 | 192,0 | 2,0 | DFT0704.. |
