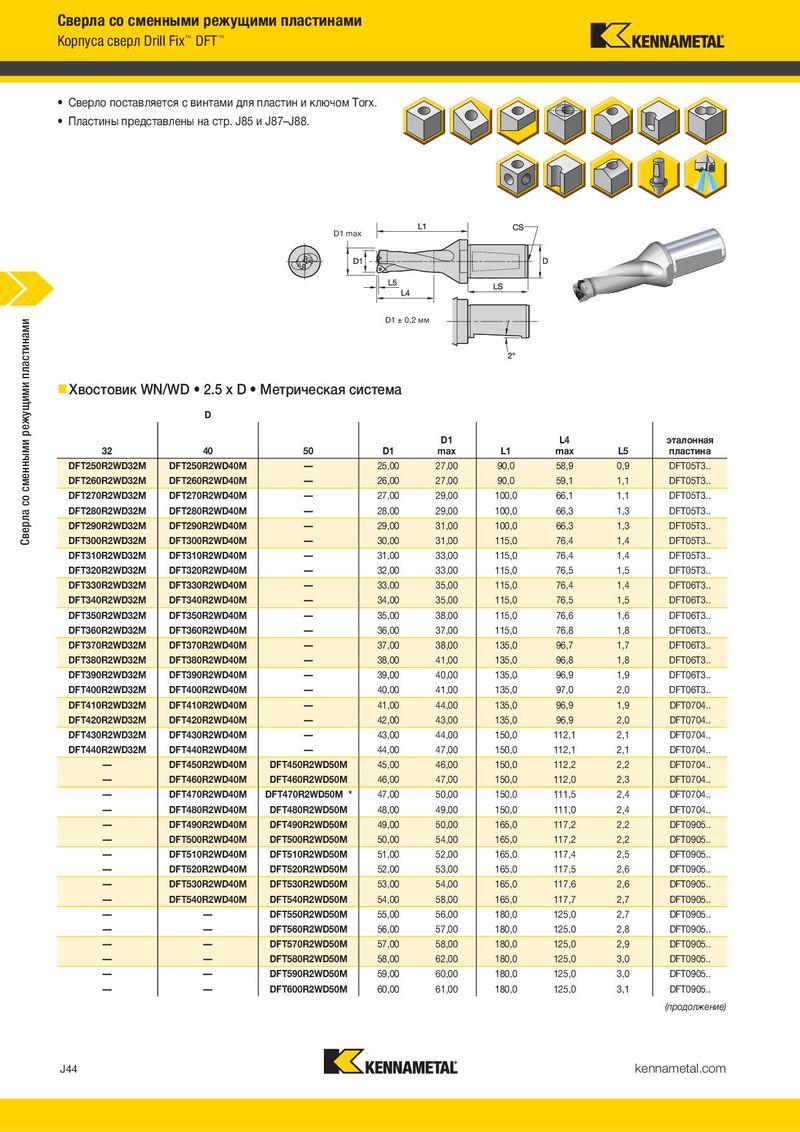

Основной каталог Kennametal вращающиеся инструменты 2018 - страница 368
Навигация
Каталог Kennametal инновации 2021.1
Монолитные концевые фрезы Kennametal 2024
Сменные фрезерные пластины сплавов KCK20B и KCKP10 Kennametal 2024
Оптимальный выбор Kennametal 2025 - 2026
Пластины с геометрией FV для токарной обработки Kennametal 2023
Корпуса сверл Drill Fix™ DFT™ Корпуса сверл Drill Fix ™ DFT™
- Сверло поставляется с винтами для пластин и ключом Torx.
- Пластины представлены на стр. J85 и J87–J88.
D1 max
D1 ± 0,2 мм
Хвостовик WN/WD 2.5 x D Метрическая система
D
D1 L4 эталонная
| 32 | 40 | 50 | D1 | max | L1 | max | L5 | пластина | ||
| DFT250R2WD32M | DFT250R2WD40M | — | 25,00 | 27,00 | 90,0 | 58,9 | 0,9 | DFT05T3.. | ||
| DFT260R2WD32M | DFT260R2WD40M | — | 26,00 | 27,00 | 90,0 | 59,1 | 1,1 | DFT05T3.. | ||
| DFT270R2WD32M | DFT270R2WD40M | — | 27,00 | 29,00 | 100,0 | 66,1 | 1,1 | DFT05T3.. | ||
| DFT280R2WD32M | DFT280R2WD40M | — | 28,00 | 29,00 | 100,0 | 66,3 | 1,3 | DFT05T3.. | ||
| DFT290R2WD32M | DFT290R2WD40M | — | 29,00 | 31,00 | 100,0 | 66,3 | 1,3 | DFT05T3.. | ||
| DFT300R2WD32M | DFT300R2WD40M | — | 30,00 | 31,00 | 115,0 | 76,4 | 1,4 | DFT05T3.. | ||
| DFT310R2WD32M | DFT310R2WD40M | — | 31,00 | 33,00 | 115,0 | 76,4 | 1,4 | DFT05T3.. | ||
| DFT320R2WD32M | DFT320R2WD40M | — | 32,00 | 33,00 | 115,0 | 76,5 | 1,5 | DFT05T3.. | ||
| DFT330R2WD32M | DFT330R2WD40M | — | 33,00 | 35,00 | 115,0 | 76,4 | 1,4 | DFT06T3.. | ||
| DFT340R2WD32M | DFT340R2WD40M | — | 34,00 | 35,00 | 115,0 | 76,5 | 1,5 | DFT06T3.. | ||
| DFT350R2WD32M | DFT350R2WD40M | — | 35,00 | 38,00 | 115,0 | 76,6 | 1,6 | DFT06T3.. | ||
| DFT360R2WD32M | DFT360R2WD40M | — | 36,00 | 37,00 | 115,0 | 76,8 | 1,8 | DFT06T3.. | ||
| DFT370R2WD32M | DFT370R2WD40M | — | 37,00 | 38,00 | 135,0 | 96,7 | 1,7 | DFT06T3.. | ||
| DFT380R2WD32M | DFT380R2WD40M | — | 38,00 | 41,00 | 135,0 | 96,8 | 1,8 | DFT06T3.. | ||
| DFT390R2WD32M | DFT390R2WD40M | — | 39,00 | 40,00 | 135,0 | 96,9 | 1,9 | DFT06T3.. | ||
| DFT400R2WD32M | DFT400R2WD40M | — | 40,00 | 41,00 | 135,0 | 97,0 | 2,0 | DFT06T3.. | ||
| DFT410R2WD32M | DFT410R2WD40M | — | 41,00 | 44,00 | 135,0 | 96,9 | 1,9 | DFT0704.. | ||
| DFT420R2WD32M | DFT420R2WD40M | — | 42,00 | 43,00 | 135,0 | 96,9 | 2,0 | DFT0704.. | ||
| DFT430R2WD32M | DFT430R2WD40M | — | 43,00 | 44,00 | 150,0 | 112,1 | 2,1 | DFT0704.. | ||
| DFT440R2WD32M | DFT440R2WD40M | — | 44,00 | 47,00 | 150,0 | 112,1 | 2,1 | DFT0704.. | ||
| — | DFT450R2WD40M | DFT450R2WD50M | 45,00 | 46,00 | 150,0 | 112,2 | 2,2 | DFT0704.. | ||
| — | DFT460R2WD40M | DFT460R2WD50M | 46,00 | 47,00 | 150,0 | 112,0 | 2,3 | DFT0704.. | ||
| — | DFT470R2WD40M | DFT470R2WD50M * | 47,00 | 50,00 | 150,0 | 111,5 | 2,4 | DFT0704.. | ||
| — | DFT480R2WD40M | DFT480R2WD50M | 48,00 | 49,00 | 150,0 | 111,0 | 2,4 | DFT0704.. | ||
| — | DFT490R2WD40M | DFT490R2WD50M | 49,00 | 50,00 | 165,0 | 117,2 | 2,2 | DFT0905.. | ||
| — | DFT500R2WD40M | DFT500R2WD50M | 50,00 | 54,00 | 165,0 | 117,2 | 2,2 | DFT0905.. | ||
| — | DFT510R2WD40M | DFT510R2WD50M | 51,00 | 52,00 | 165,0 | 117,4 | 2,5 | DFT0905.. | ||
| — | DFT520R2WD40M | DFT520R2WD50M | 52,00 | 53,00 | 165,0 | 117,5 | 2,6 | DFT0905.. |
(Хвостовик WN/WD 2.5 x D Метрическая система — продолжение)
D
D1 L4 эталонная
| 32 | 40 | 50 D1 | max | L1 | max | L5 | пластина | |
| — | — | DFT610R2WD50M | 61,00 | 62,00 | 180,0 | 125,0 | 3,2 | DFT0905.. |
| — | — | DFT620R2WD50M | 62,00 | 65,00 | 180,0 | 125,0 | 3,2 | DFT0905.. |
| — | — | DFT630R2WD50M | 63,00 | 64,00 | 180,0 | 125,0 | 3,3 | DFT0905.. |
| — | — | DFT640R2WD50M | 64,00 | 65,00 | 180,0 | 125,0 | 3,4 | DFT0905.. |
| — | — | DFT650R2WD50M | 65,00 | 66,00 | 180,0 | 125,0 | 3,4 | DFT0905.. |
| — | — | DFT660R2WD50M | 66,00 | 69,00 | 180,0 | 125,0 | 3,5 | DFT0905.. |
| — | — | DFT670R2WD50M | 67,00 | 67,00 | 180,0 | 125,0 | 3,5 | DFT0905.. |
| — | — | DFT680R2WD50M | 68,00 | 69,00 | 180,0 | 125,0 | 3,6 | DFT0905.. |
| — | — | DFT690R2WD50M | 69,00 | 73,00 | 205,0 | 140,0 | 3,6 | DFT1105.. |
| — | — | DFT700R2WD50M | 70,00 | 71,00 | 205,0 | 140,0 | 3,6 | DFT1105.. |
| — | — | DFT710R2WD50M | 71,00 | 72,00 | 205,0 | 140,0 | 3,9 | DFT1105.. |
| — | — | DFT720R2WD50M | 72,00 | 73,00 | 205,0 | 140,0 | 3,9 | DFT1105.. |
| — | — | DFT730R2WD50M | 73,00 | 79,00 | 205,0 | 140,0 | 4,0 | DFT1105.. |
| — | — | DFT740R2WD50M | 74,00 | 75,00 | 205,0 | 140,0 | 4,1 | DFT1105.. |
| — | — | DFT750R2WD50M | 75,00 | 76,00 | 205,0 | 140,0 | 4,2 | DFT1105.. |
| — | — | DFT760R2WD50M | 76,00 | 77,00 | 205,0 | 140,0 | 4,2 | DFT1105.. |
| — | — | DFT770R2WD50M | 77,00 | 78,00 | 205,0 | 140,0 | 4,3 | DFT1105.. |
| — | — | DFT780R2WD50M | 78,00 | 79,00 | 205,0 | 140,0 | 4,3 | DFT1105.. |
| — | — | DFT790R2WD50M | 79,00 | 82,00 | 205,0 | 140,0 | 4,4 | DFT1105.. |
| — | — | DFT800R2WD50M | 80,00 | 81,00 | 205,0 | 140,0 | 4,5 | DFT1105.. |
| — | — | DFT810R2WD50M * | 81,00 | 82,00 | 205,0 | 140,0 | 4,5 | DFT1105.. |
| — | — | DFT820R2WD50M | 82,00 | 83,00 | 205,0 | 140,0 | 4,5 | DFT1105.. |
ПРИМЕЧАНИЕ. *Стандартная позиция. Изготавливается при размещении заказа. Цена, время изготовления и минимальная партия заказа соответствуют стандартной продукции. ВНИМАНИЕ! При обработке сквозных отверстий на выходе инструмента из заготовки возможно образование небольших металлических дисков.
Когда сверло находится в стационарном положении, а заготовка вращается, эти диски под действием центробежной силы могут вылететь из патрона с большой скоростью. Поэтому следует предусмотреть соответствующее ограждение во избежание травм и повреждений.
| эталонная | винт | ключ | размер | |||
| пластина | пластины | Torx | Torx | |||
| DFT05T3.. | 191.924 | 170.024 | 9 | |||
| DFT06T3.. | 191.848 | 170.025 | 15 | D | LS | CS |
| DFT0704.. | 191.698 | 170.025 | 15 | 32 | 58 | R 1/4 BSP |
| DFT0905.. | 191.726 | 170.026 | 20 | 40 | 68 | R 1/4 BSP |
| DFT1105.. | 20 | 50 | 68 | R 1/4 BSP |
191.375 170.026
| 32 | 40 | 50 | D1 | D1 max | L1 | L4 max | L5 | эталонная пластина |
| DFT250R2WD32M | DFT250R2WD40M | — | 25,00 | 27,00 | 90,0 | 58,9 | 0,9 | DFT05T3.. |
| DFT260R2WD32M | DFT260R2WD40M | — | 26,00 | 27,00 | 90,0 | 59,1 | 1,1 | DFT05T3.. |
| DFT270R2WD32M | DFT270R2WD40M | — | 27,00 | 29,00 | 100,0 | 66,1 | 1,1 | DFT05T3.. |
| DFT280R2WD32M | DFT280R2WD40M | — | 28,00 | 29,00 | 100,0 | 66,3 | 1,3 | DFT05T3.. |
| DFT290R2WD32M | DFT290R2WD40M | — | 29,00 | 31,00 | 100,0 | 66,3 | 1,3 | DFT05T3.. |
| DFT300R2WD32M | DFT300R2WD40M | — | 30,00 | 31,00 | 115,0 | 76,4 | 1,4 | DFT05T3.. |
| DFT310R2WD32M | DFT310R2WD40M | — | 31,00 | 33,00 | 115,0 | 76,4 | 1,4 | DFT05T3.. |
| DFT320R2WD32M | DFT320R2WD40M | — | 32,00 | 33,00 | 115,0 | 76,5 | 1,5 | DFT05T3.. |
| DFT330R2WD32M | DFT330R2WD40M | — | 33,00 | 35,00 | 115,0 | 76,4 | 1,4 | DFT06T3.. |
| DFT340R2WD32M | DFT340R2WD40M | — | 34,00 | 35,00 | 115,0 | 76,5 | 1,5 | DFT06T3.. |
| DFT350R2WD32M | DFT350R2WD40M | — | 35,00 | 38,00 | 115,0 | 76,6 | 1,6 | DFT06T3.. |
| DFT360R2WD32M | DFT360R2WD40M | — | 36,00 | 37,00 | 115,0 | 76,8 | 1,8 | DFT06T3.. |
| DFT370R2WD32M | DFT370R2WD40M | — | 37,00 | 38,00 | 135,0 | 96,7 | 1,7 | DFT06T3.. |
| DFT380R2WD32M | DFT380R2WD40M | — | 38,00 | 41,00 | 135,0 | 96,8 | 1,8 | DFT06T3.. |
| DFT390R2WD32M | DFT390R2WD40M | — | 39,00 | 40,00 | 135,0 | 96,9 | 1,9 | DFT06T3.. |
| DFT400R2WD32M | DFT400R2WD40M | — | 40,00 | 41,00 | 135,0 | 97,0 | 2,0 | DFT06T3.. |
| DFT410R2WD32M | DFT410R2WD40M | — | 41,00 | 44,00 | 135,0 | 96,9 | 1,9 | DFT0704.. |
| DFT420R2WD32M | DFT420R2WD40M | — | 42,00 | 43,00 | 135,0 | 96,9 | 2,0 | DFT0704.. |
| DFT430R2WD32M | DFT430R2WD40M | — | 43,00 | 44,00 | 150,0 | 112,1 | 2,1 | DFT0704.. |
| DFT440R2WD32M | DFT440R2WD40M | — | 44,00 | 47,00 | 150,0 | 112,1 | 2,1 | DFT0704.. |
| — | DFT450R2WD40M | DFT450R2WD50M | 45,00 | 46,00 | 150,0 | 112,2 | 2,2 | DFT0704.. |
| — | DFT460R2WD40M | DFT460R2WD50M | 46,00 | 47,00 | 150,0 | 112,0 | 2,3 | DFT0704.. |
| — | DFT470R2WD40M | DFT470R2WD50M | 47,00 | 50,00 | 150,0 | 111,5 | 2,4 | DFT0704.. |
| — | DFT480R2WD40M | DFT480R2WD50M | 48,00 | 49,00 | 150,0 | 111,0 | 2,4 | DFT0704.. |
| — | DFT490R2WD40M | DFT490R2WD50M | 49,00 | 50,00 | 165,0 | 117,2 | 2,2 | DFT0905.. |
| — | DFT500R2WD40M | DFT500R2WD50M | 50,00 | 54,00 | 165,0 | 117,2 | 2,2 | DFT0905.. |
| — | DFT510R2WD40M | DFT510R2WD50M | 51,00 | 52,00 | 165,0 | 117,4 | 2,5 | DFT0905.. |
| — | DFT520R2WD40M | DFT520R2WD50M | 52,00 | 53,00 | 165,0 | 117,5 | 2,6 | DFT0905.. |
| — | DFT530R2WD40M | DFT530R2WD50M | 53,00 | 54,00 | 165,0 | 117,6 | 2,6 | DFT0905.. |
| — | DFT540R2WD40M | DFT540R2WD50M | 54,00 | 58,00 | 165,0 | 117,7 | 2,7 | DFT0905.. |
| — | — | DFT550R2WD50M | 55,00 | 56,00 | 180,0 | 125,0 | 2,7 | DFT0905.. |
| — | — | DFT560R2WD50M | 56,00 | 57,00 | 180,0 | 125,0 | 2,8 | DFT0905.. |
| — | — | DFT570R2WD50M | 57,00 | 58,00 | 180,0 | 125,0 | 2,9 | DFT0905.. |
| — | — | DFT580R2WD50M | 58,00 | 62,00 | 180,0 | 125,0 | 3,0 | DFT0905.. |
| — | — | DFT590R2WD50M | 59,00 | 60,00 | 180,0 | 125,0 | 3,0 | DFT0905.. |
| — | — | DFT600R2WD50M | 60,00 | 61,00 | 180,0 | 125,0 | 3,1 | DFT0905.. |
