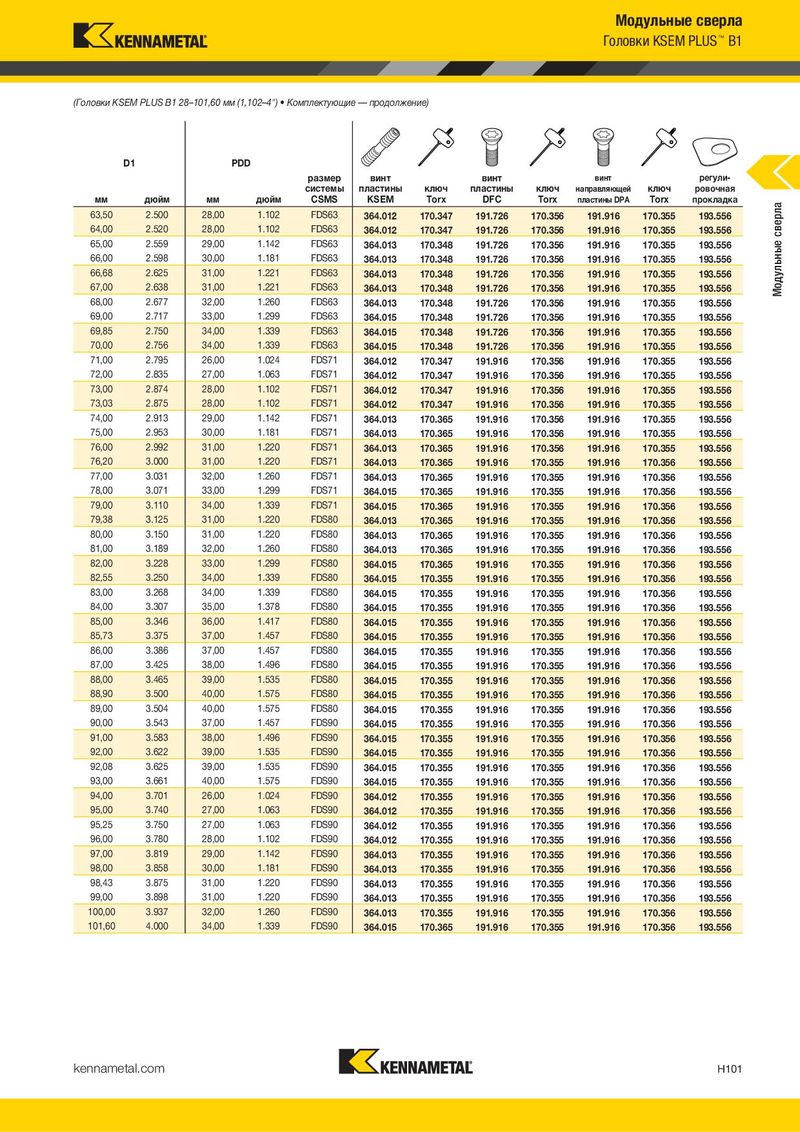

Модульные сверла Головки KSEM PLUS™ B1 (Головки KSEM PLUS B1 28–101,60 мм (1,102–4") • Комплектующие — продолжение) D1 PDD размер винт винт винт регули- системы пластины ключ пластины ключ направляющей ключ ровочная мм дюйм мм дюйм CSMS KSEM Torx DFC Torx пластины DPA Torx прокладка Модульные сверла 63,50 2.500 28,00 1.102 FDS63 364.012 170.347 191.726 170.356 191.916 170.355 193.556 64,00 2.520 28,00 1.102 FDS63 364.012 170.347 191.726 170.356 191.916 170.355 193.556 65,00 2.559 29,00 1.142 FDS63 364.013 170.348 191.726 170.356 191.916 170.355 193.556 66,00 2.598 30,00 1.181 FDS63 364.013 170.348 191.726 170.356 191.916 170.355 193.556 66,68 2.625 31,00 1.221 FDS63 364.013 170.348 191.726 170.356 191.916 170.355 193.556 67,00 2.638 31,00 1.221 FDS63 364.013 170.348 191.726 170.356 191.916 170.355 193.556 68,00 2.677 32,00 1.260 FDS63 364.013 170.348 191.726 170.356 191.916 170.355 193.556 69,00 2.717 33,00 1.299 FDS63 364.015 170.348 191.726 170.356 191.916 170.355 193.556 69,85 2.750 34,00 1.339 FDS63 364.015 170.348 191.726 170.356 191.916 170.355 193.556 70,00 2.756 34,00 1.339 FDS63 364.015 170.348 191.726 170.356 191.916 170.355 193.556 71,00 2.795 26,00 1.024 FDS71 364.012 170.347 191.916 170.356 191.916 170.355 193.556 72,00 2.835 27,00 1.063 FDS71 364.012 170.347 191.916 170.356 191.916 170.355 193.556 73,00 2.874 28,00 1.102 FDS71 364.012 170.347 191.916 170.356 191.916 170.355 193.556 73,03 2.875 28,00 1.102 FDS71 364.012 170.347 191.916 170.356 191.916 170.355 193.556 74,00 2.913 29,00 1.142 FDS71 364.013 170.365 191.916 170.356 191.916 170.355 193.556 75,00 2.953 30,00 1.181 FDS71 364.013 170.365 191.916 170.356 191.916 170.355 193.556 76,00 2.992 31,00 1.220 FDS71 364.013 170.365 191.916 170.356 191.916 170.355 193.556 76,20 3.000 31,00 1.220 FDS71 364.013 170.365 191.916 170.355 191.916 170.356 193.556 77,00 3.031 32,00 1.260 FDS71 364.013 170.365 191.916 170.355 191.916 170.356 193.556 78,00 3.071 33,00 1.299 FDS71 364.015 170.365 191.916 170.355 191.916 170.356 193.556 79,00 3.110 34,00 1.339 FDS71 364.015 170.365 191.916 170.355 191.916 170.356 193.556 79,38 3.125 31,00 1.220 FDS80 364.013 170.365 191.916 170.355 191.916 170.356 193.556 80,00 3.150 31,00 1.220 FDS80 364.013 170.365 191.916 170.355 191.916 170.356 193.556 81,00 3.189 32,00 1.260 FDS80 364.013 170.365 191.916 170.355 191.916 170.356 193.556 82,00 3.228 33,00 1.299 FDS80 364.015 170.365 191.916 170.355 191.916 170.356 193.556 82,55 3.250 34,00 1.339 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 83,00 3.268 34,00 1.339 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 84,00 3.307 35,00 1.378 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 85,00 3.346 36,00 1.417 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 85,73 3.375 37,00 1.457 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 86,00 3.386 37,00 1.457 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 87,00 3.425 38,00 1.496 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 88,00 3.465 39,00 1.535 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 88,90 3.500 40,00 1.575 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 89,00 3.504 40,00 1.575 FDS80 364.015 170.355 191.916 170.355 191.916 170.356 193.556 90,00 3.543 37,00 1.457 FDS90 364.015 170.355 191.916 170.355 191.916 170.356 193.556 91,00 3.583 38,00 1.496 FDS90 364.015 170.355 191.916 170.355 191.916 170.356 193.556 92,00 3.622 39,00 1.535 FDS90 364.015 170.355 191.916 170.355 191.916 170.356 193.556 92,08 3.625 39,00 1.535 FDS90 364.015 170.355 191.916 170.355 191.916 170.356 193.556 93,00 3.661 40,00 1.575 FDS90 364.015 170.355 191.916 170.355 191.916 170.356 193.556 94,00 3.701 26,00 1.024 FDS90 364.012 170.355 191.916 170.355 191.916 170.356 193.556 95,00 3.740 27,00 1.063 FDS90 364.012 170.355 191.916 170.355 191.916 170.356 193.556 95,25 3.750 27,00 1.063 FDS90 364.012 170.355 191.916 170.355 191.916 170.356 193.556 96,00 3.780 28,00 1.102 FDS90 364.012 170.355 191.916 170.355 191.916 170.356 193.556 97,00 3.819 29,00 1.142 FDS90 364.013 170.355 191.916 170.355 191.916 170.356 193.556 98,00 3.858 30,00 1.181 FDS90 364.013 170.355 191.916 170.355 191.916 170.356 193.556 98,43 3.875 31,00 1.220 FDS90 364.013 170.355 191.916 170.355 191.916 170.356 193.556 99,00 3.898 31,00 1.220 FDS90 364.013 170.355 191.916 170.355 191.916 170.356 193.556 100,00 3.937 32,00 1.260 FDS90 364.013 170.355 191.916 170.355 191.916 170.356 193.556 101,60 4.000 34,00 1.339 FDS90 364.015 170.365 191.916 170.355 191.916 170.356 193.556 kennametal.com H101
