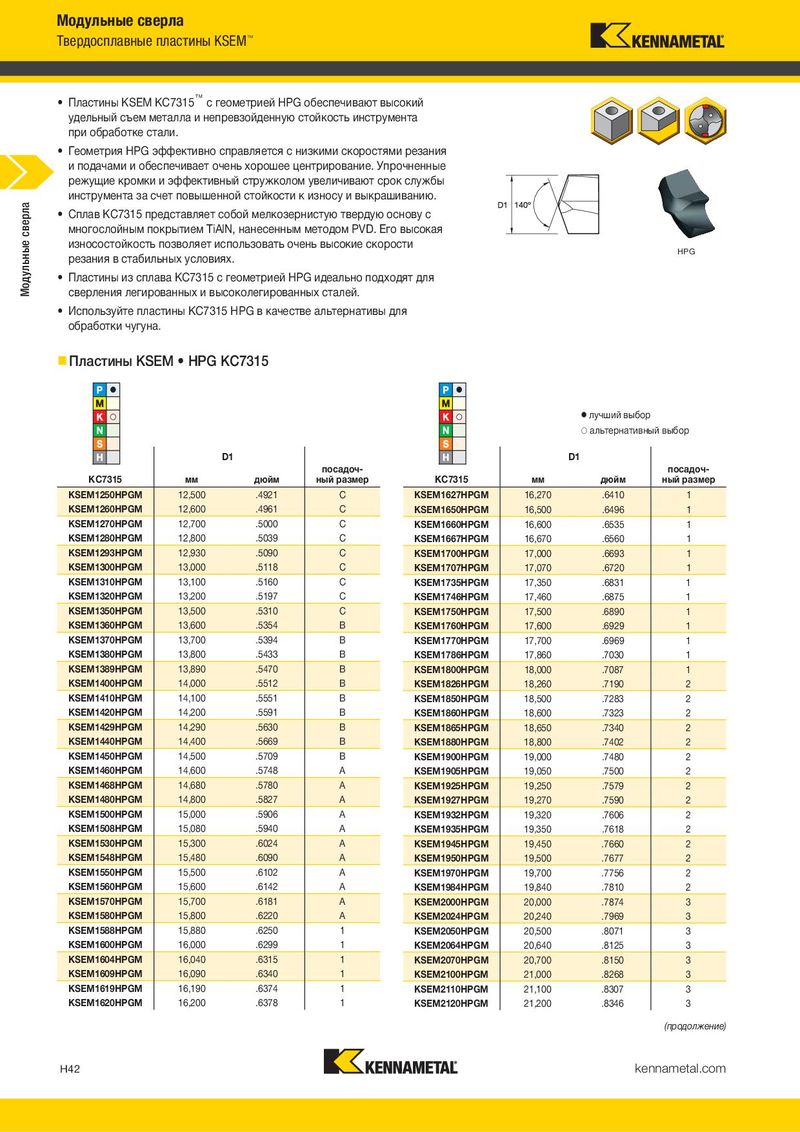

Основной каталог Kennametal вращающиеся инструменты 2018 - страница 230
Навигация
Каталог Kennametal инновации 2021.1
Монолитные концевые фрезы Kennametal 2024
Сменные фрезерные пластины сплавов KCK20B и KCKP10 Kennametal 2024
Оптимальный выбор Kennametal 2025 - 2026
Пластины с геометрией FV для токарной обработки Kennametal 2023
- Пластины KSEM KC7315™ с геометрией HPG обеспечивают высокий удельный съем металла и непревзойденную стойкость инструмента при обработке стали.
- Геометрия HPG эффективно справляется с низкими скоростями резания и подачами и обеспечивает очень хорошее центрирование. Упрочненные режущие кромки и эффективный стружколом увеличивают срок службы инструмента за счет повышенной стойкости к износу и выкрашиванию.
- Сплав KC7315 представляет собой мелкозернистую твердую основу с многослойным покрытием TiAlN, нанесенным методом PVD. Его высокая износостойкость позволяет использовать очень высокие скорости
HPG резания в стабильных условиях.
- Пластины из сплава KC7315 с геометрией HPG идеально подходят для сверления легированных и высоколегированных сталей.
- Используйте пластины KC7315 HPG в качестве альтернативы для обработки чугуна. Пластины KSEM HPG KC7315
лучший выбор альтернативный выбор
D1 D1 посадоч- посадоч-
| KC7315 мм | дюйм | ный размер | KC7315 мм | дюйм | ный размер | ||
| KSEM1250HPGM | 12,500 | .4921 | C | KSEM1627HPGM | 16,270 | .6410 | 1 |
| KSEM1260HPGM | 12,600 | .4961 | C | KSEM1650HPGM | 16,500 | .6496 | 1 |
| KSEM1270HPGM | 12,700 | .5000 | C | KSEM1660HPGM | 16,600 | .6535 | 1 |
| KSEM1280HPGM | 12,800 | .5039 | C | KSEM1667HPGM | 16,670 | .6560 | 1 |
| KSEM1293HPGM | 12,930 | .5090 | C | KSEM1700HPGM | 17,000 | .6693 | 1 |
| KSEM1300HPGM | 13,000 | .5118 | C | KSEM1707HPGM | 17,070 | .6720 | 1 |
| KSEM1310HPGM | 13,100 | .5160 | C | KSEM1735HPGM | 17,350 | .6831 | 1 |
| KSEM1320HPGM | 13,200 | .5197 | C | KSEM1746HPGM | 17,460 | .6875 | 1 |
| KSEM1350HPGM | 13,500 | .5310 | C | KSEM1750HPGM | 17,500 | .6890 | 1 |
| KSEM1360HPGM | 13,600 | .5354 | B | KSEM1760HPGM | 17,600 | .6929 | 1 |
| KSEM1370HPGM | 13,700 | .5394 | B | KSEM1770HPGM | 17,700 | .6969 | 1 |
| KSEM1380HPGM | 13,800 | .5433 | B | KSEM1786HPGM | 17,860 | .7030 | 1 |
| KSEM1389HPGM | 13,890 | .5470 | B | KSEM1800HPGM | 18,000 | .7087 | 1 |
| KSEM1400HPGM | 14,000 | .5512 | B | KSEM1826HPGM | 18,260 | .7190 | 2 |
| KSEM1410HPGM | 14,100 | .5551 | B | KSEM1850HPGM | 18,500 | .7283 | 2 |
| KSEM1420HPGM | 14,200 | .5591 | B | KSEM1860HPGM | 18,600 | .7323 | 2 |
| KSEM1429HPGM | 14,290 | .5630 | B | KSEM1865HPGM | 18,650 | .7340 | 2 |
| KSEM1440HPGM | 14,400 | .5669 | B | KSEM1880HPGM | 18,800 | .7402 | 2 |
| KSEM1450HPGM | 14,500 | .5709 | B | KSEM1900HPGM | 19,000 | .7480 | 2 |
| KSEM1460HPGM | 14,600 | .5748 | A | KSEM1905HPGM | 19,050 | .7500 | 2 |
| KSEM1468HPGM | 14,680 | .5780 | A | KSEM1925HPGM | 19,250 | .7579 | 2 |
| KSEM1480HPGM | 14,800 | .5827 | A | KSEM1927HPGM | 19,270 | .7590 | 2 |
| KSEM1500HPGM | 15,000 | .5906 | A | KSEM1932HPGM | 19,320 | .7606 | 2 |
| KSEM1508HPGM | 15,080 | .5940 | A | KSEM1935HPGM | 19,350 | .7618 | 2 |
| KSEM1530HPGM | 15,300 | .6024 | A | KSEM1945HPGM | 19,450 | .7660 | 2 |
| KSEM1548HPGM | 15,480 | .6090 | A | KSEM1950HPGM | 19,500 | .7677 | 2 |
| KSEM1550HPGM | 15,500 | .6102 | A | KSEM1970HPGM | 19,700 | .7756 | 2 |
| KSEM1560HPGM | 15,600 | .6142 | A | KSEM1984HPGM | 19,840 | .7810 | 2 |
(Пластины KSEM HPG KC7315 — продолжение)
лучший выбор альтернативный выбор
D1 D1 посадоч- посадоч-
| KC7315 мм | дюйм | ный размер | KC7315 мм | дюйм | ный размер | ||
| KSEM2133HPGM | 21,330 | .8398 | 3 | KSEM2955HPGM | 29,550 | 1.1634 | 7 |
| KSEM2143HPGM | 21,430 | .8440 | 3 | KSEM2973HPGM | 29,730 | 1.1705 | 7 |
| KSEM2150HPGM | 21,500 | .8460 | 3 | KSEM2977HPGM | 29,770 | 1.1720 | 7 |
| KSEM2170HPGM | 21,700 | .8543 | 3 | KSEM3000HPGM | 30,000 | 1.1811 | 7 |
| KSEM2183HPGM | 21,830 | .8590 | 3 | KSEM3016HPGM | 30,160 | 1.1875 | 8 |
| KSEM2200HPGM | 22,000 | .8661 | 3 | KSEM3050HPGM | 30,500 | 1.2008 | 8 |
| KSEM2210HPGM | 22,100 | .8701 | 4 | KSEM3056HPGM | 30,560 | 1.2030 | 8 |
| KSEM2215HPGM | 22,150 | .8720 | 4 | KSEM3096HPGM | 30,960 | 1.2190 | 8 |
| KSEM2223HPGM | 22,230 | .8750 | 4 | KSEM3100HPGM | 31,000 | 1.2205 | 8 |
| KSEM2244HPGM | 22,440 | .8840 | 4 | KSEM3125HPGM | 31,250 | 1.2303 | 8 |
| KSEM2250HPGM | 22,500 | .8858 | 4 | KSEM3150HPGM | 31,500 | 1.2402 | 8 |
| KSEM2262HPGM | 22,620 | .8906 | 4 | KSEM3175HPGM | 31,750 | 1.2500 | 8 |
| KSEM2300HPGM | 23,000 | .9055 | 4 | KSEM3200HPGM | 32,000 | 1.2598 | 8 |
| KSEM2305HPGM | 23,050 | .9075 | 4 | KSEM3220HPGM | 32,200 | 1.2677 | 9 |
| KSEM2310HPGM | 23,100 | .9094 | 4 | KSEM3234HPGM | 32,340 | 1.2732 | 9 |
| KSEM2325HPGM | 23,250 | .9154 | 4 | KSEM3250HPGM | 32,500 | 1.2795 | 9 |
| KSEM3254HPGM | 32,540 | 1.2810 | 9 | ||||
| KSEM2330HPGM | 23,300 | .9173 | 4 | ||||
| KSEM2342HPGM | 23,420 | .9220 | 4 | KSEM3294HPGM | 32,940 | 1.2970 | 9 |
| KSEM2350HPGM | 23,500 | .9252 | 4 | KSEM3300HPGM | 33,000 | 1.2992 | 9 |
| KSEM2381HPGM | 23,810 | .9375 | 4 | KSEM3334HPGM | 33,340 | 1.3130 | 9 |
| KSEM2400HPGM | 24,000 | .9449 | 4 | KSEM3350HPGM | 33,500 | 1.3189 | 9 |
| KSEM2430HPGM | 24,300 | .9567 | 5 | KSEM3373HPGM | 33,730 | 1.3280 | 9 |
| KSEM2450HPGM | 24,500 | .9646 | 5 | KSEM3400HPGM | 34,000 | 1.3386 | 9 |
| KSEM2461HPGM | 24,610 | .9690 | 5 | KSEM3413HPGM | 34,130 | 1.3440 | 9 |
| KSEM2470HPGM | 24,700 | .9724 | 5 | KSEM3450HPGM | 34,500 | 1.3583 | 9 |
| KSEM2500HPGM | 25,000 | .9843 | 5 | KSEM3493HPGM | 34,930 | 1.3750 | 9 |
| KSEM2540HPGM | 25,400 | 1.0000 | 5 | KSEM3500HPGM | 35,000 | 1.3780 | 9 |
| KSEM2550HPGM | 25,500 | 1.0039 | 5 | KSEM3550HPGM | 35,500 | 1.3976 | 9 |
| KSEM2554HPGM | 25,540 | 1.0055 | 5 | KSEM3572HPGM | 35,720 | 1.4060 | 9 |
| KSEM2560HPGM | 25,600 | 1.0080 | 5 | KSEM3600HPGM | 36,000 | 1.4173 | 9 |
| KSEM2565HPGM | 25,654 | 1.0100 | 5 | KSEM3612HPGM | 36,120 | 1.4220 | 10 |
| KSEM2567HPGM | 25,670 | 1.0106 | 5 | KSEM3650HPGM | 36,500 | 1.4375 | 10 |
| KSEM2600HPGM | 26,000 | 1.0236 | 5 | KSEM3651HPGM | 36,510 | 1.4375 | 10 |
| KSEM2619HPGM | 26,190 | 1.0310 | 6 | KSEM3700HPGM | 37,000 | 1.4567 | 10 |
| KSEM2650HPGM | 26,500 | 1.0433 | 6 | KSEM3731HPGM | 37,310 | 1.4690 | 10 |
| KSEM2653HPGM | 26,530 | 1.0445 | 6 | KSEM3750HPGM | 37,500 | 1.4764 | 10 |
| KSEM2659HPGM | 26,590 | 1.0470 | 6 | KSEM3800HPGM | 38,000 | 1.4961 | 10 |
| KSEM2670HPGM | 26,700 | 1.0512 | 6 | KSEM3810HPGM | 38,100 | 1.5000 | 10 |
| KSEM2700HPGM | 27,000 | 1.0630 | 6 | KSEM3846HPGM | 38,460 | 1.5142 | 10 |
| KSEM2750HPGM | 27,500 | 1.0827 | 6 | KSEM3850HPGM | 38,500 | 1.5157 | 10 |
| KSEM2778HPGM | 27,780 | 1.0940 | 6 | KSEM3900HPGM | 39,000 | 1.5354 | 10 |
| KSEM2800HPGM | 28,000 | 1.1024 | 6 | KSEM3950HPGM | 39,500 | 1.5551 | 10 |
| KSEM2818HPGM | 28,180 | 1.1090 | 7 | KSEM3975HPGM | 39,750 | 1.5650 | 10 |
| KSEM2850HPGM | 28,500 | 1.1220 | 7 | KSEM4000HPGM | 40,000 | 1.5748 | 10 |
| KSEM2858HPGM | 28,580 | 1.1250 | 7 | ||||
| KSEM2900HPGM | 29,000 | 1.1417 | 7 |
| KC7315 | мм D1 | дюйм | посадоч- ныйразмер | KC7315 | мм D | дюйм 1 | посадоч- ныйразмер |
| KSEM1250HPGM | 12,500 | .4921 | C | KSEM1627HPGM | 16,270 | .6410 | 1 |
| KSEM1260HPGM | 12,600 | .4961 | C | KSEM1650HPGM | 16,500 | .6496 | 1 |
| KSEM1270HPGM | 12,700 | .5000 | C | KSEM1660HPGM | 16,600 | .6535 | 1 |
| KSEM1280HPGM | 12,800 | .5039 | C | KSEM1667HPGM | 16,670 | .6560 | 1 |
| KSEM1293HPGM | 12,930 | .5090 | C | KSEM1700HPGM | 17,000 | .6693 | 1 |
| KSEM1300HPGM | 13,000 | .5118 | C | KSEM1707HPGM | 17,070 | .6720 | 1 |
| KSEM1310HPGM | 13,100 | .5160 | C | KSEM1735HPGM | 17,350 | .6831 | 1 |
| KSEM1320HPGM | 13,200 | .5197 | C | KSEM1746HPGM | 17,460 | .6875 | 1 |
| KSEM1350HPGM | 13,500 | .5310 | C | KSEM1750HPGM | 17,500 | .6890 | 1 |
| KSEM1360HPGM | 13,600 | .5354 | B | KSEM1760HPGM | 17,600 | .6929 | 1 |
| KSEM1370HPGM | 13,700 | .5394 | B | KSEM1770HPGM | 17,700 | .6969 | 1 |
| KSEM1380HPGM | 13,800 | .5433 | B | KSEM1786HPGM | 17,860 | .7030 | 1 |
| KSEM1389HPGM | 13,890 | .5470 | B | KSEM1800HPGM | 18,000 | .7087 | 1 |
| KSEM1400HPGM | 14,000 | .5512 | B | KSEM1826HPGM | 18,260 | .7190 | 2 |
| KSEM1410HPGM | 14,100 | .5551 | B | KSEM1850HPGM | 18,500 | .7283 | 2 |
| KSEM1420HPGM | 14,200 | .5591 | B | KSEM1860HPGM | 18,600 | .7323 | 2 |
| KSEM1429HPGM | 14,290 | .5630 | B | KSEM1865HPGM | 18,650 | .7340 | 2 |
| KSEM1440HPGM | 14,400 | .5669 | B | KSEM1880HPGM | 18,800 | .7402 | 2 |
| KSEM1450HPGM | 14,500 | .5709 | B | KSEM1900HPGM | 19,000 | .7480 | 2 |
| KSEM1460HPGM | 14,600 | .5748 | A | KSEM1905HPGM | 19,050 | .7500 | 2 |
| KSEM1468HPGM | 14,680 | .5780 | A | KSEM1925HPGM | 19,250 | .7579 | 2 |
| KSEM1480HPGM | 14,800 | .5827 | A | KSEM1927HPGM | 19,270 | .7590 | 2 |
| KSEM1500HPGM | 15,000 | .5906 | A | KSEM1932HPGM | 19,320 | .7606 | 2 |
| KSEM1508HPGM | 15,080 | .5940 | A | KSEM1935HPGM | 19,350 | .7618 | 2 |
| KSEM1530HPGM | 15,300 | .6024 | A | KSEM1945HPGM | 19,450 | .7660 | 2 |
| KSEM1548HPGM | 15,480 | .6090 | A | KSEM1950HPGM | 19,500 | .7677 | 2 |
| KSEM1550HPGM | 15,500 | .6102 | A | KSEM1970HPGM | 19,700 | .7756 | 2 |
| KSEM1560HPGM | 15,600 | .6142 | A | KSEM1984HPGM | 19,840 | .7810 | 2 |
| KSEM1570HPGM | 15,700 | .6181 | A | KSEM2000HPGM | 20,000 | .7874 | 3 |
| KSEM1580HPGM | 15,800 | .6220 | A | KSEM2024HPGM | 20,240 | .7969 | 3 |
| KSEM1588HPGM | 15,880 | .6250 | 1 | KSEM2050HPGM | 20,500 | .8071 | 3 |
| KSEM1600HPGM | 16,000 | .6299 | 1 | KSEM2064HPGM | 20,640 | .8125 | 3 |
| KSEM1604HPGM | 16,040 | .6315 | 1 | KSEM2070HPGM | 20,700 | .8150 | 3 |
| KSEM1609HPGM | 16,090 | .6340 | 1 | KSEM2100HPGM | 21,000 | .8268 | 3 |
| KSEM1619HPGM | 16,190 | .6374 | 1 | KSEM2110HPGM | 21,100 | .8307 | 3 |
| KSEM1620HPGM | 16,200 | .6378 | 1 | KSEM2120HPGM | 21,200 | .8346 | 3 |
