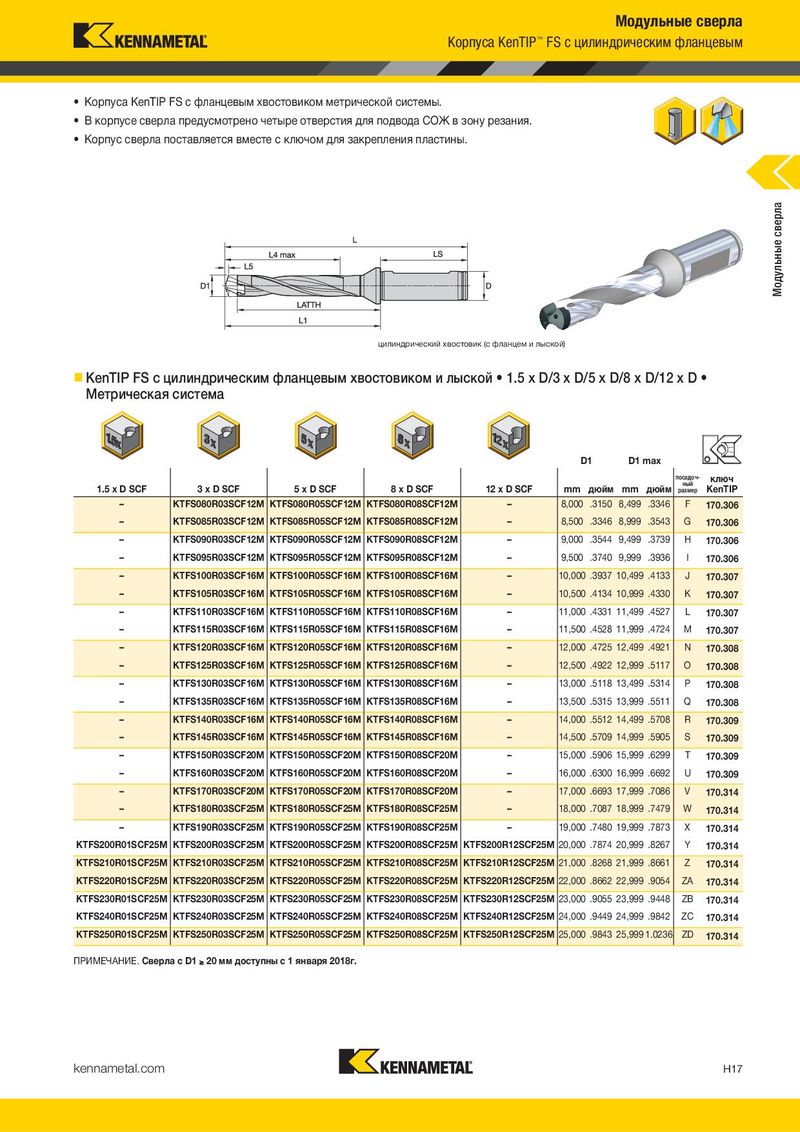

Корпуса KenTIP™ FS с цилиндрическим хвостовиком Корпуса KenTIP™ FS с цилиндрическим фланцевым
- Корпуса KenTIP FS с цилиндрическим хвостовиком метрической системы.
- Корпуса KenTIP FS с фланцевым хвостовиком метрической системы.
- Сверла длиной 12 x D имеют цилиндрический хвостовик с фланцем для повышенной надежности.
- В корпусе сверла предусмотрено четыре отверстия для подвода СОЖ в зону резания.
- В корпусе сверла предусмотрено четыре отверстия для подвода СОЖ в зону резания.
- Корпус сверла поставляется вместе с ключом для закрепления пластины.
- Корпус сверла поставляется вместе с ключом для закрепления пластины.
цилиндрический хвостовик цилиндрический хвостовик (c фланцем и лыской)
KenTIP FS с цилиндрическим фланцевым хвостовиком и лыской 1.5 x D/3 x D/5 x D/8 x D/12 x D
Метрическая система
цилиндрический хвостовик (c фланцем) D1 D1 max
KenTIP FS с цилиндрическим хвостовиком 1.5 x D/3 x D/5 x D/8 x D/12 x D Метрическая система
посадоч- ключ ный
| 1.5 x D SCF | 12 x D SCF 8 x D SCF 5 x D SCF 3 x D SCF | mm дюйм mm дюйм | размер | KenTIP | ||
| – | KTFS080R03SCF12M KTFS080R05SCF12M KTFS080R08SCF12M | – | 8,000 .3150 8,499 .3346 | F | 170.306 | |
| – | KTFS085R03SCF12M KTFS085R05SCF12M KTFS085R08SCF12M | – | 8,500 .3346 8,999 .3543 | G | 170.306 | |
| – | KTFS090R03SCF12M KTFS090R05SCF12M KTFS090R08SCF12M | – | 9,000 .3544 9,499 .3739 | H | 170.306 | |
| D1 max D1 | – | KTFS095R03SCF12M KTFS095R05SCF12M KTFS095R08SCF12M | – | 9,500 .3740 9,999 .3936 | I | 170.306 |
| посадоч- | ключ – | KTFS100R03SCF16M KTFS100R05SCF16M KTFS100R08SCF16M | – | 10,000 .3937 10,499 .4133 | J | |
| ный | 170.307 |
1.5 x D SS 3 x D SS 5 x D SS 8 x D SS 12 x D SF mm дюйм mm дюйм размер KenTIP
– KTFS105R03SCF16M KTFS105R05SCF16M KTFS105R08SCF16M – 10,500 .4134 10,999 .4330 K 170.307
| KTFS060R01SS8M | KTFS060R12SF12M KTFS060R08SS8M KTFS060R05SS8M KTFS060R03SS8M 6,000 .2363 6,299 .2480 | A | 170.319 | ||||||
| KTFS063R01SS8M | KTFS063R12SF12M KTFS063R08SS8M KTFS063R05SS8M KTFS063R03SS8M 6,300 .2481 6,599 .2598 | B | 170.319 | – | KTFS110R03SCF16M KTFS110R05SCF16M KTFS110R08SCF16M | – | 11,000 .4331 11,499 .4527 | L | 170.307 |
| KTFS066R01SS8M | KTFS066R12SF12M KTFS066R08SS8M KTFS066R05SS8M KTFS066R03SS8M 6,600 .2599 6,999 .2755 | C | 170.319 | – | KTFS115R03SCF16M KTFS115R05SCF16M KTFS115R08SCF16M | – | 11,500 .4528 11,999 .4724 | M | 170.307 |
| KTFS070R01SS8M | KTFS070R12SF12M KTFS070R08SS8M KTFS070R05SS8M KTFS070R03SS8M 7,000 .2756 7,499 .2952 | D | 170.319 | – | KTFS120R03SCF16M KTFS120R05SCF16M KTFS120R08SCF16M | – | 12,000 .4725 12,499 .4921 | N | |
| 170.308 | |||||||||
| KTFS075R01SS8M | KTFS075R12SF12M KTFS075R08SS8M KTFS075R05SS8M KTFS075R03SS8M 7,500 .2953 7,999 .3149 | E | 170.319 | ||||||
| – | KTFS125R03SCF16M KTFS125R05SCF16M KTFS125R08SCF16M | – | 12,500 .4922 12,999 .5117 | O | 170.308 | ||||
| KTFS080R01SS10M KTFS080R03SS10M KTFS080R05SS10M KTFS080R08SS10M KTFS080R12SF12M | 8,000 .3150 8,499 .3346 | F | 170.306 | ||||||
| – | KTFS130R03SCF16M KTFS130R05SCF16M KTFS130R08SCF16M | – | 13,000 .5118 13,499 .5314 | P | 170.308 | ||||
| KTFS085R01SS10M KTFS085R03SS10M KTFS085R05SS10M KTFS085R08SS10M KTFS085R12SF12M | 8,500 .3346 8,999 .3543 | G | 170.306 | ||||||
| KTFS090R01SS10M KTFS090R03SS10M KTFS090R05SS10M KTFS090R08SS10M KTFS090R12SF12M | 9,000 .3544 9,499 .3739 | H | 170.306 | – | KTFS135R03SCF16M KTFS135R05SCF16M KTFS135R08SCF16M | – | 13,500 .5315 13,999 .5511 | Q | 170.308 |
| KTFS095R01SS10M KTFS095R03SS10M KTFS095R05SS10M KTFS095R08SS10M KTFS095R12SF12M | 9,500 .3740 9,999 .3936 | I | 170.306 | – | KTFS140R03SCF16M KTFS140R05SCF16M KTFS140R08SCF16M | – | 14,000 .5512 14,499 .5708 | R | 170.309 |
| KTFS100R01SS12M KTFS100R03SS12M KTFS100R05SS12M KTFS100R08SS12M KTFS100R12SF16M | 10,000 .3937 10,499 .4133 | J | 170.307 | – | KTFS145R03SCF16M KTFS145R05SCF16M KTFS145R08SCF16M | – | 14,500 .5709 14,999 .5905 | S | |
| 170.309 | |||||||||
| KTFS105R01SS12M KTFS105R03SS12M KTFS105R05SS12M KTFS105R08SS12M KTFS105R12SF16M | 10,500 .4134 10,999 .4330 | K | 170.307 | ||||||
| – | KTFS150R03SCF20M KTFS150R05SCF20M KTFS150R08SCF20M | – | 15,000 .5906 15,999 .6299 | T | 170.309 | ||||
| KTFS110R01SS12M KTFS110R03SS12M KTFS110R05SS12M KTFS110R08SS12M KTFS110R12SF16M | 11,000 .4331 11,499 .4527 | L | 170.307 | ||||||
| – | KTFS160R03SCF20M KTFS160R05SCF20M KTFS160R08SCF20M | – | 16,000 .6300 16,999 .6692 | U | 170.309 | ||||
| KTFS115R01SS12M KTFS115R03SS12M KTFS115R05SS12M KTFS115R08SS12M KTFS115R12SF16M | 11,500 .4528 11,999 .4724 | M | 170.307 | ||||||
| KTFS120R01SS14M KTFS120R03SS14M KTFS120R05SS14M KTFS120R08SS14M KTFS120R12SF16M | 12,000 .4725 12,499 .4921 | N | 170.308 | – | KTFS170R03SCF20M KTFS170R05SCF20M KTFS170R08SCF20M | – | 17,000 .6693 17,999 .7086 | V | 170.314 |
| KTFS125R01SS14M KTFS125R03SS14M KTFS125R05SS14M KTFS125R08SS14M KTFS125R12SF16M | 12,500 .4922 12,999 .5117 | O | 170.308 | – | KTFS180R03SCF25M KTFS180R05SCF25M KTFS180R08SCF25M | – | 18,000 .7087 18,999 .7479 | W | 170.314 |
| KTFS130R01SS14M KTFS130R03SS14M KTFS130R05SS14M KTFS130R08SS14M KTFS130R12SF16M | 13,000 .5118 13,499 .5314 | P | 170.308 | – | KTFS190R03SCF25M KTFS190R05SCF25M KTFS190R08SCF25M | – | 19,000 .7480 19,999 .7873 | X | |
| 170.314 | |||||||||
| KTFS135R01SS14M KTFS135R03SS14M KTFS135R05SS14M KTFS135R08SS14M KTFS135R12SF16M | 13,500 .5315 13,999 .5511 | Q | 170.308 | ||||||
| KTFS200R01SCF25M KTFS200R03SCF25M KTFS200R05SCF25M KTFS200R08SCF25M KTFS200R12SCF25M 20,000 .7874 20,999 .8267 | Y | 170.314 | |||||||
| KTFS140R01SS16M KTFS140R03SS16M KTFS140R05SS16M KTFS140R08SS16M KTFS140R12SF16M | 14,000 .5512 14,499 .5708 | R | 170.309 | ||||||
| KTFS210R01SCF25M KTFS210R03SCF25M KTFS210R05SCF25M KTFS210R08SCF25M KTFS210R12SCF25M 21,000 .8268 21,999 .8661 | Z | 170.314 | |||||||
| KTFS145R01SS16M KTFS145R03SS16M KTFS145R05SS16M KTFS145R08SS16M KTFS145R12SF16M | 14,500 .5709 14,999 .5905 | S | 170.309 | ||||||
| KTFS150R01SS16M KTFS150R03SS16M KTFS150R05SS16M KTFS150R08SS16M KTFS150R12SF20M | 15,000 .5906 15,999 .6299 | T | 170.309 | KTFS220R01SCF25M KTFS220R03SCF25M KTFS220R05SCF25M KTFS220R08SCF25M KTFS220R12SCF25M 22,000 .8662 22,999 .9054 | ZA | 170.314 | |||
| KTFS160R01SS16M KTFS160R03SS16M KTFS160R05SS16M KTFS160R08SS16M KTFS160R12SF20M | 16,000 .6300 16,999 .6692 | U | 170.309 | KTFS230R01SCF25M KTFS230R03SCF25M KTFS230R05SCF25M KTFS230R08SCF25M KTFS230R12SCF25M 23,000 .9055 23,999 .9448 | ZB | 170.314 |
| D1 D1 max | посадоч- ный ключ | |||||
| 1.5 x D SCF | 3 x D SCF | 5 x D SCF | 8 x D SCF | 12 x D SCF | mm дюйм mm дюйм | размер KenTIP |
| – | KTFS080R03SCF12M | KTFS080R05SCF12M | KTFS080R08SCF12M | – | 8,000 .3150 8,499 .3346 | F 170.306 |
| – | KTFS085R03SCF12M | KTFS085R05SCF12M | KTFS085R08SCF12M | – | 8,500 .3346 8,999 .3543 | G 170.306 |
| – | KTFS090R03SCF12M | KTFS090R05SCF12M | KTFS090R08SCF12M | – | 9,000 .3544 9,499 .3739 | H 170.306 |
| – | KTFS095R03SCF12M | KTFS095R05SCF12M | KTFS095R08SCF12M | – | 9,500 .3740 9,999 .3936 | I 170.306 |
| – | KTFS100R03SCF16M | KTFS100R05SCF16M | KTFS100R08SCF16M | – | 10,000 .3937 10,499 .4133 | J 170.307 |
| – | KTFS105R03SCF16M | KTFS105R05SCF16M | KTFS105R08SCF16M | – | 10,500 .4134 10,999 .4330 | K 170.307 |
| – | KTFS110R03SCF16M | KTFS110R05SCF16M | KTFS110R08SCF16M | – | 11,000 .4331 11,499 .4527 | L 170.307 |
| – | KTFS115R03SCF16M | KTFS115R05SCF16M | KTFS115R08SCF16M | – | 11,500 .4528 11,999 .4724 | M 170.307 |
| – | KTFS120R03SCF16M | KTFS120R05SCF16M | KTFS120R08SCF16M | – | 12,000 .4725 12,499 .4921 | N 170.308 |
| – | KTFS125R03SCF16M | KTFS125R05SCF16M | KTFS125R08SCF16M | – | 12,500 .4922 12,999 .5117 | O 170.308 |
| – | KTFS130R03SCF16M | KTFS130R05SCF16M | KTFS130R08SCF16M | – | 13,000 .5118 13,499 .5314 | P 170.308 |
| – | KTFS135R03SCF16M | KTFS135R05SCF16M | KTFS135R08SCF16M | – | 13,500 .5315 13,999 .5511 | Q 170.308 |
| – | KTFS140R03SCF16M | KTFS140R05SCF16M | KTFS140R08SCF16M | – | 14,000 .5512 14,499 .5708 | R 170.309 |
| – | KTFS145R03SCF16M | KTFS145R05SCF16M | KTFS145R08SCF16M | – | 14,500 .5709 14,999 .5905 | S 170.309 |
| – | KTFS150R03SCF20M | KTFS150R05SCF20M | KTFS150R08SCF20M | – | 15,000 .5906 15,999 .6299 | T 170.309 |
| – | KTFS160R03SCF20M | KTFS160R05SCF20M | KTFS160R08SCF20M | – | 16,000 .6300 16,999 .6692 | U 170.309 |
| – | KTFS170R03SCF20M | KTFS170R05SCF20M | KTFS170R08SCF20M | – | 17,000 .6693 17,999 .7086 | V 170.314 |
| – | KTFS180R03SCF25M | KTFS180R05SCF25M | KTFS180R08SCF25M | – | 18,000 .7087 18,999 .7479 | W 170.314 |
| – | KTFS190R03SCF25M | KTFS190R05SCF25M | KTFS190R08SCF25M | – | 19,000 .7480 19,999 .7873 | X 170.314 |
| KTFS200R01SCF25M | KTFS200R03SCF25M | KTFS200R05SCF25M | KTFS200R08SCF25M | KTFS200R12SCF25M | 20,000 .7874 20,999 .8267 | Y 170.314 |
| KTFS210R01SCF25M | KTFS210R03SCF25M | KTFS210R05SCF25M | KTFS210R08SCF25M | KTFS210R12SCF25M | 21,000 .8268 21,999 .8661 | Z 170.314 |
| KTFS220R01SCF25M | KTFS220R03SCF25M | KTFS220R05SCF25M | KTFS220R08SCF25M | KTFS220R12SCF25M | 22,000 .8662 22,999 .9054 | ZA 170.314 |
| KTFS230R01SCF25M | KTFS230R03SCF25M | KTFS230R05SCF25M | KTFS230R08SCF25M | KTFS230R12SCF25M | 23,000 .9055 23,999 .9448 | ZB 170.314 |
| KTFS240R01SCF25M | KTFS240R03SCF25M | KTFS240R05SCF25M | KTFS240R08SCF25M | KTFS240R12SCF25M | 24,000 .9449 24,999 .9842 | ZC 170.314 |
| KTFS250R01SCF25M | KTFS250R03SCF25M | KTFS250R05SCF25M | KTFS250R08SCF25M | KTFS250R12SCF25M | 25,000 .9843 25,999 1.0236 | ZD 170.314 |
170.314
