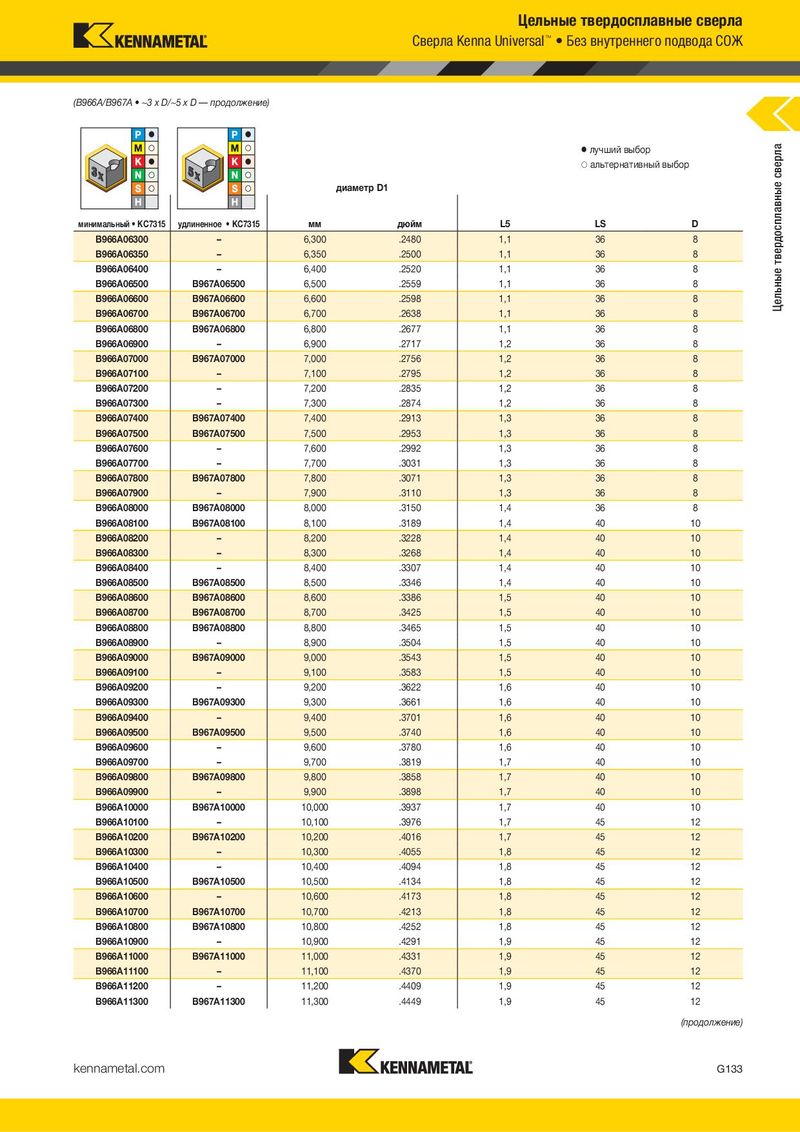

Основной каталог Kennametal вращающиеся инструменты 2018 - страница 167
Навигация
Каталог Kennametal инновации 2021.1
Монолитные концевые фрезы Kennametal 2024
Сменные фрезерные пластины сплавов KCK20B и KCKP10 Kennametal 2024
Оптимальный выбор Kennametal 2025 - 2026
Пластины с геометрией FV для токарной обработки Kennametal 2023
(B966A/B967A • ~3 x D/~5 x D — продолжение)
лучший выбор альтернативный выбор диаметр D1
| минимальный • KC7315 | удлиненное • KC7315 | мм | дюйм | L5 | LS | D | |||
| B966A06300 | – | 6,300 | .2480 | 1,1 | 36 | 8 | |||
| B966A06350 | – | 6,350 | .2500 | 1,1 | 36 | 8 | |||
| B966A06400 | – | 6,400 | .2520 | 1,1 | 36 | 8 | |||
| B966A06500 | B967A06500 | 6,500 | .2559 | 1,1 | 36 | 8 |
| �лучший выбор | |||||
| диам | етр D1 | �альтернативный выбор | |||
| минимальный • KC7315 | удлиненное • KC7315 | мм | дюйм | L5 | LS D |
| B966A06300 | – | 6,300 | .2480 | 1,1 | 36 8 |
| B966A06350 | – | 6,350 | .2500 | 1,1 | 36 8 |
| B966A06400 | – | 6,400 | .2520 | 1,1 | 36 8 |
| B966A06500 | B967A06500 | 6,500 | .2559 | 1,1 | 36 8 |
| B966A06600 | B967A06600 | 6,600 | .2598 | 1,1 | 36 8 |
| B966A06700 | B967A06700 | 6,700 | .2638 | 1,1 | 36 8 |
| B966A06800 | B967A06800 | 6,800 | .2677 | 1,1 | 36 8 |
| B966A06900 | – | 6,900 | .2717 | 1,2 | 36 8 |
| B966A07000 | B967A07000 | 7,000 | .2756 | 1,2 | 36 8 |
| B966A07100 | – | 7,100 | .2795 | 1,2 | 36 8 |
| B966A07200 | – | 7,200 | .2835 | 1,2 | 36 8 |
| B966A07300 | – | 7,300 | .2874 | 1,2 | 36 8 |
| B966A07400 | B967A07400 | 7,400 | .2913 | 1,3 | 36 8 |
| B966A07500 | B967A07500 | 7,500 | .2953 | 1,3 | 36 8 |
| B966A07600 | – | 7,600 | .2992 | 1,3 | 36 8 |
| B966A07700 | – | 7,700 | .3031 | 1,3 | 36 8 |
| B966A07800 | B967A07800 | 7,800 | .3071 | 1,3 | 36 8 |
| B966A07900 | – | 7,900 | .3110 | 1,3 | 36 8 |
| B966A08000 | B967A08000 | 8,000 | .3150 | 1,4 | 36 8 |
| B966A08100 | B967A08100 | 8,100 | .3189 | 1,4 | 40 10 |
| B966A08200 | – | 8,200 | .3228 | 1,4 | 40 10 |
| B966A08300 | – | 8,300 | .3268 | 1,4 | 40 10 |
| B966A08400 | – | 8,400 | .3307 | 1,4 | 40 10 |
| B966A08500 | B967A08500 | 8,500 | .3346 | 1,4 | 40 10 |
| B966A08600 | B967A08600 | 8,600 | .3386 | 1,5 | 40 10 |
| B966A08700 | B967A08700 | 8,700 | .3425 | 1,5 | 40 10 |
| B966A08800 | B967A08800 | 8,800 | .3465 | 1,5 | 40 10 |
| B966A08900 | – | 8,900 | .3504 | 1,5 | 40 10 |
| B966A09000 | B967A09000 | 9,000 | .3543 | 1,5 | 40 10 |
| B966A09100 | – | 9,100 | .3583 | 1,5 | 40 10 |
| B966A09200 | – | 9,200 | .3622 | 1,6 | 40 10 |
| B966A09300 | B967A09300 | 9,300 | .3661 | 1,6 | 40 10 |
| B966A09400 | – | 9,400 | .3701 | 1,6 | 40 10 |
| B966A09500 | B967A09500 | 9,500 | .3740 | 1,6 | 40 10 |
| B966A09600 | – | 9,600 | .3780 | 1,6 | 40 10 |
| B966A09700 | – | 9,700 | .3819 | 1,7 | 40 10 |
| B966A09800 | B967A09800 | 9,800 | .3858 | 1,7 | 40 10 |
| B966A09900 | – | 9,900 | .3898 | 1,7 | 40 10 |
| B966A10000 | B967A10000 | 10,000 | .3937 | 1,7 | 40 10 |
| B966A10100 | – | 10,100 | .3976 | 1,7 | 45 12 |
| B966A10200 | B967A10200 | 10,200 | .4016 | 1,7 | 45 12 |
| B966A10300 | – | 10,300 | .4055 | 1,8 | 45 12 |
| B966A10400 | – | 10,400 | .4094 | 1,8 | 45 12 |
| B966A10500 | B967A10500 | 10500 | 4134 | 18 | 45 12 |
| B966A10600 | – | , 10,600 | . .4173 | , 1,8 | 45 12 |
| B966A10700 | B967A10700 | 10,700 | .4213 | 1,8 | 45 12 |
| B966A10800 | B967A10800 | 10,800 | .4252 | 1,8 | 45 12 |
| B966A10900 | – | 10,900 | .4291 | 1,9 | 45 12 |
| B966A11000 | B967A11000 | 11,000 | .4331 | 1,9 | 45 12 |
| B966A11100 | – | 11,100 | .4370 | 1,9 | 45 12 |
| B966A11200 | – | 11200 | 4409 | 19 | 45 12 |
| B966A11300 | B967A11300 | , 11,300 | . .4449 | , 1,9 | 45 12 |
