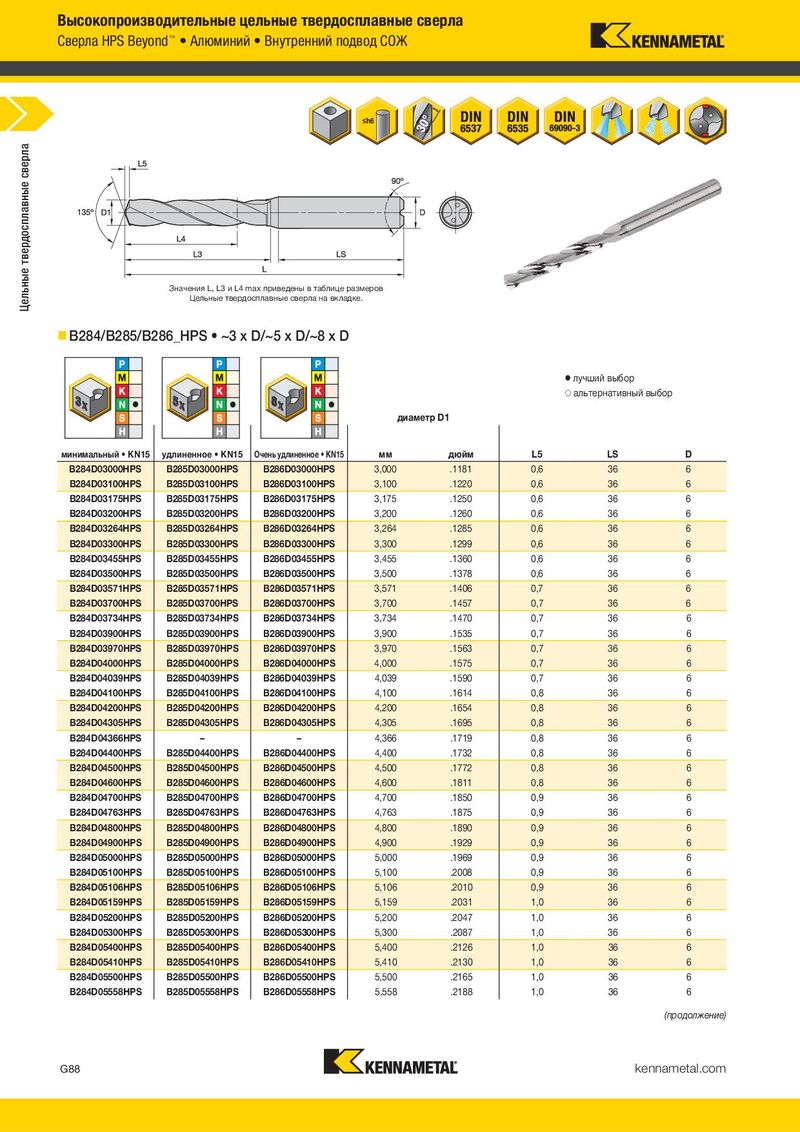

Основной каталог Kennametal вращающиеся инструменты 2018 - страница 122
Навигация
Каталог Kennametal инновации 2021.1
Монолитные концевые фрезы Kennametal 2024
Сменные фрезерные пластины сплавов KCK20B и KCKP10 Kennametal 2024
Оптимальный выбор Kennametal 2025 - 2026
Пластины с геометрией FV для токарной обработки Kennametal 2023
Сверла HPS Beyond™ • Алюминий • Внутренний подвод СОЖ Сверла HPS Beyond™ • Алюминий • Внутренний подвод СОЖ
(B284/B285/B286_HPS • ~3 x D/~5 x D/~8 x D — продолжение)
Значения L, L3 и L4 max приведены в таблице размеров Цельные твердосплавные сверла на вкладке.
B284/B285/B286_HPS • ~3 x D/~5 x D/~8 x D
лучший выбор альтернативный выбор диаметр D1
| минимальный • KN15 | удлиненное • KN15 | Очень удлиненное • KN15 | мм | дюйм | L5 | LS | D |
| B284D03000HPS | B285D03000HPS | B286D03000HPS | 3,000 | .1181 | 0,6 | 36 | 6 |
| B284D03100HPS | B285D03100HPS | B286D03100HPS | 3,100 | .1220 | 0,6 | 36 | 6 |
| B284D03175HPS | B285D03175HPS | B286D03175HPS | 3,175 | .1250 | 0,6 | 36 | 6 |
| B284D03200HPS | B285D03200HPS | B286D03200HPS | 3,200 | .1260 | 0,6 | 36 | 6 |
| B284D03264HPS | B285D03264HPS | B286D03264HPS | 3,264 | .1285 | 0,6 | 36 | 6 |
| B284D03300HPS | B285D03300HPS | B286D03300HPS | 3,300 | .1299 | 0,6 | 36 | 6 |
| B284D03455HPS | B285D03455HPS | B286D03455HPS | 3,455 | .1360 | 0,6 | 36 | 6 |
| B284D03500HPS | B285D03500HPS | B286D03500HPS | 3,500 | .1378 | 0,6 | 36 | 6 |
| B284D03571HPS | B285D03571HPS | B286D03571HPS | 3,571 | .1406 | 0,7 | 36 | 6 |
| B284D03700HPS | B285D03700HPS | B286D03700HPS | 3,700 | .1457 | 0,7 | 36 | 6 |
| B284D03734HPS | B285D03734HPS | B286D03734HPS | 3,734 | .1470 | 0,7 | 36 | 6 |
| B284D03900HPS | B285D03900HPS | B286D03900HPS | 3,900 | .1535 | 0,7 | 36 | 6 |
| B284D03970HPS | B285D03970HPS | B286D03970HPS | 3,970 | .1563 | 0,7 | 36 | 6 |
| B284D04000HPS | B285D04000HPS | B286D04000HPS | 4,000 | .1575 | 0,7 | 36 | 6 |
| B284D04039HPS | B285D04039HPS | B286D04039HPS | 4,039 | .1590 | 0,7 | 36 | 6 |
| B284D04100HPS | B285D04100HPS | B286D04100HPS | 4,100 | .1614 | 0,8 | 36 | 6 |
| B284D04200HPS | B285D04200HPS | B286D04200HPS | 4,200 | .1654 | 0,8 | 36 | 6 |
| B284D04305HPS | B285D04305HPS | B286D04305HPS | 4,305 | .1695 | 0,8 | 36 | 6 |
| B284D04366HPS | – | – 4,366 | .1719 | 0,8 | 36 | 6 | |
| B284D04400HPS | B285D04400HPS | B286D04400HPS | 4,400 | .1732 | 0,8 | 36 | 6 |
| B284D04500HPS | B285D04500HPS | B286D04500HPS | 4,500 | .1772 | 0,8 | 36 | 6 |
| B284D04600HPS | B285D04600HPS | B286D04600HPS | 4,600 | .1811 | 0,8 | 36 | 6 |
| B284D04700HPS | B285D04700HPS | B286D04700HPS | 4,700 | .1850 | 0,9 | 36 | 6 |
| B284D04763HPS | B285D04763HPS | B286D04763HPS | 4,763 | .1875 | 0,9 | 36 | 6 |
| B284D04800HPS | B285D04800HPS | B286D04800HPS | 4,800 | .1890 | 0,9 | 36 | 6 |
| B284D04900HPS | B285D04900HPS | B286D04900HPS | 4,900 | .1929 | 0,9 | 36 | 6 |
| B284D05000HPS | B285D05000HPS | B286D05000HPS | 5,000 | .1969 | 0,9 | 36 | 6 |
| B284D05100HPS | B285D05100HPS | B286D05100HPS | 5,100 | .2008 | 0,9 | 36 | 6 |
| B284D05106HPS | B285D05106HPS | B286D05106HPS | 5,106 | .2010 | 0,9 | 36 | 6 |
| B284D05159HPS | B285D05159HPS | B286D05159HPS | 5,159 | .2031 | 1,0 | 36 | 6 |
| B284D05200HPS | B285D05200HPS | B286D05200HPS | 5,200 | .2047 | 1,0 | 36 | 6 |
| B284D05300HPS | B285D05300HPS | B286D05300HPS | 5,300 | .2087 | 1,0 | 36 | 6 |
| B284D05400HPS | B285D05400HPS | B286D05400HPS | 5,400 | .2126 | 1,0 | 36 | 6 |
| B284D05410HPS | B285D05410HPS | B286D05410HPS | 5,410 | .2130 | 1,0 | 36 | 6 |
| B284D05500HPS | B285D05500HPS | B286D05500HPS | 5,500 | .2165 | 1,0 | 36 | 6 |
| B284D05558HPS | B285D05558HPS | B286D05558HPS | 5,558 | .2188 | 1,0 | 36 | 6 |
(продолжение)
лучший выбор альтернативный выбор диаметр D1
| минимальный • KN15 | удлиненное • KN15 | Очень удлиненное • KN15 | мм | дюйм | L5 | LS | D |
| B284D05600HPS | B285D05600HPS | B286D05600HPS | 5,600 | .2205 | 1,0 | 36 | 6 |
| B284D05791HPS | B285D05791HPS | B286D05791HPS | 5,791 | .2280 | 1,1 | 36 | 6 |
| B284D05800HPS | – | – 5,800 | .2283 | 1,1 | 36 | 6 | |
| B284D05954HPS | – | – 5,954 | .2344 | 1,1 | 36 | 6 | |
| B284D06000HPS | B285D06000HPS | B286D06000HPS | 6,000 | .2362 | 1,1 | 36 | 6 |
| B284D06200HPS | B285D06200HPS | B286D06200HPS | 6,200 | .2441 | 1,1 | 36 | 8 |
| B284D06300HPS | B285D06300HPS | B286D06300HPS | 6,300 | .2480 | 1,2 | 36 | 8 |
| B284D06350HPS | B285D06350HPS | B286D06350HPS | 6,350 | .2500 | 1,2 | 36 | 8 |
| B284D06400HPS | B285D06400HPS | B286D06400HPS | 6,400 | .2520 | 1,2 | 36 | 8 |
| B284D06500HPS | B285D06500HPS | B286D06500HPS | 6,500 | .2559 | 1,2 | 36 | 8 |
| B284D06528HPS | B285D06528HPS | B286D06528HPS | 6,528 | .2570 | 1,2 | 36 | 8 |
| B284D06600HPS | B285D06600HPS | B286D06600HPS | 6,600 | .2598 | 1,2 | 36 | 8 |
| B284D06630HPS | B285D06630HPS | B286D06630HPS | 6,630 | .2610 | 1,2 | 36 | 8 |
| B284D06700HPS | B285D06700HPS | B286D06700HPS | 6,700 | .2638 | 1,2 | 36 | 8 |
| B284D06746HPS | B285D06746HPS | B286D06746HPS | 6,746 | .2656 | 1,2 | 36 | 8 |
| B284D06800HPS | B285D06800HPS | B286D06800HPS | 6,800 | .2677 | 1,3 | 36 | 8 |
| B284D06900HPS | B285D06900HPS | B286D06900HPS | 6,900 | .2717 | 1,3 | 36 | 8 |
| B284D07000HPS | B285D07000HPS | B286D07000HPS | 7,000 | .2756 | 1,3 | 36 | 8 |
| B284D07145HPS | B285D07145HPS | B286D07145HPS | 7,145 | .2813 | 1,3 | 36 | 8 |
| B284D07300HPS | B285D07300HPS | B286D07300HPS | 7,300 | .2874 | 1,3 | 36 | 8 |
| B284D07400HPS | B285D07400HPS | B286D07400HPS | 7,400 | .2913 | 1,4 | 36 | 8 |
| B284D07500HPS | – | – 7,500 | .2953 | 1,4 | 36 | 8 | |
| B284D07541HPS | B285D07541HPS | B286D07541HPS | 7,541 | .2969 | 1,4 | 36 | 8 |
| B284D07600HPS | B285D07600HPS | B286D07600HPS | 7,600 | .2992 | 1,4 | 36 | 8 |
| B284D07700HPS | B285D07700HPS | B286D07700HPS | 7,700 | .3031 | 1,4 | 36 | 8 |
| – B285D07800HPS | – 7,800 | .3071 | 1,4 | 36 | 8 | ||
| B284D07938HPS | B285D07938HPS | B286D07938HPS | 7,938 | .3125 | 1,5 | 36 | 8 |
| B284D08000HPS | B285D08000HPS | B286D08000HPS | 8,000 | .3150 | 1,5 | 36 | 8 |
| B284D08334HPS | B285D08334HPS | B286D08334HPS | 8,334 | .3281 | 1,5 | 40 | 10 |
| B284D08400HPS | B285D08400HPS | B286D08400HPS | 8,400 | .3307 | 1,6 | 40 | 10 |
| B284D08433HPS | B285D08433HPS | B286D08433HPS | 8,433 | .3320 | 1,6 | 40 | 10 |
| B284D08500HPS | B285D08500HPS | B286D08500HPS | 8,500 | .3346 | 1,6 | 40 | 10 |
| B284D08700HPS | B285D08700HPS | B286D08700HPS | 8,700 | .3425 | 1,6 | 40 | 10 |
| B284D08733HPS | B285D08733HPS | B286D08733HPS | 8,733 | .3438 | 1,6 | 40 | 10 |
| B284D08800HPS | B285D08800HPS | B286D08800HPS | 8,800 | .3465 | 1,6 | 40 | 10 |
| B284D08900HPS | B285D08900HPS | B286D08900HPS | 8,900 | .3504 | 1,6 | 40 | 10 |
| B284D09000HPS | B285D09000HPS | B286D09000HPS | 9,000 | .3543 | 1,7 | 40 | 10 |
| B284D09100HPS | B285D09100HPS | B286D09100HPS | 9,100 | .3583 | 1,7 | 40 | 10 |
| B284D09129HPS | B285D09129HPS | B286D09129HPS | 9,129 | .3594 | 1,7 | 40 | 10 |
| B284D09300HPS | B285D09300HPS | B286D09300HPS | 9,300 | .3661 | 1,7 | 40 | 10 |
| B284D09400HPS | B285D09400HPS | B286D09400HPS | 9,400 | .3701 | 1,7 | 40 | 10 |
| B284D09500HPS | B285D09500HPS | B286D09500HPS | 9,500 | .3740 | 1,8 | 40 | 10 |
| B284D09525HPS | B285D09525HPS | B286D09525HPS | 9,525 | .3750 | 1,8 | 40 | 10 |
| B284D09900HPS | B285D09900HPS | B286D09900HPS | 9,900 | .3898 | 1,8 | 40 | 10 |
| B284D09921HPS | B285D09921HPS | B286D09921HPS | 9,921 | .3906 | 1,8 | 40 | 10 |
| B284D10000HPS | B285D10000HPS | B286D10000HPS | 10,000 | .3937 | 1,8 | 40 | 10 |
| B284D10100HPS | B285D10100HPS | B286D10100HPS | 10,100 | .3976 | 1,9 | 45 | 12 |
| B284D10200HPS | B285D10200HPS | B286D10200HPS | 10,200 | .4016 | 1,9 | 45 | 12 |
| B284D10300HPS | B285D10300HPS | B286D10300HPS | 10,300 | .4055 | 1,9 | 45 | 12 |
| B284D10320HPS | B285D10320HPS | B286D10320HPS | 10,320 | .4063 | 1,9 | 45 | 12 |
| B284D10500HPS | B285D10500HPS | B286D10500HPS | 10,500 | .4134 | 1,9 | 45 | 12 |
| B284D10600HPS | B285D10600HPS | B286D10600HPS | 10,600 | .4173 | 2,0 | 45 | 12 |
