Цветные металлы Цветные металлы
- Перечень обрабатываемых материалов • Цветные металлы • N1

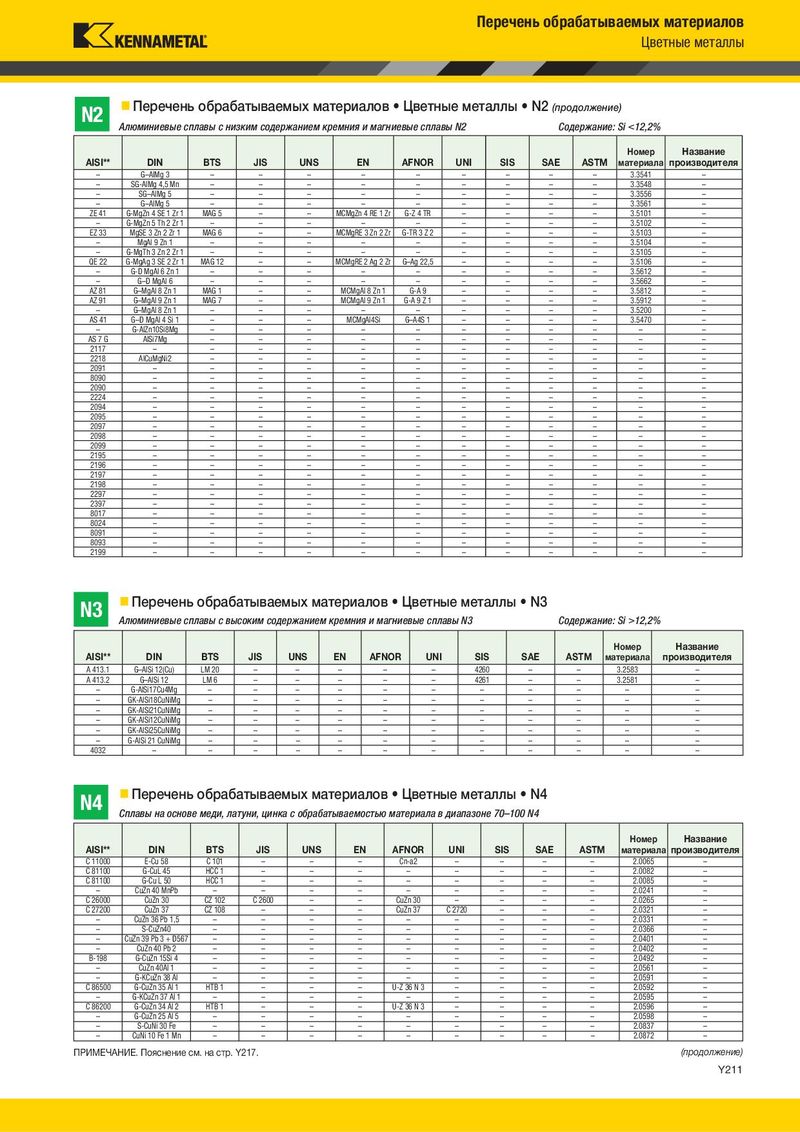

- Перечень обрабатываемых материалов • Цветные металлы • N2 (продолжение)
N1 N2
Деформируемый алюминиевый сплав N1 Алюминиевые сплавы с низким содержанием кремния и магниевые сплавы N2 Содержание: Si <12,2%
Номер Название Номер Название
| AISI** | DIN | BTS | JIS | UNS | EN | AFNOR | | UNI | SIS | SAE | ASTM | материала | производителя |
| 1080 | Al99.8 | – | 1A | – | – | | – | – | – | – | – | 3.0128 | – |
| 1050 | Al99.5 | L 31 | 1B | – | – | A 59050 C | | – | – | – | – | 3.0255 | – |
| – | SG–Al 99,5 | – | – | – | – | | – | – | – | – | – | 3.0259 | – |
| 1070 | Al99.7 | – | – | – | – | | – | 4508 | – | – | – | 3.0275 | – |
| 3103 | AlMn | – | N3 | – | – | | – | – | – | – | – | 3.0515 | – |
| 3003 | AlMnCu | – | – | – | – | | – | – | – | – | – | 3.0517 | – |
| 3005 | AlMn1Mg0.5 | – | – | – | – | | – | – | – | – | – | 3.0525 | – |
| 3004 | AlMn1Mg1 | – | – | – | – | | – | – | – | – | – | 3.0526 | – |
| AISI** | | DIN | BTS | JIS | UNS | | EN | AFNOR | | UNI | SIS | SAE | ASTM | материала | производителя |
| – | | G–AlMg 3 | – | – | – | | – | | – | – | – | – | – | 3.3541 | – |
| – | | SG-AlMg 4,5 Mn | – | – | – | | – | | – | – | – | – | – | 3.3548 | – |
| – | | SG–AlMg 5 | – | – | – | | – | | – | – | – | – | – | 3.3556 | – |
| – | | G–AlMg 5 | – | – | – | | – | | – | – | – | – | – | 3.3561 | – |
| ZE 41 | G-MgZn 4 SE 1 Zr 1 | | MAG 5 | – | – | MCMgZn 4 RE 1 Zr | | | G-Z 4 TR | – | – | – | – | 3.5101 | – |
| – | G-MgZn 5 Th 2 Zr 1 | | – | – | – | | – | | – | – | – | – | – | 3.5102 | – |
| EZ 33 | | MgSE 3 Zn 2 Zr 1 | MAG 6 | – | – | MCMgRE 3 Zn 2 Zr | | G-TR 3 Z 2 | | – | – | – | – | 3.5103 | – |
| – | | MgAl 9 Zn 1 | – | – | – | | – | | – | – | – | – | – | 3.5104 | – |
| Алюминиевые сп | лавы с низ | ким содер | жанием к | ремния и магни | евые сплав | ы N2 | | Сод | ержание: | Si Номер | Название |
| AISI | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | материала | производителя |
| – | G–AlMg 3 | – | – | – | – | – | – | – | – | – | 3.3541 | – |
| – | SG-AlMg 4,5 Mn | – | – | – | – | – | – | – | – | – | 3.3548 | – |
| – | SG–AlMg 5 | – | – | – | – | – | – | – | – | – | 3.3556 | – |
| – | G–AlMg 5 | – | – | – | – | – | – | – | – | – | 3.3561 | – |
| ZE 41 | G-MgZn 4 SE 1 Zr 1 | MAG 5 | – | – | MCMgZn 4 RE 1 Zr | G-Z 4 TR | – | – | – | – | 3.5101 | – |
| – | G-MgZn 5 Th 2 Zr 1 | – | – | – | – | – | – | – | – | – | 3.5102 | – |
| EZ 33 | MgSE 3 Zn 2 Zr 1 | MAG 6 | – | – | MCMgRE 3 Zn 2 Zr | G-TR 3 Z 2 | – | – | – | – | 3.5103 | – |
| – | MgAl 9 Zn 1 | – | – | – | – | – | – | – | – | – | 3.5104 | – |
| – | G-MgTh 3 Zn 2 Zr 1 | – | – | – | – | – | – | – | – | – | 3.5105 | – |
| QE 22 | G-MgAg 3 SE 2 Zr 1 | MAG 12 | – | – | MCMgRE 2 Ag 2 Zr | G–Ag 22,5 | – | – | – | – | 3.5106 | – |
| – | G-D MgAl 6 Zn 1 | – | – | – | – | – | – | – | – | – | 3.5612 | – |
| – | G–D MgAl 6 | – | – | – | – | – | – | – | – | – | 3.5662 | – |
| AZ 81 | G–MgAl 8 Zn 1 | MAG 1 | – | – | MCMgAl 8 Zn 1 | G-A 9 | – | – | – | – | 3.5812 | – |
| AZ 91 | G–MgAl 9 Zn 1 | MAG 7 | – | – | MCMgAl 9 Zn 1 | G-A 9 Z 1 | – | – | – | – | 3.5912 | – |
| – | G–MgAl 8 Zn 1 | – | – | – | – | – | – | – | – | – | 3.5200 | – |
| AS 41 | G–D MgAl 4 Si 1 | – | – | – | MCMgAl4Si | G–A4S 1 | – | – | – | – | 3.5470 | – |
| – | G-AlZn10Si8Mg | – | – | – | – | – | – | – | – | – | – | – |
| AS 7 G | AlSi7Mg | – | – | – | – | – | – | – | – | – | – | – |
| 2117 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2218 | AlCuMgNi2 | – | – | – | – | – | – | – | – | – | – | – |
| 2091 | – | – | – | – | – | – | – | – | – | – | – | – |
| 8090 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2090 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2224 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2094 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2095 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2097 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2098 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2099 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2195 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2196 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2197 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2198 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2297 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2397 | – | – | – | – | – | – | – | – | – | – | – | – |
| 8017 | – | – | – | – | – | – | – | – | – | – | – | – |
| 8024 | – | – | – | – | – | – | – | – | – | – | – | – |
| 8091 | – | – | – | – | – | – | – | – | – | – | – | – |
| 8093 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2199 | – | – | – | – | – | – | – | – | – | – | – | – |
| N3 | �Перечень Алюминиевые с | обраб плавы с в | атыва ысоким со | емых м держание | атери м кремн | алов • Ц ия и магниев | ветные ые сплавы | металл N3 | ы • N3 | Содержа | ние: Si >12,2 | % |
| AISI | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | Номер материала | Название производителя |
| A 413.1 | G–AlSi 12(Cu) | LM 20 | – | – | – | – | – | 4260 | – | – | 3.2583 | – |
| A 413.2 | G–AlSi 12 | LM 6 | – | – | – | – | – | 4261 | – | – | 3.2581 | – |
| – | G-AlSi17Cu4Mg | – | – | – | – | – | – | – | – | – | – | – |
| – | GK-AlSi18CuNiMg | – | – | – | – | – | – | – | – | – | – | – |
| – | GK-AlSi21CuNiMg | – | – | – | – | – | – | – | – | – | – | – |
| – | GK-AlSi12CuNiMg | – | – | – | – | – | – | – | – | – | – | – |
| – | GK-AlSi25CuNiMg | – | – | – | – | – | – | – | – | – | – | – |
| – | G-AlSi 21 CuNiMg | – | – | – | – | – | – | – | – | – | – | – |
| 4032 | – | – | – | – | – | – | – | – | – | – | – | – |
| AISI | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | Номер материала | Название производителя |
| C 11000 | E-Cu 58 | C 101 | – | – | – | Cn-a2 | – | – | – | – | 2.0065 | – |
| C 81100 | G-CuL 45 | HCC 1 | – | – | – | – | – | – | – | – | 2.0082 | – |
| C 81100 | G-Cu L 50 | HCC 1 | – | – | – | – | – | – | – | – | 2.0085 | – |
| – | CuZn 40 MnPb | – | – | – | – | – | – | – | – | – | 2.0241 | – |
| C 26000 | CuZn 30 | CZ 102 | C 2600 | – | – | CuZn 30 | – | – | – | – | 2.0265 | – |
| C 27200 | CuZn 37 | CZ 108 | – | – | – | CuZn 37 | C 2720 | – | – | – | 2.0321 | – |
| – | CuZn 36 Pb 1,5 | – | – | – | – | – | – | – | – | – | 2.0331 | – |
| – | S-CuZn40 | – | – | – | – | – | – | – | – | – | 2.0366 | – |
| – | CuZn 39 Pb 3 + D567 | – | – | – | – | – | – | – | – | – | 2.0401 | – |
| – | CuZn 40 Pb 2 | – | – | – | – | – | – | – | – | – | 2.0402 | – |
| B-198 | G-CuZn 15Si 4 | – | – | – | – | – | – | – | – | – | 2.0492 | – |
| – | CuZn 40Al 1 | – | – | – | – | – | – | – | – | – | 2.0561 | – |
| – | G-KCuZn 38 Al | – | – | – | – | – | – | – | – | – | 2.0591 | – |
| C 86500 | G-CuZn 35 Al 1 | HTB 1 | – | – | – | U-Z 36 N 3 | – | – | – | – | 2.0592 | – |
| – | G-KCuZn 37 Al 1 | – | – | – | – | – | – | – | – | – | 2.0595 | – |
| C 86200 | G-CuZn 34 Al 2 | HTB 1 | – | – | – | U-Z 36 N 3 | – | – | – | – | 2.0596 | – |
| – | G-CuZn 25 Al 5 | – | – | – | – | – | – | – | – | – | 2.0598 | – |
| – | S-CuNi 30 Fe | – | – | – | – | – | – | – | – | – | 2.0837 | – |
| – | CuNi 10 Fe 1 Mn | – | – | – | – | – | – | – | – | – | 2.0872 | – |
