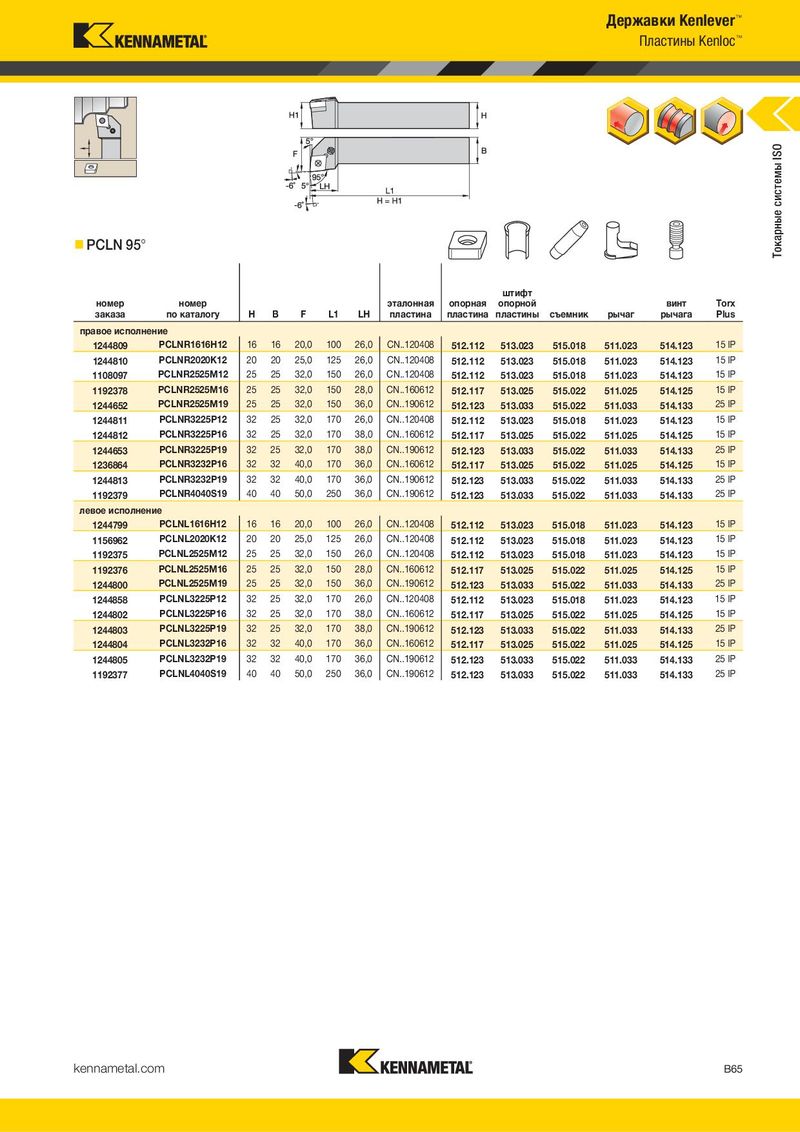

- PCBN 75°
PCLN 95°
штифт
номер номер эталонная опорная опорной винт Torx
| заказа | по каталогу | H | B | F | L1 | LH | FA | пластина | пластина пластины съемник | рычаг | рычага | Plus | ||
| правое исполнение | ||||||||||||||
| 1244779 | PCBNR2525M12 | 25 | 25 | 22,0 | 150 | 26,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244635 | PCBNR2525M16 | 25 | 25 | 22,0 | 150 | 28,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244636 | PCBNR3225P12 | 32 | 25 | 22,0 | 170 | 28,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244637 | PCBNR3225P16 | 32 | 25 | 22,0 | 170 | 28,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244638 | PCBNR3232P16 | 32 | 32 | 27,0 | 170 | 38,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244795 | PCBNR3232P19 | 32 | 32 | 27,0 | 170 | 38,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1192373 | PCBNR4040S19 | 40 | 40 | 35,0 | 250 | 38,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| левое исполнение | ||||||||||||||
| 1244630 | PCBNL2020K12 | 20 | 20 | 17,0 | 125 | 26,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244859 | PCBNL2525M12 | 25 | 25 | 22,0 | 150 | 26,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244631 | PCBNL2525M16 | 25 | 25 | 22,0 | 150 | 28,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244794 | PCBNL3232P16 | 32 | 32 | 27,0 | 170 | 38,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244633 | PCBNL3232P19 | 32 | 32 | 27,0 | 170 | 38,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1192372 | PCBNL4040S19 | 40 | 40 | 35,0 | 250 | 38,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
штифт
| номер | номер | эталонная | опорная | опорной | винт | Torx | |||||||
| заказа | по каталогу | H | B | F | L1 | LH | пластина | пластина | пластины | съемник | рычаг | рычага | Plus |
| правое исполнение | |||||||||||||
| 1244809 | PCLNR1616H12 | 16 | 16 | 20,0 | 100 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244810 | PCLNR2020K12 | 20 | 20 | 25,0 | 125 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1108097 | PCLNR2525M12 | 25 | 25 | 32,0 | 150 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1192378 | PCLNR2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244652 | PCLNR2525M19 | 25 | 25 | 32,0 | 150 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1244811 | PCLNR3225P12 | 32 | 25 | 32,0 | 170 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244812 | PCLNR3225P16 | 32 | 25 | 32,0 | 170 | 38,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244653 | PCLNR3225P19 | 32 | 25 | 32,0 | 170 | 38,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1236864 | PCLNR3232P16 | 32 | 32 | 40,0 | 170 | 36,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244813 | PCLNR3232P19 | 32 | 32 | 40,0 | 170 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1192379 | PCLNR4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| левое исполнение | |||||||||||||
| 1244799 | PCLNL1616H12 | 16 | 16 | 20,0 | 100 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1156962 | PCLNL2020K12 | 20 | 20 | 25,0 | 125 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1192375 | PCLNL2525M12 | 25 | 25 | 32,0 | 150 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1192376 | PCLNL2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| номер заказа | номер по каталогу | H | B | F | L1 | LH | эталонная пластина | опорная пластина | штифт опорной пластины | съемник | рычаг | винт рычага | Torx Plus |
| правое испол | нение | ||||||||||||
| 1244809 | PCLNR1616H12 | 16 | 16 | 20,0 | 100 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244810 | PCLNR2020K12 | 20 | 20 | 25,0 | 125 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1108097 | PCLNR2525M12 | 25 | 25 | 32,0 | 150 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1192378 | PCLNR2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244652 | PCLNR2525M19 | 25 | 25 | 32,0 | 150 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1244811 | PCLNR3225P12 | 32 | 25 | 32,0 | 170 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244812 | PCLNR3225P16 | 32 | 25 | 32,0 | 170 | 38,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244653 | PCLNR3225P19 | 32 | 25 | 32,0 | 170 | 38,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1236864 | PCLNR3232P16 | 32 | 32 | 40,0 | 170 | 36,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244813 | PCLNR3232P19 | 32 | 32 | 40,0 | 170 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1192379 | PCLNR4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| левое исполн | ение | ||||||||||||
| 1244799 | PCLNL1616H12 | 16 | 16 | 20,0 | 100 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1156962 | PCLNL2020K12 | 20 | 20 | 25,0 | 125 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1192375 | PCLNL2525M12 | 25 | 25 | 32,0 | 150 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1192376 | PCLNL2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244800 | PCLNL2525M19 | 25 | 25 | 32,0 | 150 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1244858 | PCLNL3225P12 | 32 | 25 | 32,0 | 170 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 1244802 | PCLNL3225P16 | 32 | 25 | 32,0 | 170 | 38,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244803 | PCLNL3225P19 | 32 | 25 | 32,0 | 170 | 38,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1244804 | PCLNL3232P16 | 32 | 32 | 40,0 | 170 | 36,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 1244805 | PCLNL3232P19 | 32 | 32 | 40,0 | 170 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 1192377 | PCLNL4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
- PCKN 75°
правое исполнение
левое исполнение
