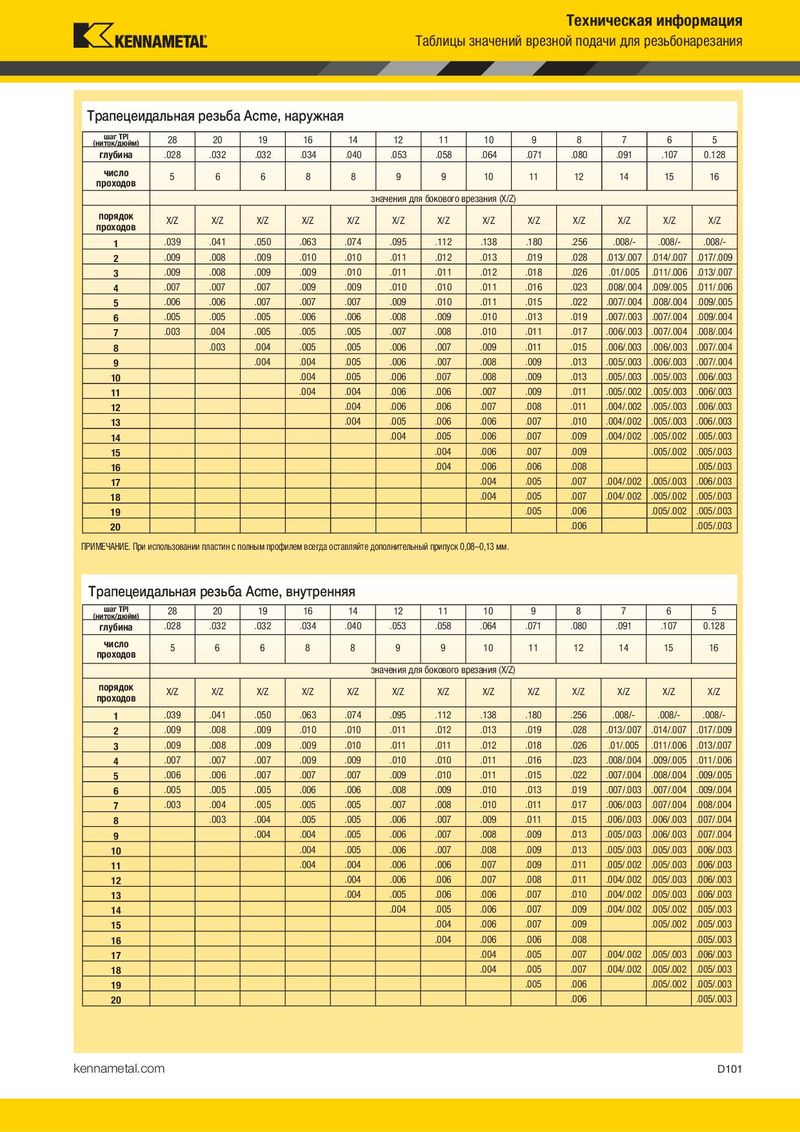

Резьба Whitworth, наружная и внутренняя Трапецеидальная резьба Acme, наружная
шаг TPI 28 20 19 16 14 12 11 10 9 8 7 6 5
TPI (ниток на дюйм) 28 20 19 16 14 12 11 10 9 8 7 6 5 (ниток/дюйм)
глубина .028 .032 .032 .034 .040 .053 .058 .064 .071 .080 .091 .107 0.128
| T Ap (мм) | 0,584 | 0,813 | 0,813 | 0,864 | 1,016 | 1,346 | 1,473 | 1,626 | 1,803 | 2,032 | 2,311 | 2,718 | 3,251 | ||||||||||||||
| число | |||||||||||||||||||||||||||
| 5 | 6 | 6 | 8 | 8 | 9 | 9 | 10 | 11 | 12 | 14 | 15 | 16 | 5 | 6 | 6 | 8 | 8 | 9 | 9 | 10 | 11 | 12 | 14 | 15 | 16 |
N Ap проходов значения для бокового врезания (X/Z) значения для бокового врезания (X/Z) порядок
| Трапецеид | альная | резьба | Acme, | наружн | ая | ||||||||
| шаг TPI (ниток/дюйм) | 28 | 20 | 19 | 16 | 14 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 |
| глубина | .028 | .032 | .032 | .034 | .040 | .053 | .058 | .064 | .071 | .080 | .091 | .107 | 0.128 |
| число | 5 | 6 | 6 | 8 | 8 | 9 | 9 | 10 | 11 | 12 | 14 | 15 | 16 |
| проходов | з | начениядля | бокового в | резания(X/Z | ) | ||||||||
| порядок проходов | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z |
| 1 | .039 | .041 | .050 | .063 | .074 | .095 | .112 | .138 | .180 | .256 | .008/- | .008/- | .008/- |
| 2 | .009 | .008 | .009 | .010 | .010 | .011 | .012 | .013 | .019 | .028 | .013/.007 | .014/.007 | .017/.009 |
| 3 | .009 | .008 | .009 | .009 | .010 | .011 | .011 | .012 | .018 | .026 | .01/.005 | .011/.006 | .013/.007 |
| 4 | .007 | .007 | .007 | .009 | .009 | .010 | .010 | .011 | .016 | .023 | .008/.004 | .009/.005 | .011/.006 |
| 5 | .006 | .006 | .007 | .007 | .007 | .009 | .010 | .011 | .015 | .022 | .007/.004 | .008/.004 | .009/.005 |
| 6 | .005 | .005 | .005 | .006 | .006 | .008 | .009 | .010 | .013 | .019 | .007/.003 | .007/.004 | .009/.004 |
| 7 | .003 | .004 | .005 | .005 | .005 | .007 | .008 | .010 | .011 | .017 | .006/.003 | .007/.004 | .008/.004 |
| 8 | .003 | .004 | .005 | .005 | .006 | .007 | .009 | .011 | .015 | .006/.003 | .006/.003 | .007/.004 | |
| 9 | .004 | .004 | .005 | .006 | .007 | .008 | .009 | .013 | .005/.003 | .006/.003 | .007/.004 | ||
| 10 | .004 | .005 | .006 | .007 | .008 | .009 | .013 | .005/.003 | .005/.003 | .006/.003 | |||
| 11 | .004 | .004 | .006 | .006 | .007 | .009 | .011 | .005/.002 | .005/.003 | .006/.003 | |||
| 12 | .004 | .006 | .006 | .007 | .008 | .011 | .004/.002 | .005/.003 | .006/.003 | ||||
| 13 | .004 | .005 | .006 | .006 | .007 | .010 | .004/.002 | .005/.003 | .006/.003 | ||||
| 14 | .004 | .005 | .006 | .007 | .009 | .004/.002 | .005/.002 | .005/.003 | |||||
| 15 | .004 | .006 | .007 | .009 | .005/.002 | .005/.003 | |||||||
| 16 | .004 | .006 | .006 | .008 | .005/.003 | ||||||||
| 17 | .004 | .005 | .007 | .004/.002 | .005/.003 | .006/.003 | |||||||
| 18 | .004 | .005 | .007 | .004/.002 | .005/.002 | .005/.003 | |||||||
| 19 | .005 | .006 | .005/.002 | .005/.003 | |||||||||
| 20 | .006 | .005/.003 |
проходов
16
2
| Трапецеид | альная | резьба | Acme, | внутрен | няя | ||||||||
| шаг TPI (ниток/дюйм) | 28 | 20 | 19 | 16 | 14 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 |
| глубина | .028 | .032 | .032 | .034 | .040 | .053 | .058 | .064 | .071 | .080 | .091 | .107 | 0.128 |
| число | 5 | 6 | 6 | 8 | 8 | 9 | 9 | 10 | 11 | 12 | 14 | 15 | 16 |
| проходов | зн | ачения для | бокового в | резания (X/Z | ) | ||||||||
| порядок проходов | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z | X/Z |
| 1 | .039 | .041 | .050 | .063 | .074 | .095 | .112 | .138 | .180 | .256 | .008/- | .008/- | .008/- |
| 2 | .009 | .008 | .009 | .010 | .010 | .011 | .012 | .013 | .019 | .028 | .013/.007 | .014/.007 | .017/.009 |
| 3 | .009 | .008 | .009 | .009 | .010 | .011 | .011 | .012 | .018 | .026 | .01/.005 | .011/.006 | .013/.007 |
| 4 | .007 | .007 | .007 | .009 | .009 | .010 | .010 | .011 | .016 | .023 | .008/.004 | .009/.005 | .011/.006 |
| 5 | .006 | .006 | .007 | .007 | .007 | .009 | .010 | .011 | .015 | .022 | .007/.004 | .008/.004 | .009/.005 |
| 6 | .005 | .005 | .005 | .006 | .006 | .008 | .009 | .010 | .013 | .019 | .007/.003 | .007/.004 | .009/.004 |
| 7 | .003 | .004 | .005 | .005 | .005 | .007 | .008 | .010 | .011 | .017 | .006/.003 | .007/.004 | .008/.004 |
| 8 | .003 | .004 | .005 | .005 | .006 | .007 | .009 | .011 | .015 | .006/.003 | .006/.003 | .007/.004 | |
| 9 | .004 | .004 | .005 | .006 | .007 | .008 | .009 | .013 | .005/.003 | .006/.003 | .007/.004 | ||
| 10 | .004 | .005 | .006 | .007 | .008 | .009 | .013 | .005/.003 | .005/.003 | .006/.003 | |||
| 11 | .004 | .004 | .006 | .006 | .007 | .009 | .011 | .005/.002 | .005/.003 | .006/.003 | |||
| 12 | .004 | .006 | .006 | .007 | .008 | .011 | .004/.002 | .005/.003 | .006/.003 | ||||
| 13 | .004 | .005 | .006 | .006 | .007 | .010 | .004/.002 | .005/.003 | .006/.003 | ||||
| 14 | .004 | .005 | .006 | .007 | .009 | .004/.002 | .005/.002 | .005/.003 | |||||
| 15 | .004 | .006 | .007 | .009 | .005/.002 | .005/.003 | |||||||
| 16 | .004 | .006 | .006 | .008 | .005/.003 | ||||||||
| 17 | .004 | .005 | .007 | .004/.002 | .005/.003 | .006/.003 | |||||||
| 18 | .004 | .005 | .007 | .004/.002 | .005/.002 | .005/.003 | |||||||
| 19 | .005 | .006 | .005/.002 | .005/.003 | |||||||||
| 20 | .006 | .005/.003 |
