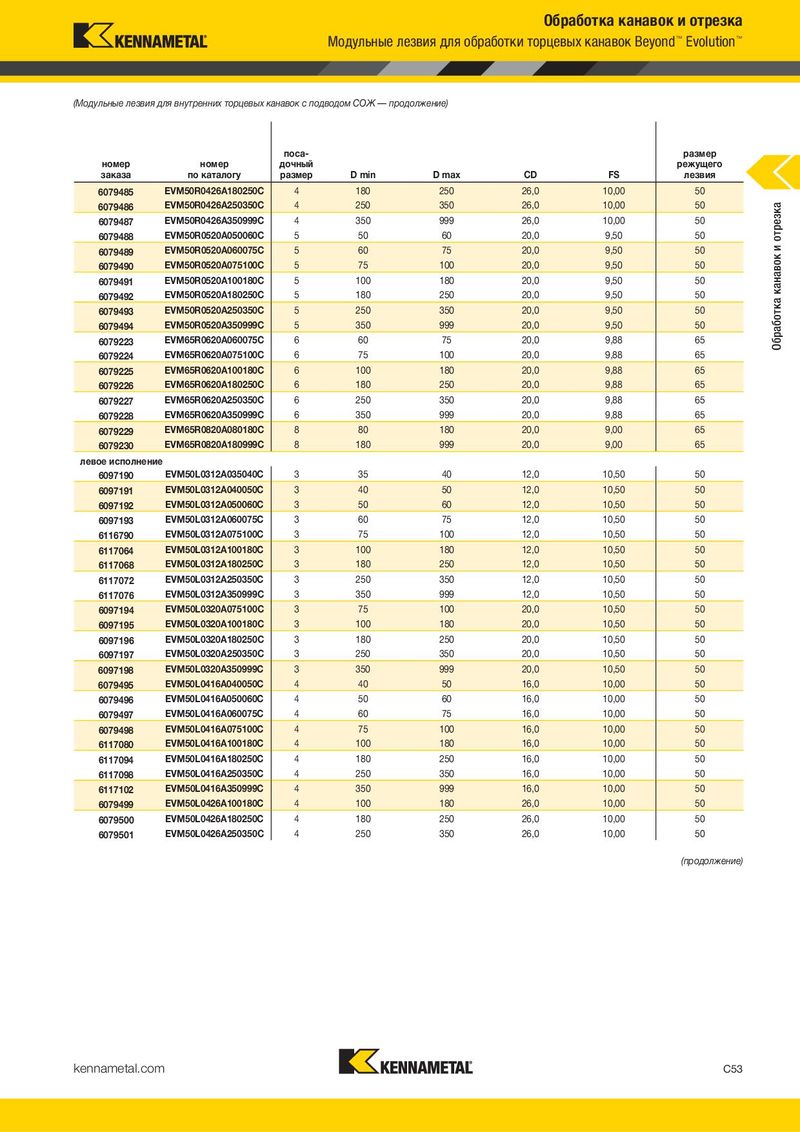

Основной каталог Kennametal невращающиеся инструменты - страница 463
Навигация
Цанги ER с внутренним охлаждением Kennametal 2024
Каталог Kennametal инновации 2019.1
Новинки Kennametal - весна 2026
Каталог Kennametal инновации 2020.2
Модульные инструментальные системы линейки KM4X Kennametal 2017
Сверла со сменными пластинами линейки Drill Fix PRO Kennametal 2024
(Модульные лезвия для внутренних торцевых канавок с подводом СОЖ — продолжение)
поса- размер
номер номер дочный режущего
| заказа | размер по каталогу | D min | D max | CD | FS | лезвия | |
| 6079485 | EVM50R0426A180250C | 4 | 180 | 250 | 26,0 | 10,00 | 50 |
| 6079486 | EVM50R0426A250350C | 4 | 250 | 350 | 26,0 | 10,00 | 50 |
| 6079487 | EVM50R0426A350999C | 4 | 350 | 999 | 26,0 | 10,00 | 50 |
| 6079488 | EVM50R0520A050060C | 5 | 50 | 60 | 20,0 | 9,50 | 50 |
| 6079489 | EVM50R0520A060075C | 5 | 60 | 75 | 20,0 | 9,50 | 50 |
| 6079490 | EVM50R0520A075100C | 5 | 75 | 100 | 20,0 | 9,50 | 50 |
| 6079491 | EVM50R0520A100180C | 5 | 100 | 180 | 20,0 | 9,50 | 50 |
| 6079492 | EVM50R0520A180250C | 5 | 180 | 250 | 20,0 | 9,50 | 50 |
Левое Правое
| номер | номер | поса- дочный | размер режущего | ||||
| заказа | по каталогу | размер | D min | D max | CD | FS | лезвия |
| 6079485 | EVM50R0426A180250C | 4 | 180 | 250 | 26,0 | 10,00 | 50 |
| 6079486 | EVM50R0426A250350C | 4 | 250 | 350 | 26,0 | 10,00 | 50 |
| 6079487 | EVM50R0426A350999C | 4 | 350 | 999 | 26,0 | 10,00 | 50 |
| 6079488 | EVM50R0520A050060C | 5 | 50 | 60 | 20,0 | 9,50 | 50 |
| 6079489 | EVM50R0520A060075C | 5 | 60 | 75 | 20,0 | 9,50 | 50 |
| 6079490 | EVM50R0520A075100C | 5 | 75 | 100 | 20,0 | 9,50 | 50 |
| 6079491 | EVM50R0520A100180C | 5 | 100 | 180 | 20,0 | 9,50 | 50 |
| 6079492 | EVM50R0520A180250C | 5 | 180 | 250 | 20,0 | 9,50 | 50 |
| 6079493 | EVM50R0520A250350C | 5 | 250 | 350 | 20,0 | 9,50 | 50 |
| 6079494 | EVM50R0520A350999C | 5 | 350 | 999 | 20,0 | 9,50 | 50 |
| 6079223 | EVM65R0620A060075C | 6 | 60 | 75 | 20,0 | 9,88 | 65 |
| 6079224 | EVM65R0620A075100C | 6 | 75 | 100 | 20,0 | 9,88 | 65 |
| 6079225 | EVM65R0620A100180C | 6 | 100 | 180 | 20,0 | 9,88 | 65 |
| 6079226 | EVM65R0620A180250C | 6 | 180 | 250 | 20,0 | 9,88 | 65 |
| 6079227 | EVM65R0620A250350C | 6 | 250 | 350 | 20,0 | 9,88 | 65 |
| 6079228 | EVM65R0620A350999C | 6 | 350 | 999 | 20,0 | 9,88 | 65 |
| 6079229 | EVM65R0820A080180C | 8 | 80 | 180 | 20,0 | 9,00 | 65 |
| 6079230 | EVM65R0820A180999C | 8 | 180 | 999 | 20,0 | 9,00 | 65 |
| левое исполнен | ие | ||||||
| 6097190 | EVM50L0312A035040C | 3 | 35 | 40 | 12,0 | 10,50 | 50 |
| 6097191 | EVM50L0312A040050C | 3 | 40 | 50 | 12,0 | 10,50 | 50 |
| 6097192 | EVM50L0312A050060C | 3 | 50 | 60 | 12,0 | 10,50 | 50 |
| 6097193 | EVM50L0312A060075C | 3 | 60 | 75 | 12,0 | 10,50 | 50 |
| 6116790 | EVM50L0312A075100C | 3 | 75 | 100 | 12,0 | 10,50 | 50 |
| 6117064 | EVM50L0312A100180C | 3 | 100 | 180 | 12,0 | 10,50 | 50 |
| 6117068 | EVM50L0312A180250C | 3 | 180 | 250 | 12,0 | 10,50 | 50 |
| 6117072 | EVM50L0312A250350C | 3 | 250 | 350 | 12,0 | 10,50 | 50 |
| 6117076 | EVM50L0312A350999C | 3 | 350 | 999 | 12,0 | 10,50 | 50 |
| 6097194 | EVM50L0320A075100C | 3 | 75 | 100 | 20,0 | 10,50 | 50 |
| 6097195 | EVM50L0320A100180C | 3 | 100 | 180 | 20,0 | 10,50 | 50 |
| 6097196 | EVM50L0320A180250C | 3 | 180 | 250 | 20,0 | 10,50 | 50 |
| 6097197 | EVM50L0320A250350C | 3 | 250 | 350 | 20,0 | 10,50 | 50 |
| 6097198 | EVM50L0320A350999C | 3 | 350 | 999 | 20,0 | 10,50 | 50 |
| 6079495 | EVM50L0416A040050C | 4 | 40 | 50 | 16,0 | 10,00 | 50 |
| 6079496 | EVM50L0416A050060C | 4 | 50 | 60 | 16,0 | 10,00 | 50 |
| 6079497 | EVM50L0416A060075C | 4 | 60 | 75 | 16,0 | 10,00 | 50 |
| 6079498 | EVM50L0416A075100C | 4 | 75 | 100 | 16,0 | 10,00 | 50 |
| 6117080 | EVM50L0416A100180C | 4 | 100 | 180 | 16,0 | 10,00 | 50 |
| 6117094 | EVM50L0416A180250C | 4 | 180 | 250 | 16,0 | 10,00 | 50 |
| 6117098 | EVM50L0416A250350C | 4 | 250 | 350 | 16,0 | 10,00 | 50 |
| 6117102 | EVM50L0416A350999C | 4 | 350 | 999 | 16,0 | 10,00 | 50 |
| 6079499 | EVM50L0426A100180C | 4 | 100 | 180 | 26,0 | 10,00 | 50 |
| 6079500 | EVM50L0426A180250C | 4 | 180 | 250 | 26,0 | 10,00 | 50 |
| 6079501 | EVM50L0426A250350C | 4 | 250 | 350 | 26,0 | 10,00 | 50 |
исполнение
правое исполнение
(продолжение)
