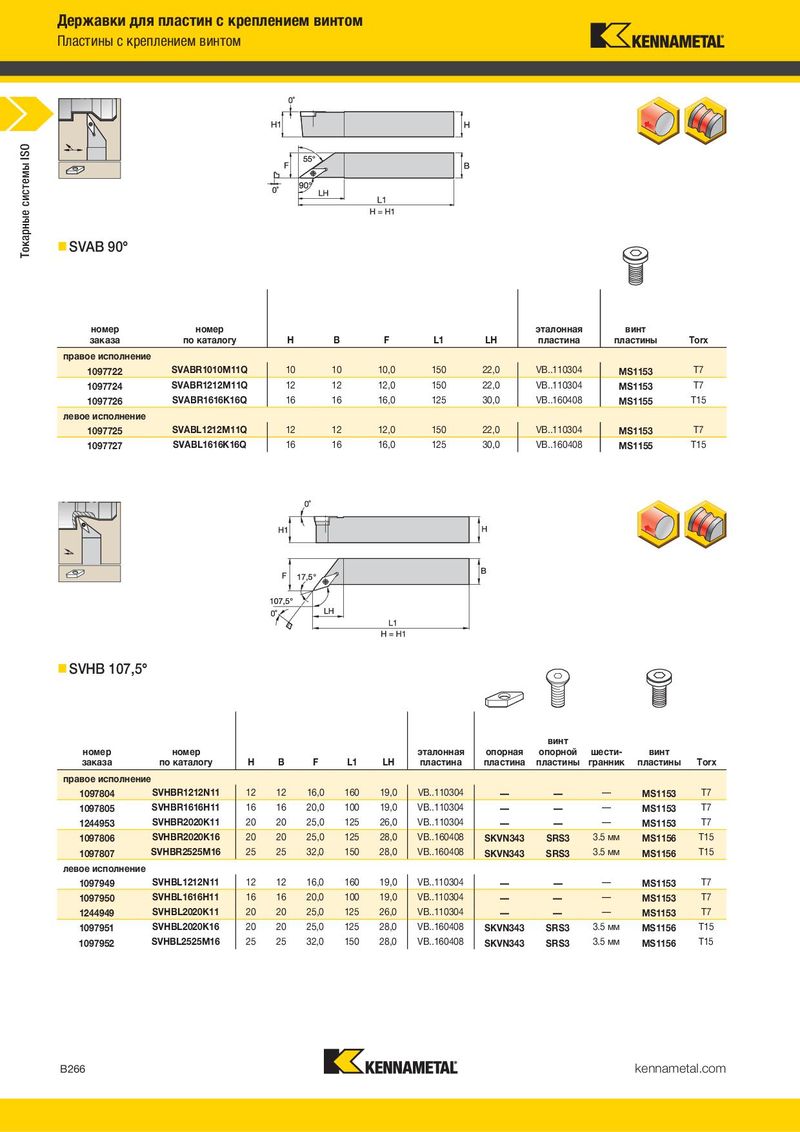

- SVAB 90°
- SVJB 93°
винт
номер номер эталонная винт номер номер эталонная опорная опорной шести- винт
| заказа | по каталогу | H | B | F | L1 | LH | пластина | пластины | Torx | заказа | по каталогу | H | B | F | L1 | LH | пластина | пластина | пластины | гранник | пластины | Torx | |
| правое исполнение | правое исполнение | ||||||||||||||||||||||
| 1097722 | SVABR1010M11Q | 10 | 10 | 10,0 | 150 | 22,0 | VB..110304 | MS1153 | T7 | 1097800 | SVJBR1212N11 | 12 | 12 | 16,0 | 160 | 22,0 | VB..110304 | — | — | — | MS1153 | T7 | |
| 1097724 | SVABR1212M11Q | 12 | 12 | 12,0 | 150 | 22,0 | VB..110304 | MS1153 | T7 | 1097801 | SVJBR1616H11 | 16 | 16 | 20,0 | 100 | 22,0 | VB..110304 | — | — | — | MS1153 | T7 | |
| 1097726 | SVABR1616K16Q | 16 | 16 | 16,0 | 125 | 30,0 | VB..160408 | MS1155 | T15 | 1244959 | SVJBR1616H16 | 16 | 16 | 20,0 | 100 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| левое исполнение | 1252235 | SVJBR2020K11 | 20 | 20 | 25,0 | 125 | 26,0 | VB..110304 | — | — | — | MS1153 | T7 | ||||||||||
| 1097725 | SVABL1212M11Q | 12 | 12 | 12,0 | 150 | 22,0 | VB..110304 | MS1153 | T7 | 1097802 | SVJBR2020K16 | 20 | 20 | 25,0 | 125 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| 1097727 | SVABL1616K16Q | 16 | 16 | 16,0 | 125 | 30,0 | VB..160408 | MS1155 | T15 | 1097803 | SVJBR2525M16 | 25 | 25 | 32,0 | 150 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| 1244992 | SVJBR3225P16 | 32 | 25 | 32,0 | 170 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |||||||||||
| левое исполнение | |||||||||||||||||||||||
| 1097945 | SVJBL1212N11 | 12 | 12 | 16,0 | 160 | 22,0 | VB..110304 | — | — | — | MS1153 | T7 | |||||||||||
| 1097946 | SVJBL1616H11 | 16 | 16 | 20,0 | 100 | 22,0 | VB..110304 | — | — | — | MS1153 | T7 | |||||||||||
| 1244957 | SVJBL1616H16 | 16 | 16 | 20,0 | 100 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |||||||||||
| 1252234 | SVJBL2020K11 | 20 | 20 | 25,0 | 125 | 26,0 | VB..110304 | — | — | — | MS1153 | T7 | |||||||||||
| 1097947 | SVJBL2020K16 | 20 | 20 | 25,0 | 125 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |||||||||||
| 1097948 | SVJBL2525M16 | 25 | 25 | 32,0 | 150 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |||||||||||
| 1192560 | SVJBL3225P16 | 32 | 25 | 32,0 | 170 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 |
- SVHB 107,5°
винт
| номер | номер | эталонная | опорная | опорной | шести- | винт | |||||||
| заказа | по каталогу | H | B | F | L1 | LH | пластина | пластина | пластины | гранник | пластины | Torx | |
| правое исполнение | |||||||||||||
| 1097804 | SVHBR1212N11 | 12 | 12 | 16,0 | 160 | 19,0 | VB..110304 | — | — | — | MS1153 | T7 | |
| 1097805 | SVHBR1616H11 | 16 | 16 | 20,0 | 100 | 19,0 | VB..110304 | — | — | — | MS1153 | T7 | |
| 1244953 | SVHBR2020K11 | 20 | 20 | 25,0 | 125 | 26,0 | VB..110304 | — | — | — | MS1153 | T7 | |
| 1097806 | SVHBR2020K16 | 20 | 20 | 25,0 | 125 | 28,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| 1097807 | SVHBR2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| левое исполнение | |||||||||||||
| 1097949 | SVHBL1212N11 | 12 | 12 | 16,0 | 160 | 19,0 | VB..110304 | — | — | — | MS1153 | T7 | |
| SVHBL1616H11 | 16 | 16 | 20,0 | 100 | 19,0 | VB..110304 | — | T7 | |||||
| 1097950 | — | — | MS1153 | ||||||||||
| 1244949 | SVHBL2020K11 | 20 | 20 | 25,0 | 125 | 26,0 | VB..110304 | — | — | — | MS1153 | T7 | |
| 1097951 | SVHBL2020K16 | 20 | 20 | 25,0 | 125 | 28,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| 1097952 | SVHBL2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | VB..160408 | SKVN343 | SRS3 | 3.5 мм | MS1156 | T15 |
- SVJB-F 93°
номер номер эталонная винт
| заказа | по каталогу H | B | F | L1 | LH | пластина | пластины | Torx | ||
| правое исполнение | ||||||||||
| 1097797 | SVJBRF1010M11Q | 10 | 10 | 10,0 | 150 | 23,0 | VB..110304 | MS1153 | T7 | |
| 1097798 | SVJBRF1212M11Q | 12 | 12 | 12,0 | 150 | 23,0 | VB..110304 | MS1153 | T7 | |
| 1097799 | SVJBRF1616K16Q | 16 | 16 | 16,0 | 125 | 31,0 | VB..160408 | MS1155 | T15 | |
| левое исполнение | ||||||||||
| 1097942 | SVJBLF1010M11Q | 10 | 10 | 10,0 | 150 | 23,0 | VB..110304 | MS1153 | T7 | |
| 1097943 | SVJBLF1212M11Q | 12 | 12 | 12,0 | 150 | 23,0 | VB..110304 | MS1153 | T7 | |
| 1097944 | SVJBLF1616K16Q | 16 | 16 | 16,0 | 125 | 31,0 | VB..160408 | MS1155 | T15 |
