SDJC-F 93°

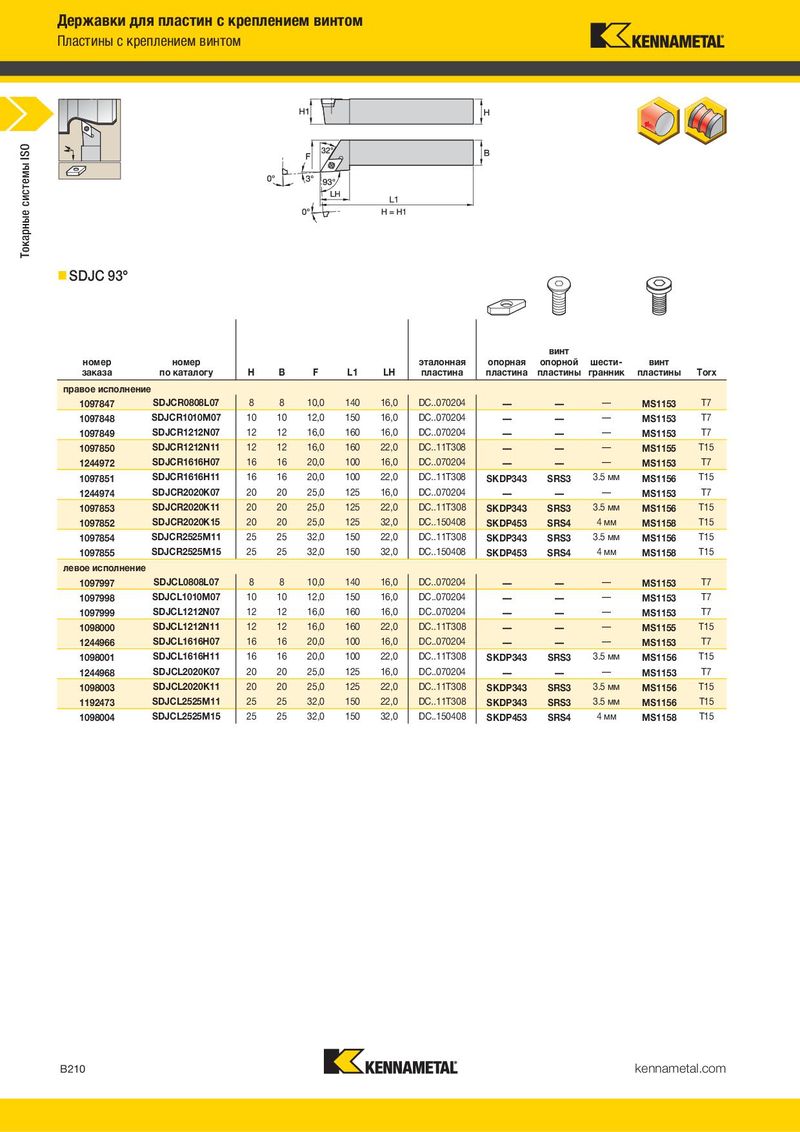

SDJC 93°
винт
номер номер эталонная опорная опорной шести- винт винт
заказа по каталогу H B F L1 LH пластина пластина пластины гранник пластины Torx номер номер эталонная опорная опорной шести- винт
правое исполнение заказа по каталогу H B F L1 LH B3 пластина пластина пластины гранник пластины Torx
| 1097847 | SDJCR0808L07 | 8 | 8 | 10,0 | 140 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1097848 | SDJCR1010M07 | 10 | 10 | 12,0 | 150 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1097849 | SDJCR1212N07 | 12 | 12 | 16,0 | 160 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1097850 | SDJCR1212N11 | 12 | 12 | 16,0 | 160 | 22,0 | DC..11T308 | — | — | — | MS1155 | T15 | |
| 1244972 | SDJCR1616H07 | 16 | 16 | 20,0 | 100 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1097851 | SDJCR1616H11 | 16 | 16 | 20,0 | 100 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| 1244974 | SDJCR2020K07 | 20 | 20 | 25,0 | 125 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1097853 | SDJCR2020K11 | 20 | 20 | 25,0 | 125 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| 1097852 | SDJCR2020K15 | 20 | 20 | 25,0 | 125 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 мм | MS1158 | T15 | |
| 1097854 | SDJCR2525M11 | 25 | 25 | 32,0 | 150 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| 1097855 | SDJCR2525M15 | 25 | 25 | 32,0 | 150 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 мм | MS1158 | T15 | |
| левое исполнение | |||||||||||||
| 1097997 | SDJCL0808L07 | 8 | 8 | 10,0 | 140 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1097998 | SDJCL1010M07 | 10 | 10 | 12,0 | 150 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1097999 | SDJCL1212N07 | 12 | 12 | 16,0 | 160 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1098000 | SDJCL1212N11 | 12 | 12 | 16,0 | 160 | 22,0 | DC..11T308 | — | — | — | MS1155 | T15 | |
| 1244966 | SDJCL1616H07 | 16 | 16 | 20,0 | 100 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1098001 | SDJCL1616H11 | 16 | 16 | 20,0 | 100 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 | |
| 1244968 | SDJCL2020K07 | 20 | 20 | 25,0 | 125 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 | |
| 1098003 | SDJCL2020K11 | 20 | 20 | 25,0 | 125 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 |
| правое исполнение | |||||||||||||||
| 1772157 | SDJCRF0808M07Q | 8 | 8 | 8,0 | 150 | 16,0 | 1,5 | DC..070204 | — | — | — | MS1153 | T7 | ||
| 1097844 | SDJCRF1010M07Q | 10 | 10 | 10,0 | 150 | 16,0 | — | DC..070204 | — | — | — | MS1153 | T7 | ||
| 1097845 | SDJCRF1212M07Q | 12 | 12 | 12,0 | 150 | 16,0 | — | DC..070204 | — | — | — | MS1153 | T7 | ||
| 1097846 | SDJCRF1616K11Q | 16 | 16 | 16,0 | 125 | 22,0 | — | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 | ||
| левое исполнение | |||||||||||||||
| 1097996 | SDJCLF1616K11Q | 16 | 16 | 16,0 | 125 | 22,0 | — | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 |
| номер заказа | номер по каталогу | H | B | F | L1 | LH | эталонная пластина | опорная пластина | винт опорной пластины | шести- гранник | винт пластины | Torx |
| правое исполн | ение | |||||||||||
| 1097847 | SDJCR0808L07 | 8 | 8 | 10,0 | 140 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1097848 | SDJCR1010M07 | 10 | 10 | 12,0 | 150 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1097849 | SDJCR1212N07 | 12 | 12 | 16,0 | 160 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1097850 | SDJCR1212N11 | 12 | 12 | 16,0 | 160 | 22,0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 1244972 | SDJCR1616H07 | 16 | 16 | 20,0 | 100 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1097851 | SDJCR1616H11 | 16 | 16 | 20,0 | 100 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 |
| 1244974 | SDJCR2020K07 | 20 | 20 | 25,0 | 125 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1097853 | SDJCR2020K11 | 20 | 20 | 25,0 | 125 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 |
| 1097852 | SDJCR2020K15 | 20 | 20 | 25,0 | 125 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 мм | MS1158 | T15 |
| 1097854 | SDJCR2525M11 | 25 | 25 | 32,0 | 150 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 |
| 1097855 | SDJCR2525M15 | 25 | 25 | 32,0 | 150 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 мм | MS1158 | T15 |
| левое исполне | ние | |||||||||||
| 1097997 | SDJCL0808L07 | 8 | 8 | 10,0 | 140 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1097998 | SDJCL1010M07 | 10 | 10 | 12,0 | 150 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1097999 | SDJCL1212N07 | 12 | 12 | 16,0 | 160 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1098000 | SDJCL1212N11 | 12 | 12 | 16,0 | 160 | 22,0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 1244966 | SDJCL1616H07 | 16 | 16 | 20,0 | 100 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1098001 | SDJCL1616H11 | 16 | 16 | 20,0 | 100 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 |
| 1244968 | SDJCL2020K07 | 20 | 20 | 25,0 | 125 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 1098003 | SDJCL2020K11 | 20 | 20 | 25,0 | 125 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 |
| 1192473 | SDJCL2525M11 | 25 | 25 | 32,0 | 150 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 мм | MS1156 | T15 |
| 1098004 | SDJCL2525M15 | 25 | 25 | 32,0 | 150 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 мм | MS1158 | T15 |
