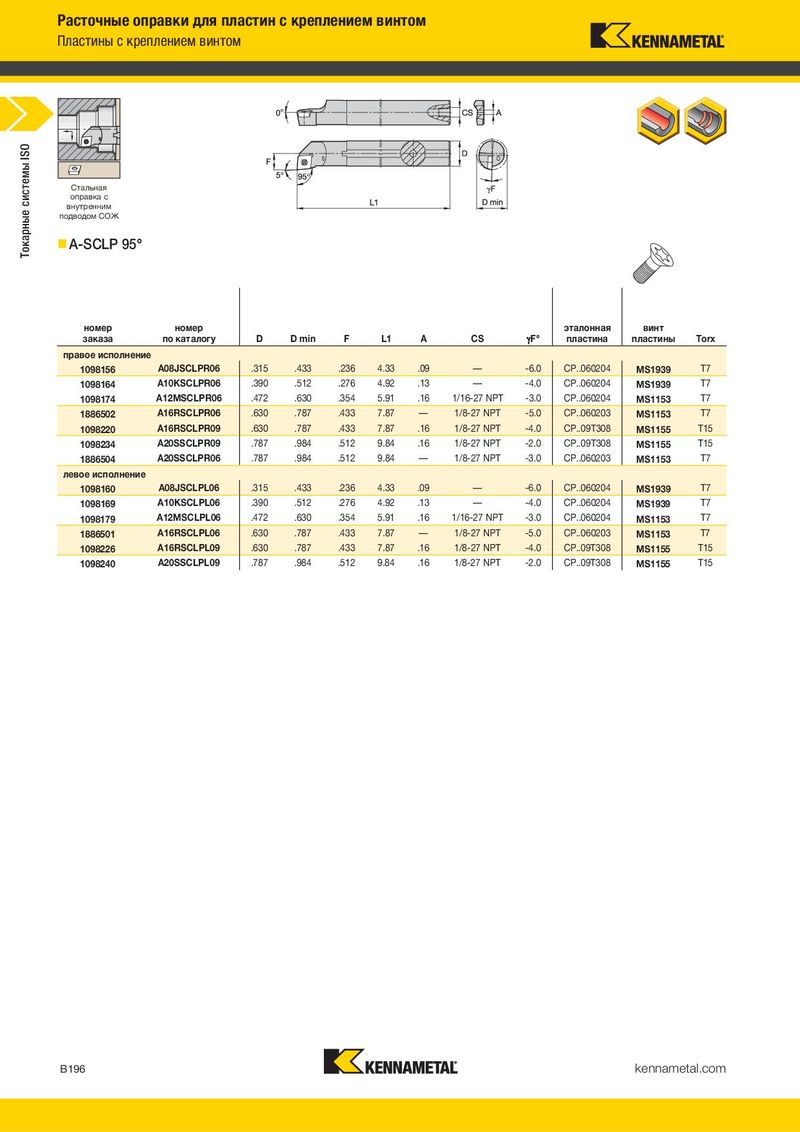

Основной каталог Kennametal невращающиеся инструменты - страница 218
Навигация
Цанги ER с внутренним охлаждением Kennametal 2024
Каталог Kennametal инновации 2019.1
Новинки Kennametal - весна 2026
Каталог Kennametal инновации 2020.2
Модульные инструментальные системы линейки KM4X Kennametal 2017
Сверла со сменными пластинами линейки Drill Fix PRO Kennametal 2024
Стальная Твердосплавная
| оправка с | оправка | ||
| внутренним | с внутренним | ||
| подводом СОЖ | подводом СОЖ | ||
| A-SCLP 95° | E-SCLP 95° |
номер номер эталонная винт номер номер эталонная винт
| заказа | по каталогу | D | D min | F | L1 | A | CS | aF° | пластина | пластины | Torx | заказа | по каталогу | D | D min | F | L1 | A | aF° | пластина | пластины | Torx | |
| правое исполнение | правое исполнение | ||||||||||||||||||||||
| 1098156 | A08JSCLPR06 | .315 | .433 | .236 | 4.33 | .09 | — | -6.0 | CP..060204 | MS1939 | T7 | 1152856 | E08KSCLPR06A | 8 | 11,0 | 6,0 | 122 | 2,4 | -6.0 | CP..060204 | MS1939 | T7 | |
| 1098164 | A10KSCLPR06 | .390 | .512 | .276 | 4.92 | .13 | — | -4.0 | CP..060204 | MS1939 | T7 | 1152858 | E10MSCLPR06A | 10 | 13,0 | 7,0 | 150 | 3,2 | -4.0 | CP..060204 | MS1939 | T7 | |
| 1098174 | A12MSCLPR06 | .472 | .630 | .354 | 5.91 | .16 | 1/16-27 NPT | -3.0 | CP..060204 | MS1153 | T7 | 1152889 | E12QSCLPR06 | 12 | 16,0 | 9,0 | 180 | 4,8 | -3.0 | CP..060204 | MS1153 | T7 | |
| 1886502 | A16RSCLPR06 | .630 | .787 | .433 | 7.87 | — | 1/8-27 NPT | -5.0 | CP..060203 | MS1153 | T7 | 1152897 | E16RSCLPR09 | 16 | 20,0 | 11,0 | 200 | 5,5 | -4.0 | CP..09T308 | MS1155 | T15 | |
| 1098220 | A16RSCLPR09 | .630 | .787 | .433 | 7.87 | .16 | 1/8-27 NPT | -4.0 | CP..09T308 | MS1155 | T15 | 1152902 | E20SSCLPR09 | 20 | 25,0 | 13,0 | 250 | 7,1 | -2.0 | CP..09T308 | MS1155 | T15 | |
| 1098234 | A20SSCLPR09 | .787 | .984 | .512 | 9.84 | .16 | 1/8-27 NPT | -2.0 | CP..09T308 | MS1155 | T15 | левое исполнение | |||||||||||
| 1886504 | A20SSCLPR06 | .787 | .984 | .512 | 9.84 | — | 1/8-27 NPT | -3.0 | CP..060203 | MS1153 | T7 | 1152857 | E08KSCLPL06A | 8 | 11,0 | 6,0 | 122 | 2,4 | -6.0 | CP..060204 | MS1939 | T7 | |
| левое исполнение | 1152859 | E10MSCLPL06A | 10 | 13,0 | 7,0 | 150 | 3,2 | -4.0 | CP..060204 | MS1939 | T7 | ||||||||||||
| 1098160 | A08JSCLPL06 | .315 | .433 | .236 | 4.33 | .09 | — | -6.0 | CP..060204 | MS1939 | T7 | 1152891 | E12QSCLPL06 | 12 | 16,0 | 9,0 | 180 | 4,8 | -3.0 | CP..060204 | MS1153 | T7 | |
| 1098169 | A10KSCLPL06 | .390 | .512 | .276 | 4.92 | .13 | — | -4.0 | CP..060204 | MS1939 | T7 | 1152899 | E16RSCLPL09 | 16 | 20,0 | 11,0 | 200 | 5,5 | -4.0 | CP..09T308 | MS1155 | T15 | |
| 1098179 | A12MSCLPL06 | .472 | .630 | .354 | 5.91 | .16 | 1/16-27 NPT | -3.0 | CP..060204 | MS1153 | T7 | 1152905 | E20SSCLPL09 | 20 | 25,0 | 13,0 | 250 | 7,1 | -2.0 | CP..09T308 | MS1155 | T15 | |
| 1886501 | A16RSCLPL06 | .630 | .787 | .433 | 7.87 | — | 1/8-27 NPT | -5.0 | CP..060203 | MS1153 | T7 | ||||||||||||
| 1098226 | A16RSCLPL09 | .630 | .787 | .433 | 7.87 | .16 | 1/8-27 NPT | -4.0 | CP..09T308 | MS1155 | T15 | ||||||||||||
| 1098240 | A20SSCLPL09 | .787 | .984 | .512 | 9.84 | .16 | 1/8-27 NPT | -2.0 | CP..09T308 | MS1155 | T15 |
| номер заказа | номер по каталогу | D | D min | F | L1 | A | CS | �F° | эталонная пластина | винт пластины | Torx |
| правое исполне | ние | ||||||||||
| 1098156 | A08JSCLPR06 | .315 | .433 | .236 | 4.33 | .09 | — | -6.0 | CP..060204 | MS1939 | T7 |
| 1098164 | A10KSCLPR06 | .390 | .512 | .276 | 4.92 | .13 | — | -4.0 | CP..060204 | MS1939 | T7 |
| 1098174 | A12MSCLPR06 | .472 | .630 | .354 | 5.91 | .16 | 1/16-27 NPT | -3.0 | CP..060204 | MS1153 | T7 |
| 1886502 | A16RSCLPR06 | .630 | .787 | .433 | 7.87 | — | 1/8-27 NPT | -5.0 | CP..060203 | MS1153 | T7 |
| 1098220 | A16RSCLPR09 | .630 | .787 | .433 | 7.87 | .16 | 1/8-27 NPT | -4.0 | CP..09T308 | MS1155 | T15 |
| 1098234 | A20SSCLPR09 | .787 | .984 | .512 | 9.84 | .16 | 1/8-27 NPT | -2.0 | CP..09T308 | MS1155 | T15 |
| 1886504 | A20SSCLPR06 | .787 | .984 | .512 | 9.84 | — | 1/8-27 NPT | -3.0 | CP..060203 | MS1153 | T7 |
| левое исполнен | ие | ||||||||||
| 1098160 | A08JSCLPL06 | .315 | .433 | .236 | 4.33 | .09 | — | -6.0 | CP..060204 | MS1939 | T7 |
| 1098169 | A10KSCLPL06 | .390 | .512 | .276 | 4.92 | .13 | — | -4.0 | CP..060204 | MS1939 | T7 |
| 1098179 | A12MSCLPL06 | .472 | .630 | .354 | 5.91 | .16 | 1/16-27 NPT | -3.0 | CP..060204 | MS1153 | T7 |
| 1886501 | A16RSCLPL06 | .630 | .787 | .433 | 7.87 | — | 1/8-27 NPT | -5.0 | CP..060203 | MS1153 | T7 |
| 1098226 | A16RSCLPL09 | .630 | .787 | .433 | 7.87 | .16 | 1/8-27 NPT | -4.0 | CP..09T308 | MS1155 | T15 |
| 1098240 | A20SSCLPL09 | .787 | .984 | .512 | 9.84 | .16 | 1/8-27 NPT | -2.0 | CP..09T308 | MS1155 | T15 |
