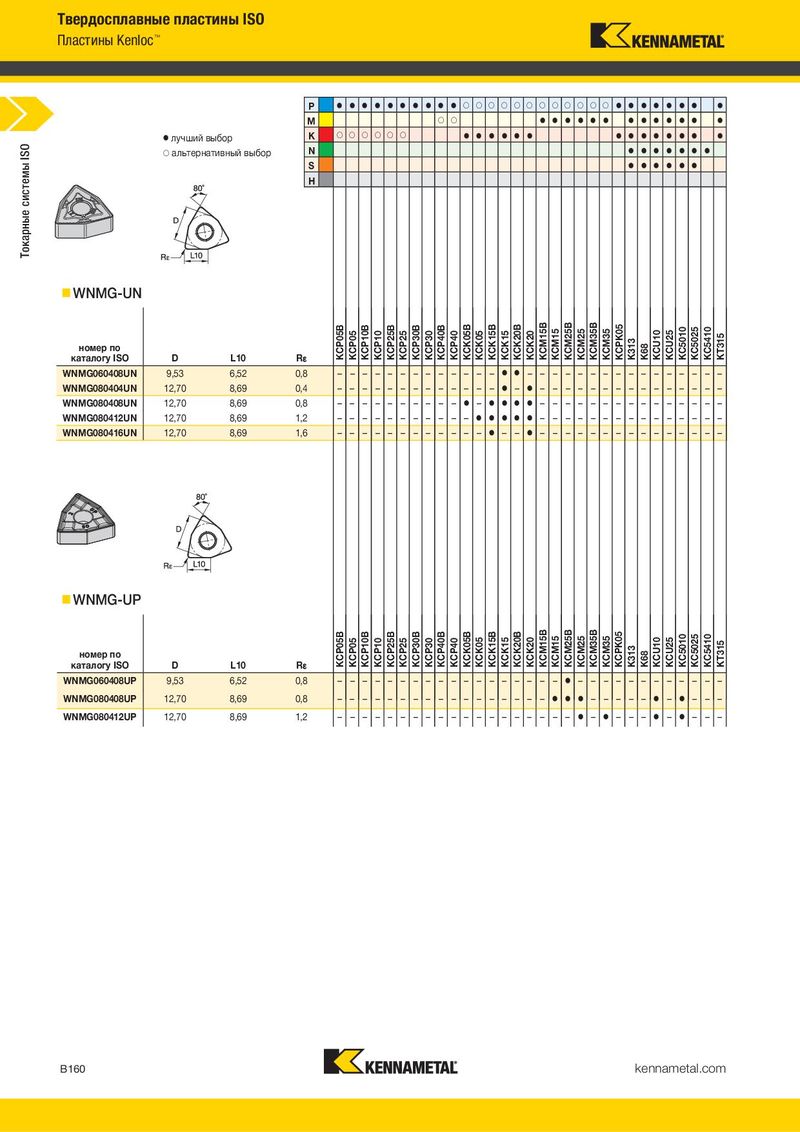

Основной каталог Kennametal невращающиеся инструменты - страница 182
Навигация
Цанги ER с внутренним охлаждением Kennametal 2024
Каталог Kennametal инновации 2019.1
Новинки Kennametal - весна 2026
Каталог Kennametal инновации 2020.2
Модульные инструментальные системы линейки KM4X Kennametal 2017
Сверла со сменными пластинами линейки Drill Fix PRO Kennametal 2024
P M лучший выбор K альтернативный выбор N S H
- DWLN-KC 95°
- WNMG-UN
номер по
| каталогу ISO | D | L10 | R | ||
| WNMG060408UN | 9,53 | 6,52 | 0,8 | – – – – – – – – – – – – – | – – – – – – – – – – – – – – – – |
| WNMG080404UN | 12,70 | 8,69 | 0,4 | – – – – – – – – – – – – – | – – – – – – – – – – – – – – – – |
| WNMG080408UN | 12,70 | 8,69 | 0,8 | – – – – – – – – – – | – – – – – – – – – – – – – – – – |
| WNMG080412UN | 12,70 | 8,69 | 1,2 | – – – – – – – – – – – | – – – – – – – – – – – – – – – |
| WNMG080416UN | 12,70 | 8,69 | 1,6 | – – – – – – – – – – – – | – – – – – – – – – – – – – – – – – |
- WNMG-UP
дополни- винт тельный
| номер | штифт Torx прижимной Torx опорной эталонная опорная номер стопорный | |
| заказа | с пазом Plus узел Plus пластина пластины пластина L1 LH B3 F H B по каталогу штифт | |
| правое исполнение | ||
| 2439476 | DWLNR2020K06KC04 20 20 25,0 125 31,0 — WN..060408 IWSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 2439471 | DWLNR2020K08KC04 20 20 25,0 125 33,0 — WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 2273451 | DWLNR2525M06KC04 25 25 32,0 150 25,0 — WN..060408 IWSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 1908860 | DWLNR2525M08KC04 25 25 32,0 150 25,0 4,0 WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 1908862 | DWLNR3232P08KC04 | 32 32 40,0 170 25,0 — WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP |
| левое исполнение | ||
| 2439470 | DWLNL2020K06KC04 20 20 25,0 125 31,0 — WN..060408 IWSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 2439472 | DWLNL2020K08KC04 20 20 25,0 125 33,0 — WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 2273455 | DWLNL2525M06KC04 25 25 32,0 150 25,0 — WN..060408 IWSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 1908861 | DWLNL2525M08KC04 25 25 32,0 150 25,0 4,0 WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 1908893 | DWLNL3232P08KC04 32 32 40,0 170 25,0 — WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
номер по
| каталогу ISO | D | L10 | R | ||||||
| WNMG060408UP | 9,53 | 6,52 | 0,8 | – – – – – – – – – – – – – – – – – – | – – – – – – – – – – – – | ||||
| WNMG080408UP | 12,70 | 8,69 | 0,8 | – – – – – – – – – – – – – – – – – | – – – – – | – | – – – | ||
| WNMG080412UP | 12,70 | 8,69 | 1,2 | – – – – – – – – – – – – – – – – – – – | – | – – – | – | – – – |
