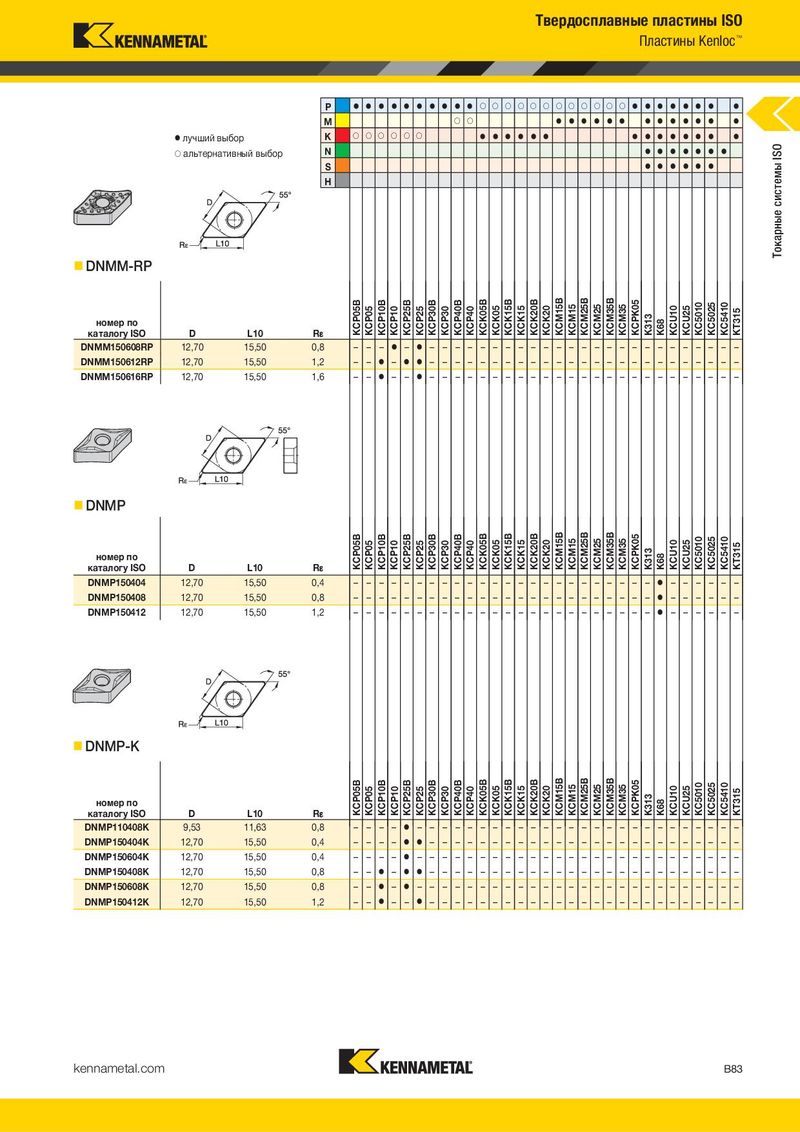

Основной каталог Kennametal невращающиеся инструменты - страница 105
Навигация
Цанги ER с внутренним охлаждением Kennametal 2024
Каталог Kennametal инновации 2019.1
Новинки Kennametal - весна 2026
Каталог Kennametal инновации 2020.2
Модульные инструментальные системы линейки KM4X Kennametal 2017
Сверла со сменными пластинами линейки Drill Fix PRO Kennametal 2024
P P M M
| лучший выбор | K | лучший выбор | K |
| альтернативный выбор | N | альтернативный выбор | N |
S S H H
- DNMG-UN
DNMM-RP
номер по
| каталогу ISO | D | L10 | R | |||
| DNMG110408UN | 9,53 | 11,63 | 0,8 | – – – – – – – – – – – – | – | – – – – – – – – – – – – – – – |
| DNMG110412UN | 9,53 | 11,63 | 1,2 | – – – – – – – – – – – – | – | – – – – – – – – – – – – – – – |
| DNMG150408UN | 12,70 | 15,50 | 0,8 | – – – – – – – – – – – | – – – – – – – – – – – – – – – | |
| DNMG150608UN | 12,70 | 15,50 | 0,8 | – – – – – – – – – – – – | – – – – – – – – – – – – – – – | |
| DNMG150412UN | 12,70 | 15,50 | 1,2 | – – – – – – – – – – – – – – | – – – – – – – – – – – – – – – – | |
| DNMG150612UN | 12,70 | 15,50 | 1,2 | – – – – – – – – – – – – | – – – – – – – – – – – – – – – | |
| DNMG150416UN | 12,70 | 15,50 | 1,6 | – – – – – – – – – – – – – – | – – – – – – – – – – – – – – – | |
| DNMG150616UN | 12,70 | 15,50 | 1,6 | – – – – – – – – – – – – | – – | – – – – – – – – – – – – – – – |
номер по
| каталогу ISO | D | L10 | R | ||||
| DNMM150608RP | 12,70 | 15,50 | 0,8 | – – – | – | – – – – – – – – – – – – – – – – – – – – – – – – – | |
| DNMM150612RP | 12,70 | 15,50 | 1,2 | – – | – | – – – – – – – – – – – – – – – – – – – – – – – – – | |
| DNMM150616RP | 12,70 | 15,50 | 1,6 | – – | – – | – – – – – – – – – – – – – – – – – – – – – – – – – |
- DNMP
- DNMG-UP
номер по
| каталогу ISO | D | L10 | R | ||||
| DNMG110408UP | 9,53 | 11,63 | 0,8 | – – – – – – – – – – – – – – – – – – – | – – – – – – – – – – – | ||
| DNMG150404UP | 12,70 | 15,50 | 0,4 | – – – – – – – – – – – – – – – – – | – – – – – – | – – – – – | |
| DNMG150604UP | 12,70 | 15,50 | 0,4 | – – – – – – – – – – – – – – – – – – – | – – – – – – – – – – – | ||
| DNMG150408UP | 12,70 | 15,50 | 0,8 | – – – – – – – – – – – – – – – – – | – | – – – – | – – – |
| DNMG150608UP | 12,70 | 15,50 | 0,8 | – – – – – – – – – – – – – – – – – | – – – – – – | – | – – – |
номер по
| каталогу ISO | D | L10 | R | ||
| DNMP150404 | 12,70 | 15,50 | 0,4 | – – – – – – – – – – – – – – – – – – – – – – – – | – – – – – – |
| DNMP150408 | 12,70 | 15,50 | 0,8 | – – – – – – – – – – – – – – – – – – – – – – – – | – – – – – – |
| DNMP150412 | 12,70 | 15,50 | 1,2 | – – – – – – – – – – – – – – – – – – – – – – – – | – – – – – – |
- DNMP-K
- DNMM-RM
номер по
| каталогу ISO | D | L10 | R | |||
| DNMM150408RM | 12,70 | 15,50 | 0,8 | – – – – – | – – – – – – – – – – – – – – – – – – – – – – – – – | |
| DNMM150608RM | 12,70 | 15,50 | 0,8 | – – – | – – | – – – – – – – – – – – – – – – – – – – – – – – |
| DNMM150412RM | 12,70 | 15,50 | 1,2 | – – – – | – – – – – – – – – – – – – – – – – – – – – – – – – – | |
| DNMM150612RM | 12,70 | 15,50 | 1,2 | – – – | – – – – – – – – – – – – – – – – – – – – – – – – | |
| DNMM150616RM | 12,70 | 15,50 | 1,6 | – – – – – | – – – – – – – – – – – – – – – – – – – – – – – – – |
номер по
| каталогу ISO | D | L10 | R | ||||
| DNMP110408K | 9,53 | 11,63 | 0,8 | – – – – | – – – – – – – – – – – – – – – – – – – – – – – – – – | ||
| DNMP150404K | 12,70 | 15,50 | 0,4 | – – – – | – – – – – – – – – – – – – – – – – – – – – – – – – | ||
| DNMP150604K | 12,70 | 15,50 | 0,4 | – – – – | – – – – – – – – – – – – – – – – – – – – – – – – – – | ||
| DNMP150408K | 12,70 | 15,50 | 0,8 | – – | – | – – – – – – – – – – – – – – – – – – – – – – – – – | |
| DNMP150608K | 12,70 | 15,50 | 0,8 | – – | – | – – – – – – – – – – – – – – – – – – – – – – – – – – | |
| DNMP150412K | 12,70 | 15,50 | 1,2 | – – | – – | – – – – – – – – – – – – – – – – – – – – – – – – – |
