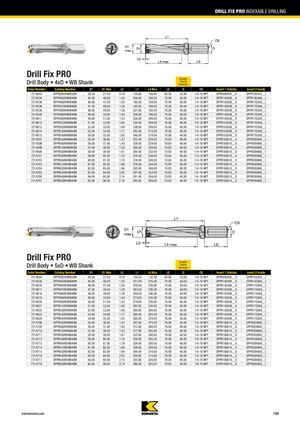

DRILL FIX PRO ИНДЕКСИРУЕМОЕ СВЕРЛЕНИЕ
Корпус сверла • 4xD • хвостовик WB
| Номер заказа | Каталожный номер | D1 | D1 макс | L5 | L1 | L4 макс | LS | D | CS | Пластина 1 внешняя | Пластина 2 внутренняя |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7214603 | DFPR265R4WB32M | 26,50 | 27,50 | 0,78 | 130,00 | 106,00 | 60,00 | 32,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7214529 | DFPR450R4WB40M | 45,00 | 46,00 | 1,50 | 206,00 | 180,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7214536 | DFPR460R4WB40M | 46,00 | 47,00 | 1,20 | 189,00 | 184,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214538 | DFPR470R4WB40M | 47,00 | 48,00 | 1,28 | 193,00 | 188,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214539 | DFPR480R4WB40M | 48,00 | 49,00 | 1,36 | 221,00 | 192,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214540 | DFPR490R4WB40M | 49,00 | 50,00 | 1,44 | 224,00 | 196,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214611 | DFPR500R4WB40M | 50,00 | 51,00 | 1,52 | 228,00 | 200,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214612 | DFPR510R4WB40M | 51,00 | 52,00 | 1,60 | 234,00 | 204,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214613 | DFPR520R4WB40M | 52,00 | 53,00 | 1,69 | 238,00 | 208,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214614 | DFPR530R4WB40M | 53,00 | 54,00 | 1,77 | 242,00 | 212,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214615 | DFPR540R4WB40M | 54,00 | 55,00 | 1,85 | 246,00 | 216,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214597 | DFPR550R4WB40M | 55,00 | 56,00 | 1,37 | 252,00 | 220,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214598 | DFPR560R4WB40M | 56,00 | 57,00 | 1,45 | 256,00 | 224,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214599 | DFPR570R4WB40M | 57,00 | 58,00 | 1,53 | 260,00 | 228,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214600 | DFPR580R4WB40M | 58,00 | 59,00 | 1,61 | 264,00 | 232,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214701 | DFPR590R4WB40M | 59,00 | 60,00 | 1,70 | 270,00 | 236,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214702 | DFPR600R4WB40M | 60,00 | 61,00 | 1,78 | 274,00 | 240,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214703 | DFPR610R4WB40M | 61,00 | 62,00 | 1,86 | 278,00 | 244,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214704 | DFPR620R4WB40M | 62,00 | 63,00 | 1,94 | 282,00 | 248,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214705 | DFPR630R4WB40M | 63,00 | 64,00 | 2,02 | 287,00 | 252,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214706 | DFPR640R4WB40M | 64,00 | 65,00 | 2,10 | 291,00 | 256,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214707 | DFPR650R4WB40M | 65,00 | 66,00 | 2,19 | 295,00 | 260,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
Корпус сверла • 5xD • хвостовик WB
| Номер заказа | Каталожный номер | D1 | D1 макс | L5 | L1 | L4 макс | LS | D | CS | Пластина 1 внешняя | Пластина 2 внутренняя |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7214604 | DFPR265R5WB32M | 26,50 | 27,50 | 0,78 | 156,50 | 132,50 | 60,00 | 32,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7214530 | DFPR450R5WB40M | 45,00 | 46,00 | 1,50 | 251,00 | 225,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7214616 | DFPR460R5WB40M | 46,00 | 47,00 | 1,20 | 258,00 | 230,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214617 | DFPR470R5WB40M | 47,00 | 48,00 | 1,28 | 263,00 | 235,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214618 | DFPR480R5WB40M | 48,00 | 49,00 | 1,36 | 269,00 | 240,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214619 | DFPR490R5WB40M | 49,00 | 50,00 | 1,44 | 273,00 | 245,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214620 | DFPR500R5WB40M | 50,00 | 51,00 | 1,52 | 278,00 | 250,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214621 | DFPR510R5WB40M | 51,00 | 52,00 | 1,60 | 285,00 | 255,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214622 | DFPR520R5WB40M | 52,00 | 53,00 | 1,69 | 290,00 | 260,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214623 | DFPR530R5WB40M | 53,00 | 54,00 | 1,77 | 295,00 | 265,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214624 | DFPR540R5WB40M | 54,00 | 55,00 | 1,85 | 300,00 | 270,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214708 | DFPR550R5WB40M | 55,00 | 56,00 | 1,37 | 307,00 | 275,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214709 | DFPR560R5WB40M | 56,00 | 57,00 | 1,45 | 312,00 | 280,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214710 | DFPR570R5WB40M | 57,00 | 58,00 | 1,53 | 317,00 | 285,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214711 | DFPR580R5WB40M | 58,00 | 59,00 | 1,61 | 322,00 | 290,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214712 | DFPR590R5WB40M | 59,00 | 60,00 | 1,70 | 329,00 | 295,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214713 | DFPR600R5WB40M | 60,00 | 61,00 | 1,78 | 334,00 | 300,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214714 | DFPR610R5WB40M | 61,00 | 62,00 | 1,86 | 339,00 | 305,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214715 | DFPR620R5WB40M | 62,00 | 63,00 | 1,94 | 344,00 | 310,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214716 | DFPR630R5WB40M | 63,00 | 64,00 | 2,02 | 350,00 | 315,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214717 | DFPR640R5WB40M | 64,00 | 65,00 | 2,10 | 355,00 | 320,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214718 | DFPR650R5WB40M | 65,00 | 66,00 | 2,19 | 360,00 | 325,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
