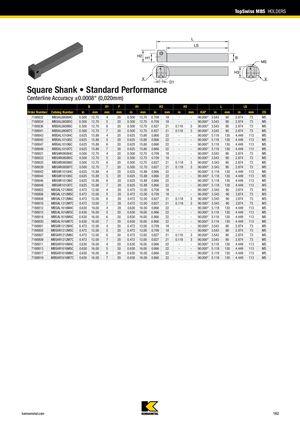

TopSwiss MBS HOLDERS

Квадратный хвостовик • Стандартная производительность

Точность по оси ±0.0008" (0,020 мм)

Номер заказа Каталожный номер B
дюйм		 B
мм		 D1
мм		 F
мм		 H1
дюйм		 H1
мм		 H2
дюйм		 H2
мм		 H3
дюйм		 H3
мм		 KAP L
дюйм		 L
мм		 LS
дюйм		 LS
мм		 CS
7188832 MBSAL0808I4C 0.500 12.70 4 20 0.500 12.70 0.709 18 — — 90.000° 3.543 90 2.874 73 M5
7188834 MBSAL0808I5C 0.500 12.70 5 20 0.500 12.70 0.709 18 — — 90.000° 3.543 90 2.874 73 M5
7188836 MBSAL0808I6C 0.500 12.70 6 20 0.500 12.70 0.827 21 0.118 3 90.000° 3.543 90 2.874 73 M5
7188841 MBSAL0808I7C 0.500 12.70 7 20 0.500 12.70 0.827 21 0.118 3 90.000° 3.543 90 2.874 73 M5
7188843 MBSAL1010I4C 0.625 15.88 4 20 0.625 15.88 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188845 MBSAL1010I5C 0.625 15.88 5 20 0.625 15.88 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188847 MBSAL1010I6C 0.625 15.88 6 20 0.625 15.88 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188849 MBSAL1010I7C 0.625 15.88 7 20 0.625 15.88 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188831 MBSAR0808I4C 0.500 12.70 4 20 0.500 12.70 0.709 18 — — 90.000° 3.543 90 2.874 73 M5
7188833 MBSAR0808I5C 0.500 12.70 5 20 0.500 12.70 0.709 18 — — 90.000° 3.543 90 2.874 73 M5
7188835 MBSAR0808I6C 0.500 12.70 6 20 0.500 12.70 0.827 21 0.118 3 90.000° 3.543 90 2.874 73 M5
7188839 MBSAR0808I7C 0.500 12.70 7 20 0.500 12.70 0.827 21 0.118 3 90.000° 3.543 90 2.874 73 M5
7188842 MBSAR1010I4C 0.625 15.88 4 20 0.625 15.88 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188844 MBSAR1010I5C 0.625 15.88 5 20 0.625 15.88 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188846 MBSAR1010I6C 0.625 15.88 6 20 0.625 15.88 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188848 MBSAR1010I7C 0.625 15.88 7 20 0.625 15.88 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188802 MBSAL1212M4C 0.472 12.00 4 20 0.472 12.00 0.709 18 — — 90.000° 3.543 90 2.874 73 M5
7188806 MBSAL1212M5C 0.472 12.00 5 20 0.472 12.00 0.709 18 — — 90.000° 3.543 90 2.874 73 M5
7188808 MBSAL1212M6C 0.472 12.00 6 20 0.472 12.00 0.827 21 0.118 3 90.000° 3.543 90 2.874 73 M5
7188810 MBSAL1212M7C 0.472 12.00 7 20 0.472 12.00 0.827 21 0.118 3 90.000° 3.543 90 2.874 73 M5
7188812 MBSAL1616M4C 0.630 16.00 4 20 0.630 16.00 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188815 MBSAL1616M5C 0.630 16.00 5 20 0.630 16.00 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188818 MBSAL1616M6C 0.630 16.00 6 20 0.630 16.00 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188820 MBSAL1616M7C 0.630 16.00 7 20 0.630 16.00 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188801 MBSAR1212M4C 0.472 12.00 4 20 0.472 12.00 0.709 18 — — 90.000° 3.543 90 2.874 73 M5
7188805 MBSAR1212M5C 0.472 12.00 5 20 0.472 12.00 0.709 18 — — 90.000° 3.543 90 2.874 73 M5
7188807 MBSAR1212M6C 0.472 12.00 6 20 0.472 12.00 0.827 21 0.118 3 90.000° 3.543 90 2.874 73 M5
7188809 MBSAR1212M7C 0.472 12.00 7 20 0.472 12.00 0.827 21 0.118 3 90.000° 3.543 90 2.874 73 M5
7188811 MBSAR1616M4C 0.630 16.00 4 20 0.630 16.00 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188813 MBSAR1616M5C 0.630 16.00 5 20 0.630 16.00 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188817 MBSAR1616M6C 0.630 16.00 6 20 0.630 16.00 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
7188819 MBSAR1616M7C 0.630 16.00 7 20 0.630 16.00 0.866 22 — — 90.000° 5.118 130 4.449 113 M5
