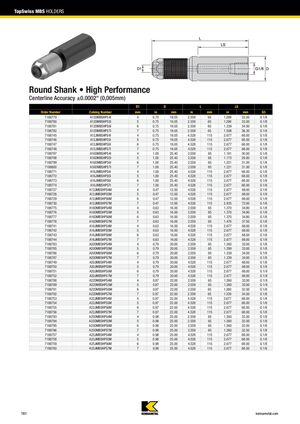

TopSwiss MBS HOLDERS

Круглый хвостовик • Высокая производительность

Точность по оси ±0.0002" (0,005 мм)

Номер заказа Каталожный номер D1
мм		 D
дюйм		 D
мм		 L
дюйм		 L
мм		 LS
дюйм		 LS
мм		 G3
7188779 A12DMBSHPS4I 4 0.75 19.05 2.559 65 1.299 33.00 G 1/8
7188780 A12DMBSHPS5I 5 0.75 19.05 2.559 65 1.299 33.00 G 1/8
7188781 A12DMBSHPS6I 6 0.75 19.05 2.559 65 1.339 34.00 G 1/8
7188782 A12DMBSHPS7I 7 0.75 19.05 2.559 65 1.508 38.30 G 1/8
7188745 A12JMBSHPS4I 4 0.75 19.05 4.528 115 2.677 68.00 G 1/8
7188746 A12JMBSHPS5I 5 0.75 19.05 4.528 115 2.677 68.00 G 1/8
7188747 A12JMBSHPS6I 6 0.75 19.05 4.528 115 2.677 68.00 G 1/8
7188748 A12JMBSHPS7I 7 0.75 19.05 4.528 115 2.677 68.00 G 1/8
7188797 A16DMBSHPS4I 4 1.00 25.40 2.559 65 1.181 30.00 G 1/8
7188798 A16DMBSHPS5I 5 1.00 25.40 2.559 65 1.173 29.80 G 1/8
7188799 A16DMBSHPS6I 6 1.00 25.40 2.559 65 1.221 31.00 G 1/8
7188800 A16DMBSHPS7I 7 1.00 25.40 2.559 65 1.221 31.00 G 1/8
7188771 A16JMBSHPS4I 4 1.00 25.40 4.528 115 2.677 68.00 G 1/8
7188772 A16JMBSHPS5I 5 1.00 25.40 4.528 115 2.677 68.00 G 1/8
7188773 A16JMBSHPS6I 6 1.00 25.40 4.528 115 2.677 68.00 G 1/8
7188774 A16JMBSHPS7I 7 1.00 25.40 4.528 115 2.677 68.00 G 1/8
7188727 A12JMBSHPS4M 4 0.47 12.00 4.528 115 2.677 68.00 G 1/8
7188728 A12JMBSHPS5M 5 0.47 12.00 4.528 115 2.677 68.00 G 1/8
7188729 A12JMBSHPS6M 6 0.47 12.00 4.528 115 2.677 68.00 G 1/8
7188730 A12JMBSHPS7M 7 0.47 12.00 4.528 115 2.835 72.00 G 1/8
7188775 A16DMBSHPS4M 4 0.63 16.00 2.559 65 1.370 34.80 G 1/8
7188776 A16DMBSHPS5M 5 0.63 16.00 2.559 65 1.370 34.80 G 1/8
7188777 A16DMBSHPS6M 6 0.63 16.00 2.559 65 1.370 34.80 G 1/8
7188778 A16DMBSHPS7M 7 0.63 16.00 2.559 65 1.476 37.50 G 1/8
7188741 A16JMBSHPS4M 4 0.63 16.00 4.528 115 2.677 68.00 G 1/8
7188742 A16JMBSHPS5M 5 0.63 16.00 4.528 115 2.677 68.00 G 1/8
7188743 A16JMBSHPS6M 6 0.63 16.00 4.528 115 2.677 68.00 G 1/8
7188744 A16JMBSHPS7M 7 0.63 16.00 4.528 115 2.677 68.00 G 1/8
7188783 A20DMBSHPS4M 4 0.79 20.00 2.559 65 1.260 32.00 G 1/8
7188785 A20DMBSHPS5M 5 0.79 20.00 2.559 65 1.299 33.00 G 1/8
7188786 A20DMBSHPS6M 6 0.79 20.00 2.559 65 1.339 34.00 G 1/8
7188787 A20DMBSHPS7M 7 0.79 20.00 2.559 65 1.339 34.00 G 1/8
7188749 A20JMBSHPS4M 4 0.79 20.00 4.528 115 2.677 68.00 G 1/8
7188750 A20JMBSHPS5M 5 0.79 20.00 4.528 115 2.677 68.00 G 1/8
7188751 A20JMBSHPS6M 6 0.79 20.00 4.528 115 2.677 68.00 G 1/8
7188752 A20JMBSHPS7M 7 0.79 20.00 4.528 115 2.677 68.00 G 1/8
7188788 A22DMBSHPS4M 4 0.87 22.00 2.559 65 1.260 32.00 G 1/8
7188789 A22DMBSHPS5M 5 0.87 22.00 2.559 65 1.260 32.00 G 1/8
7188791 A22DMBSHPS6M 6 0.87 22.00 2.559 65 1.260 32.00 G 1/8
7188792 A22DMBSHPS7M 7 0.87 22.00 2.559 65 1.339 34.00 G 1/8
7188753 A22JMBSHPS4M 4 0.87 22.00 4.528 115 2.677 68.00 G 1/8
7188754 A22JMBSHPS5M 5 0.87 22.00 4.528 115 2.677 68.00 G 1/8
7188755 A22JMBSHPS6M 6 0.87 22.00 4.528 115 2.677 68.00 G 1/8
7188756 A22JMBSHPS7M 7 0.87 22.00 4.528 115 2.677 68.00 G 1/8
7188793 A25DMBSHPS4M 4 0.98 25.00 2.559 65 1.260 32.00 G 1/8
7188794 A25DMBSHPS5M 5 0.98 25.00 2.559 65 1.260 32.00 G 1/8
7188795 A25DMBSHPS6M 6 0.98 25.00 2.559 65 1.260 32.00 G 1/8
7188796 A25DMBSHPS7M 7 0.98 25.00 2.559 65 1.260 32.00 G 1/8
7188757 A25JMBSHPS4M 4 0.98 25.00 4.528 115 2.677 68.00 G 1/8
7188758 A25JMBSHPS5M 5 0.98 25.00 4.528 115 2.677 68.00 G 1/8
7188759 A25JMBSHPS6M 6 0.98 25.00 4.528 115 2.677 68.00 G 1/8
7188760 A25JMBSHPS7M 7 0.98 25.00 4.528 115 2.677 68.00 G 1/8
