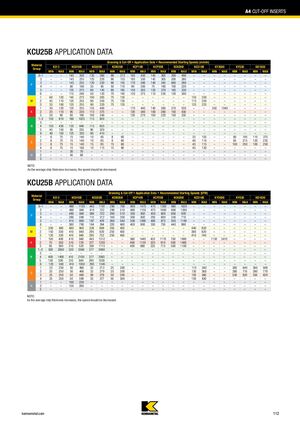

Данные по применению KCU25B
Резцовые пластины для нарезки канавок и отрезки • Данные по применению • Рекомендуемые стартовые скорости (м/мин)
| Группа материала | K313 | KCU10B | KCU25B | KCM35B | KCP10B | KCP25B | KCK20B | KCS10B | KY3500 | KYS30 | KB1630 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| P | ||||||||||||||||||||||
| 0–1 | – | – | 145 | 350 | 135 | 360 | 90 | 213 | 185 | 450 | 145 | 365 | 200 | 490 | – | – | – | – | – | – | – | – |
| 2 | – | – | 145 | 255 | 125 | 220 | 90 | 155 | 185 | 350 | 145 | 305 | 200 | 380 | – | – | – | – | – | – | – | – |
| 3 | – | – | 145 | 255 | 120 | 220 | 90 | 155 | 170 | 260 | 140 | 245 | 600 | 280 | – | – | – | – | – | – | – | – |
| 4 | – | – | 80 | 180 | 35 | 95 | 50 | 110 | 90 | 200 | 75 | 180 | 100 | 220 | – | – | – | – | – | – | – | – |
| 5 | – | – | 125 | 275 | 60 | 145 | 80 | 165 | 150 | 305 | 120 | 270 | 165 | 330 | – | – | – | – | – | – | – | – |
| 6 | – | – | 115 | 240 | 50 | 120 | 70 | 145 | 120 | 275 | 110 | 230 | 130 | 300 | – | – | – | – | – | – | – | – |
| M | ||||||||||||||||||||||
| 1 | 60 | 120 | 145 | 275 | 100 | 265 | 75 | 135 | – | – | – | – | – | – | 135 | 250 | – | – | – | – | – | – |
| 2 | 45 | 110 | 125 | 255 | 90 | 250 | 75 | 135 | – | – | – | – | – | – | 115 | 250 | – | – | – | – | – | – |
| 3 | 35 | 100 | 125 | 255 | 90 | 220 | 75 | 135 | – | – | – | – | – | – | 125 | 225 | – | – | – | – | – | – |
| K | ||||||||||||||||||||||
| 1 | 30 | 120 | 125 | 255 | 135 | 400 | – | – | 170 | 440 | 140 | 360 | 210 | 550 | – | – | 350 | 1040 | – | – | – | – |
| 2 | 25 | 110 | 95 | 220 | 115 | 375 | – | – | 120 | 340 | 100 | 280 | 150 | 430 | – | – | – | – | – | – | – | – |
| 3 | 20 | 90 | 65 | 160 | 100 | 340 | – | – | 120 | 270 | 100 | 220 | 150 | 335 | – | – | – | – | – | – | – | – |
| N | ||||||||||||||||||||||
| 1–2 | 150 | 610 | 160 | 1025 | 115 | 820 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 4 | 120 | 430 | 125 | 640 | 115 | 635 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 5 | 45 | 150 | 95 | 255 | 90 | 320 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 6 | 40 | 150 | 125 | 320 | 90 | 410 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S | ||||||||||||||||||||||
| 1 | 8 | 75 | 15 | 140 | 10 | 65 | 8 | 60 | – | – | – | – | – | – | 35 | 105 | – | – | 80 | 195 | 110 | 275 |
| 2 | 8 | 75 | 15 | 140 | 10 | 85 | 8 | 60 | – | – | – | – | – | – | 40 | 110 | – | – | 85 | 215 | 120 | 235 |
| 3 | 8 | 75 | 15 | 140 | 15 | 85 | 15 | 60 | – | – | – | – | – | – | 45 | 115 | – | – | 100 | 250 | 100 | 250 |
| 4 | 8 | 75 | 15 | 180 | 10 | 115 | 15 | 90 | – | – | – | – | – | – | 45 | 130 | – | – | – | – | – | – |
| H | ||||||||||||||||||||||
| 1 | – | – | 30 | 70 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | 45 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
Примечание: При увеличении средней толщины стружки скорость должна быть уменьшена.
Резцовые пластины для нарезки канавок и отрезки • Данные по применению • Рекомендуемые стартовые скорости (м/мин)
| Группа материала | K313 | KCU10B | KCU25B | KCM35B | KCP10B | KCP25B | KCK20B | KCS10B | KY3500 | KYS30 | KB1630 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| P | ||||||||||||||||||||||
| 0–1 | – | – | 480 | 1150 | 443 | 1181 | 290 | 700 | 600 | 1475 | 475 | 1200 | 660 | 1620 | – | – | – | – | – | – | – | – |
| 2 | – | – | 480 | 840 | 410 | 722 | 290 | 510 | 600 | 1150 | 475 | 1000 | 660 | 1260 | – | – | – | – | – | – | – | – |
| 3 | – | – | 480 | 840 | 394 | 722 | 290 | 510 | 550 | 850 | 450 | 800 | 600 | 920 | – | – | – | – | – | – | – | – |
| 4 | – | – | 260 | 590 | 115 | 312 | 160 | 350 | 300 | 650 | 250 | 600 | 330 | 710 | – | – | – | – | – | – | – | – |
| 5 | – | – | 410 | 900 | 197 | 476 | 260 | 540 | 500 | 1000 | 400 | 875 | 550 | 1100 | – | – | – | – | – | – | – | – |
| 6 | – | – | 380 | 790 | 164 | 394 | 220 | 480 | 400 | 900 | 350 | 750 | 440 | 990 | – | – | – | – | – | – | – | – |
| M | ||||||||||||||||||||||
| 1 | 200 | 400 | 480 | 900 | 328 | 869 | 250 | 450 | – | – | – | – | – | – | 440 | 820 | – | – | – | – | – | – |
| 2 | 150 | 350 | 410 | 840 | 295 | 820 | 250 | 450 | – | – | – | – | – | – | 380 | 820 | – | – | – | – | – | – |
| 3 | 120 | 320 | 410 | 840 | 295 | 722 | 250 | 450 | – | – | – | – | – | – | 410 | 740 | – | – | – | – | – | – |
| K | ||||||||||||||||||||||
| 1 | 100 | 400 | 410 | 840 | 443 | 1312 | – | – | 560 | 1440 | 455 | 1170 | 700 | 1800 | – | – | 1150 | 3410 | – | – | – | – |
| 2 | 75 | 350 | 310 | 720 | 377 | 1230 | – | – | 400 | 1120 | 325 | 910 | 500 | 1400 | – | – | – | – | – | – | – | – |
| 3 | 65 | 300 | 210 | 520 | 328 | 1115 | – | – | 400 | 880 | 325 | 715 | 500 | 1100 | – | – | – | – | – | – | – | – |
| N | ||||||||||||||||||||||
| 1–2 | 500 | 2000 | 520 | 3360 | 377 | 2690 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | 400 | 1400 | 410 | 2100 | 377 | 2083 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 5 | 150 | 500 | 310 | 840 | 295 | 1050 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 6 | 120 | 500 | 410 | 1050 | 295 | 1345 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | ||||||||||||||||||||||
| 1 | 25 | 250 | 50 | 460 | 33 | 213 | 25 | 200 | – | – | – | – | – | – | 110 | 340 | – | – | 260 | 640 | 360 | 900 |
| 2 | 25 | 250 | 50 | 460 | 33 | 279 | 25 | 200 | – | – | – | – | – | – | 130 | 360 | – | – | 280 | 710 | 390 | 770 |
| 3 | 25 | 250 | 50 | 460 | 49 | 279 | 50 | 200 | – | – | – | – | – | – | 150 | 380 | – | – | 330 | 820 | 330 | 820 |
| 4 | 25 | 250 | 50 | 590 | 33 | 377 | 50 | 300 | – | – | – | – | – | – | 150 | 430 | – | – | – | – | – | – |
| H | ||||||||||||||||||||||
| 1 | – | – | 100 | 230 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | 150 | 260 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
Примечание: При увеличении средней толщины стружки скорость должна быть уменьшена.
