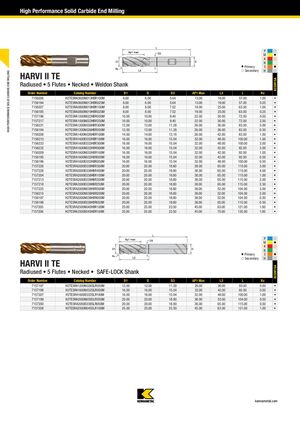

Высокопроизводительное концевое фрезерование из твердого сплава
HARVI II TE
С закругленной кромкой • 5 зубьев • С проточкой • Хвостовик Weldon
KCSM15A
| Номер заказа | Номер каталога | D1 | D | D3 | AP1 макс | L3 | L | R |
|---|---|---|---|---|---|---|---|---|
| 7156206 | H2TE5RA0600N013HBR100M | 6.00 | 6.00 | 5.64 | 13.00 | 19.00 | 57.00 | 1.00 |
| 7156184 | H2TE5RA0600N013HBR025M | 6.00 | 6.00 | 5.64 | 13.00 | 19.00 | 57.00 | 0.25 |
| 7156207 | H2TE5RA0800N019HBR100M | 8.00 | 8.00 | 7.52 | 19.00 | 25.00 | 63.00 | 1.00 |
| 7156185 | H2TE5RA0800N019HBR025M | 8.00 | 8.00 | 7.52 | 19.00 | 25.00 | 63.00 | 0.25 |
| 7157196 | H2TE5RA1000N022HBR050M | 10.00 | 10.00 | 9.40 | 22.00 | 30.00 | 72.00 | 0.50 |
| 7157217 | H2TE5RA1000N022HBR250M | 10.00 | 10.00 | 9.40 | 22.00 | 30.00 | 72.00 | 2.50 |
| 7156231 | H2TE5RA1200N026HBR300M | 12.00 | 12.00 | 11.28 | 26.00 | 36.00 | 83.00 | 3.00 |
| 7156194 | H2TE5RA1200N026HBR050M | 12.00 | 12.00 | 11.28 | 26.00 | 36.00 | 83.00 | 0.50 |
| 7156208 | H2TE5RA1400N026HBR100M | 14.00 | 14.00 | 13.16 | 26.00 | 42.00 | 83.00 | 1.00 |
| 7156210 | H2TE5RA1600E032HBR100M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 1.00 |
| 7156233 | H2TE5RA1600E032HBR300M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 3.00 |
| 7156232 | H2TE5RA1600N032HBR300M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 3.00 |
| 7156209 | H2TE5RA1600N032HBR100M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 1.00 |
| 7156195 | H2TE5RA1600N032HBR050M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 0.50 |
| 7156196 | H2TE5RA1600E032HBR050M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 0.50 |
| 7157226 | H2TE5RA2000E038HBR300M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 3.00 |
| 7157228 | H2TE5RA2000E038HBR400M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 4.00 |
| 7157204 | H2TE5RA2000E038HBR100M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 1.00 |
| 7157213 | H2TE5RA2000E038HBR200M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 2.00 |
| 7157218 | H2TE5RA2000E038HBR250M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 2.50 |
| 7157225 | H2TE5RA2000N038HBR300M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 3.00 |
| 7156215 | H2TE5RA2000N038HBR200M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 2.00 |
| 7156197 | H2TE5RA2000N038HBR050M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 0.50 |
| 7156198 | H2TE5RA2000E038HBR050M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 0.50 |
| 7157205 | H2TE5RA2500N045HBR100M | 25.00 | 25.00 | 23.50 | 45.00 | 63.00 | 121.00 | 1.00 |
| 7157206 | H2TE5RA2500E045HBR100M | 25.00 | 25.00 | 23.50 | 45.00 | 75.00 | 135.00 | 1.00 |
HARVI II TE
С закругленной кромкой • 5 зубьев • С проточкой • Хвостовик SAFE-LOCK™
KCSM15A
| Номер заказа | Номер каталога | D1 | D | D3 | AP1 макс | L3 | L | R |
|---|---|---|---|---|---|---|---|---|
| 7157197 | H2TE5RA1200N026SLR050M | 12.00 | 12.00 | 11.28 | 26.00 | 36.00 | 83.00 | 0.50 |
| 7157198 | H2TE5RA1600N032SLR050M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 0.50 |
| 7157207 | H2TE5RA1600E032SLR100M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 1.00 |
| 7157199 | H2TE5RA2000N038SLR050M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 0.50 |
| 7157200 | H2TE5RA2000E038SLR050M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 0.50 |
| 7157208 | H2TE5RA2500N045SLR100M | 25.00 | 25.00 | 23.50 | 45.00 | 63.00 | 121.00 | 1.00 |
