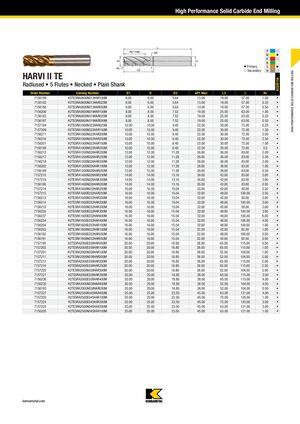

Высокопроизводительное концевое фрезерование из твердого сплава
HARVI II TE
С закругленной кромкой • 5 зубьев • С проточкой • Цилиндрический хвостовик
KCSM15A
| Номер заказа | Номер каталога | D1 | D | D3 | AP1 макс | L3 | L | R |
|---|---|---|---|---|---|---|---|---|
| 7156199 | H2TE5RA0600N013HAR100M | 6.00 | 6.00 | 5.64 | 13.00 | 19.00 | 57.00 | 1.00 |
| 7156182 | H2TE5RA0600N013HAR025M | 6.00 | 6.00 | 5.64 | 13.00 | 19.00 | 57.00 | 0.25 |
| 7156186 | H2TE5RA0600N013HAR050M | 6.00 | 6.00 | 5.64 | 13.00 | 19.00 | 57.00 | 0.50 |
| 7156200 | H2TE5RA0800N019HAR100M | 8.00 | 8.00 | 7.52 | 19.00 | 25.00 | 63.00 | 1.00 |
| 7156183 | H2TE5RA0800N019HAR025M | 8.00 | 8.00 | 7.52 | 19.00 | 25.00 | 63.00 | 0.25 |
| 7156187 | H2TE5RA0800N019HAR050M | 8.00 | 8.00 | 7.52 | 19.00 | 25.00 | 63.00 | 0.50 |
| 7157194 | H2TE5RA1000N022HAR025M | 10.00 | 10.00 | 9.40 | 22.00 | 30.00 | 72.00 | 0.25 |
| 7157209 | H2TE5RA1000N022HAR150M | 10.00 | 10.00 | 9.40 | 22.00 | 30.00 | 72.00 | 1.50 |
| 7156211 | H2TE5RA1000N022HAR200M | 10.00 | 10.00 | 9.40 | 22.00 | 30.00 | 72.00 | 2.00 |
| 7156216 | H2TE5RA1000N022HAR250M | 10.00 | 10.00 | 9.40 | 22.00 | 30.00 | 72.00 | 2.50 |
| 7156201 | H2TE5RA1000N022HAR100M | 10.00 | 10.00 | 9.40 | 22.00 | 30.00 | 72.00 | 1.00 |
| 7156188 | H2TE5RA1000N022HAR050M | 10.00 | 10.00 | 9.40 | 22.00 | 30.00 | 72.00 | 0.50 |
| 7156212 | H2TE5RA1200N026HAR200M | 12.00 | 12.00 | 11.28 | 26.00 | 36.00 | 83.00 | 2.00 |
| 7156217 | H2TE5RA1200N026HAR250M | 12.00 | 12.00 | 11.28 | 26.00 | 36.00 | 83.00 | 2.50 |
| 7156218 | H2TE5RA1200N026HAR300M | 12.00 | 12.00 | 11.28 | 26.00 | 36.00 | 83.00 | 3.00 |
| 7156202 | H2TE5RA1200N026HAR100M | 12.00 | 12.00 | 11.28 | 26.00 | 36.00 | 83.00 | 1.00 |
| 7156189 | H2TE5RA1200N026HAR050M | 12.00 | 12.00 | 11.28 | 26.00 | 36.00 | 83.00 | 0.50 |
| 7157210 | H2TE5RA1400N026HAR200M | 14.00 | 14.00 | 13.16 | 26.00 | 42.00 | 83.00 | 2.00 |
| 7157219 | H2TE5RA1400N026HAR300M | 14.00 | 14.00 | 13.16 | 26.00 | 42.00 | 83.00 | 3.00 |
| 7156190 | H2TE5RA1400N026HAR050M | 14.00 | 14.00 | 13.16 | 26.00 | 42.00 | 83.00 | 0.50 |
| 7157214 | H2TE5RA1600N032HAR250M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 2.50 |
| 7157215 | H2TE5RA1600E032HAR250M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 2.50 |
| 7156213 | H2TE5RA1600N032HAR200M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 2.00 |
| 7156214 | H2TE5RA1600E032HAR200M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 2.00 |
| 7156219 | H2TE5RA1600N032HAR300M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 3.00 |
| 7156220 | H2TE5RA1600E032HAR300M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 3.00 |
| 7156237 | H2TE5RA1600E032HAR600M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 6.00 |
| 7156234 | H2TE5RA1600E032HAR400M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 4.00 |
| 7156204 | H2TE5RA1600E032HAR100M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 1.00 |
| 7156203 | H2TE5RA1600N032HAR100M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 1.00 |
| 7156192 | H2TE5RA1600E032HAR050M | 16.00 | 16.00 | 15.04 | 32.00 | 48.00 | 100.00 | 0.50 |
| 7156191 | H2TE5RA1600N032HAR050M | 16.00 | 16.00 | 15.04 | 32.00 | 42.00 | 92.00 | 0.50 |
| 7157195 | H2TE5RA2000E038HAR050M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 0.50 |
| 7157202 | H2TE5RA2000E038HAR100M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 1.00 |
| 7157201 | H2TE5RA2000N038HAR100M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 1.00 |
| 7157211 | H2TE5RA2000N038HAR200M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 2.00 |
| 7157212 | H2TE5RA2000E038HAR200M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 2.00 |
| 7157216 | H2TE5RA2000E038HAR250M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 2.50 |
| 7157220 | H2TE5RA2000N038HAR300M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 3.00 |
| 7157221 | H2TE5RA2000E038HAR300M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 3.00 |
| 7156236 | H2TE5RA2000E038HAR400M | 20.00 | 20.00 | 18.80 | 38.00 | 65.00 | 115.00 | 4.00 |
| 7156235 | H2TE5RA2000N038HAR400M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 4.00 |
| 7156193 | H2TE5RA2000N038HAR050M | 20.00 | 20.00 | 18.80 | 38.00 | 52.00 | 104.00 | 0.50 |
| 7157227 | H2TE5RA2500N045HAR400M | 25.00 | 25.00 | 23.50 | 45.00 | 63.00 | 121.00 | 4.00 |
| 7157203 | H2TE5RA2500E045HAR100M | 25.00 | 25.00 | 23.50 | 45.00 | 75.00 | 135.00 | 1.00 |
| 7157224 | H2TE5RA2500E045HAR300M | 25.00 | 25.00 | 23.50 | 45.00 | 75.00 | 135.00 | 3.00 |
| 7157222 | H2TE5RA2500N045HAR300M | 25.00 | 25.00 | 23.50 | 45.00 | 63.00 | 121.00 | 3.00 |
| 7156205 | H2TE5RA2500N045HAR100M | 25.00 | 25.00 | 23.50 | 45.00 | 63.00 | 121.00 | 1.00 |
