Модульные сверлильные системы линейки KSEM ST Line Kennametal 2024 - страница 3

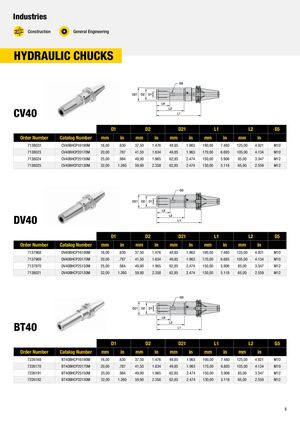

Industries Construction General Engineering HYDRAULIC CHUCKS CV40 D1 D2 D21 L1 L2 G5 Order Number Catalog Number mm in mm in mm in mm in mm in 7138022 CV40BHCP16190M 16,00 .630 37,50 1.476 49,85 1.963 190,00 7.480 125,00 4.921 M10 7138023 CV40BHCP20170M 20,00 .787 41,50 1.634 49,85 1.963 170,00 6.693 105,00 4.134 M10 7138024 CV40BHCP25150M 25,00 .984 49,90 1.965 62,85 2.474 150,00 5.906 85,00 3.347 M12 7138025 CV40BHCP32130M 32,00 1.260 59,90 2.358 62,85 2.474 130,00 5.118 65,00 2.559 M12 DV40 D1 D2 D21 L1 L2 G5 Order Number Catalog Number mm in mm in mm in mm in mm in 7137968 DV40BHCP16190M 16,00 .630 37,50 1.476 49,85 1.963 190,00 7.480 125,00 4.921 M10 7137969 DV40BHCP20170M 20,00 .787 41,50 1.634 49,85 1.963 170,00 6.693 105,00 4.134 M10 7137970 DV40BHCP25150M 25,00 .984 49,90 1.965 62,85 2.474 150,00 5.906 85,00 3.347 M12 7138021 DV40BHCP32130M 32,00 1.260 59,90 2.358 62,85 2.474 130,00 5.118 65,00 2.559 M12 BT40 D1 D2 D21 L1 L2 G5 Order Number Catalog Number mm in mm in mm in mm in mm in 7226169 BT40BHCP16190M 16,00 .630 37,50 1.476 49,85 1.963 190,00 7.480 125,00 4.921 M10 7226170 BT40BHCP20170M 20,00 .787 41,50 1.634 49,85 1.963 170,00 6.693 105,00 4.134 M10 7226191 BT40BHCP25150M 25,00 .984 49,90 1.965 62,85 2.474 150,00 5.906 85,00 3.347 M12 7226192 BT40BHCP32130M 32,00 1.260 59,90 2.358 62,85 2.474 130,00 5.118 65,00 2.559 M12 3
