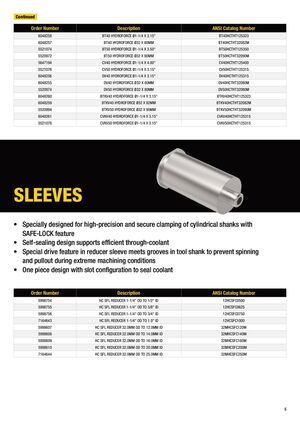

Continued Order Number Description ANSI Catalog Number 6048258 BT40 HYDROFORCE Ø1-1/4 X 3.15" BT40HCTHT125323 6048257 BT40 HYDROFORCE Ø32 X 80MM BT40HCTHT32082M 5521074 BT50 HYDROFORCE Ø1-1/4 X 3.50" BT50HCTHT125350 5520972 BT50 HYDROFORCE Ø32 X 90MM BT50HCTHT32090M 5647194 CV40 HYDROFORCE Ø1-1/4 X 4.00" CV40HCTHT125400 5521076 CV50 HYDROFORCE Ø1-1/4 X 3.15" CV50HCTHT125315 6048256 DV40 HYDROFORCE Ø1-1/4 X 3.15" DV40HCTHT125315 6048255 DV40 HYDROFORCE Ø32 X 80MM DV40HCTHT32080M 5520974 DV50 HYDROFORCE Ø32 X 80MM DV50HCTHT32080M 6048260 BTKV40 HYDROFORCE Ø1-1/4 X 3.15" BTKV40HCTHT125323 6048259 BTKV40 HYDROFORCE Ø32 X 82MM BTKV40HCTHT32082M 5520994 BTKV50 HYDROFORCE Ø32 X 90MM BTKV50HCTHT32090M 6048261 CVKV40 HYDROFORCE Ø1-1/4 X 3.15" CVKV40HCTHT125315 5521078 CVKV50 HYDROFORCE Ø1-1/4 X 3.15" CVKV50HCTHT125315 SLEEVES • Specially designed for high-precision and secure clamping of cylindrical shanks with SAFE-LOCK feature • Self-sealing design supports efficient through-coolant • Special drive feature in reducer sleeve meets grooves in tool shank to prevent spinning and pullout during extreme machining conditions • One piece design with slot configuration to seal coolant Order Number Description ANSI Catalog Number 5998754 HC SFL REDUCER 1-1/4" OD TO 1/2" ID 12HCSFC0500 5998755 HC SFL REDUCER 1-1/4" OD TO 5/8" ID 12HCSFC0625 5998756 HC SFL REDUCER 1-1/4" OD TO 3/4" ID 12HCSFC0750 7164643 HC SFL REDUCER 1-1/4" OD TO 1.0" ID 12HCSFC1000 5998607 HC SFL REDUCER 32.0MM OD TO 12.0MM ID 32MHCSFC120M 5998608 HC SFL REDUCER 32.0MM OD TO 14.0MM ID 32MHCSFC140M 5998609 HC SFL REDUCER 32.0MM OD TO 16.0MM ID 32MHCSFC160M 5998610 HC SFL REDUCER 32.0MM OD TO 20.0MM ID 32MHCSFC200M 7164644 HC SFL REDUCER 32.0MM OD TO 25.0MM ID 32MHCSFC250M 5
