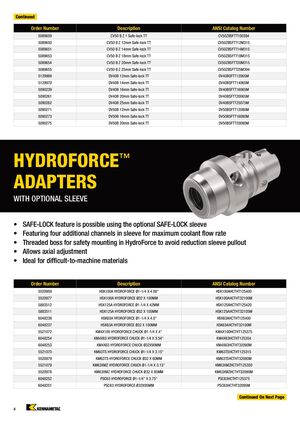

Continued Order Number Description ANSI Catalog Number 5089659 CV50 B Z 1 Safe-lock TT CV50ZBSFTT100394 5089650 CV50 B Z 12mm Safe-lock TT CV50ZBSFTT12M315 5089651 CV50 B Z 14mm Safe-lock TT CV50ZBSFTT14M315 5089653 CV50 B Z 18mm Safe-lock TT CV50ZBSFTT18M315 5089654 CV50 B Z 20mm Safe-lock TT CV50ZBSFTT20M315 5089655 CV50 B Z 25mm Safe-lock TT CV50ZBSFTT25M394 5129969 DV40B 12mm Safe-lock TT DV40BSFTT12065M 5129970 DV40B 14mm Safe-lock TT DV40BSFTT14065M 5090239 DV40B 16mm Safe-lock TT DV40BSFTT16065M 5090261 DV40B 20mm Safe-lock TT DV40BSFTT20065M 5090262 DV40B 25mm Safe-lock TT DV40BSFTT25075M 5090271 DV50B 12mm Safe-lock TT DV50BSFTT12080M 5090273 DV50B 16mm Safe-lock TT DV50BSFTT16080M 5090275 DV50B 20mm Safe-lock TT DV50BSFTT20080M HYDROFORCE™ ADAPTERS WITH OPTIONAL SLEEVE • SAFE-LOCK feature is possible using the optional SAFE-LOCK sleeve • Featuring four additional channels in sleeve for maximum coolant flow rate • Threaded boss for safety mounting in HydroForce to avoid reduction sleeve pullout • Allows axial adjustment • Ideal for difficult-to-machine materials Order Number Description ANSI Catalog Number 5520959 HSK100A HYDROFORCE Ø1-1/4 X 4.00" HSK100AHCTHT125400 5520977 HSK100A HYDROFORCE Ø32 X 100MM HSK100AHCTHT32100M 5883512 HSK125A HYDROFORCE Ø1-1/4 X 42MM HSK125AHCTHT125420 5883511 HSK125A HYDROFORCE Ø32 X 105MM HSK125AHCTHT32105M 6048238 HSK63A HYDROFORCE Ø1-1/4 X 4.0" HSK63AHCTHT125400 6048237 HSK63A HYDROFORCE Ø32 X 100MM HSK63AHCTHT32100M 5521072 KM4X100 HYDROFORCE CHUCK Ø1-1/4 X 4" KM4X100HCTHT125375 6048254 KM4X63 HYDROFORCE CHUCK Ø1-1/4 X 3.54" KM4X63HCTHT125354 6048253 KM4X63 HYDROFORCE CHUCK Ø32X90MM KM4X63HCTHT32090M 5521070 KM63TS HYDROFORCE CHUCK Ø1-1/4 X 3.15" KM63TSHCTHT125315 5520979 KM63TS HYDROFORCE CHUCK Ø32 X 80MM KM63TSHCTHT32080M 5521079 KM63XMZ HYDROFORCE CHUCK Ø1-1/4 X 3.15" KM63XMZHCTHT125350 5520978 KM63XMZ HYDROFORCE CHUCK Ø32 X 85MM KM63XMZHCTHT32090M 6048252 PSC63 HYDROFORCE Ø1-1/4" X 3.75" PSC63HCTHT125375 6048251 PSC63 HYDROFORCE Ø32X95MM PSC63HCTHT32095M Continued On Next Page 4
