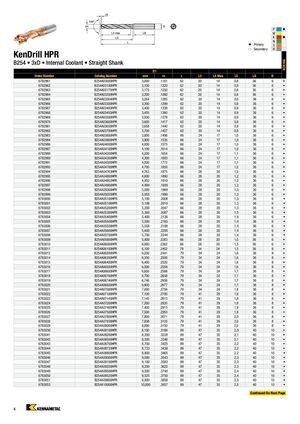

KenDrill HPR
B254 • 3xD • Внутреннее охлаждение • Прямая хвостовая часть
| Номер заказа | Номер каталога | D1 (мм) | D1 (дюйм) | L | L3 | L4 макс | L5 | LS | D | Марка |
|---|---|---|---|---|---|---|---|---|---|---|
| 6782961 | B254A03000HPR | 3,000 | .1181 | 62 | 20 | 14 | 0,8 | 36 | 6 | KCK10A |
| 6782962 | B254A03100HPR | 3,100 | .1220 | 62 | 20 | 14 | 0,8 | 36 | 6 | KCK10A |
| 6782963 | B254A03175HPR | 3,175 | .1250 | 62 | 20 | 14 | 0,8 | 36 | 6 | KCK10A |
| 6782964 | B254A03200HPR | 3,200 | .1260 | 62 | 20 | 14 | 0,8 | 36 | 6 | KCK10A |
| 6782965 | B254A03264HPR | 3,264 | .1285 | 62 | 20 | 14 | 0,8 | 36 | 6 | KCK10A |
| 6782966 | B254A03300HPR | 3,300 | .1299 | 62 | 20 | 14 | 0,8 | 36 | 6 | KCK10A |
| 6782967 | B254A03400HPR | 3,400 | .1339 | 62 | 20 | 14 | 0,9 | 36 | 6 | KCK10A |
| 6782968 | B254A03455HPR | 3,455 | .1360 | 62 | 20 | 14 | 0,9 | 36 | 6 | KCK10A |
| 6782969 | B254A03500HPR | 3,500 | .1378 | 62 | 20 | 14 | 0,9 | 36 | 6 | KCK10A |
| 6782970 | B254A03600HPR | 3,600 | .1417 | 62 | 20 | 14 | 0,9 | 36 | 6 | KCK10A |
| 6782981 | B254A03658HPR | 3,658 | .1440 | 62 | 20 | 14 | 0,9 | 36 | 6 | KCK10A |
| 6782982 | B254A03700HPR | 3,700 | .1457 | 62 | 20 | 14 | 0,9 | 36 | 6 | KCK10A |
| 6782983 | B254A03800HPR | 3,800 | .1496 | 66 | 24 | 17 | 1,0 | 36 | 6 | KCK10A |
| 6782984 | B254A03900HPR | 3,900 | .1535 | 66 | 24 | 17 | 1,0 | 36 | 6 | KCK10A |
| 6782986 | B254A04000HPR | 4,000 | .1575 | 66 | 24 | 17 | 1,0 | 36 | 6 | KCK10A |
| 6782987 | B254A04100HPR | 4,100 | .1614 | 66 | 24 | 17 | 1,0 | 36 | 6 | KCK10A |
| 6782988 | B254A04200HPR | 4,200 | .1654 | 66 | 24 | 17 | 1,1 | 36 | 6 | KCK10A |
| 6782989 | B254A04300HPR | 4,300 | .1693 | 66 | 24 | 17 | 1,1 | 36 | 6 | KCK10A |
| 6782991 | B254A04500HPR | 4,500 | .1772 | 66 | 24 | 17 | 1,1 | 36 | 6 | KCK10A |
| 6782993 | B254A04700HPR | 4,700 | .1850 | 66 | 24 | 17 | 1,2 | 36 | 6 | KCK10A |
| 6782994 | B254A04763HPR | 4,763 | .1875 | 66 | 28 | 20 | 1,2 | 36 | 6 | KCK10A |
| 6782995 | B254A04800HPR | 4,800 | .1890 | 66 | 28 | 20 | 1,2 | 36 | 6 | KCK10A |
| 6782996 | B254A04852HPR | 4,852 | .1910 | 66 | 28 | 20 | 1,2 | 36 | 6 | KCK10A |
| 6782997 | B254A04900HPR | 4,900 | .1929 | 66 | 28 | 20 | 1,2 | 36 | 6 | KCK10A |
| 6782998 | B254A05000HPR | 5,000 | .1969 | 66 | 28 | 20 | 1,3 | 36 | 6 | KCK10A |
| 6782999 | B254A05055HPR | 5,055 | .1990 | 66 | 28 | 20 | 1,3 | 36 | 6 | KCK10A |
| 6783000 | B254A05100HPR | 5,100 | .2008 | 66 | 28 | 20 | 1,3 | 36 | 6 | KCK10A |
| 6783001 | B254A05106HPR | 5,106 | .2010 | 66 | 28 | 20 | 1,3 | 36 | 6 | KCK10A |
| 6783002 | B254A05200HPR | 5,200 | .2047 | 66 | 28 | 20 | 1,3 | 36 | 6 | KCK10A |
| 6783003 | B254A05300HPR | 5,300 | .2087 | 66 | 28 | 20 | 1,3 | 36 | 6 | KCK10A |
| 6783004 | B254A05400HPR | 5,400 | .2126 | 66 | 28 | 20 | 1,4 | 36 | 6 | KCK10A |
| 6783005 | B254A05500HPR | 5,500 | .2165 | 66 | 28 | 20 | 1,4 | 36 | 6 | KCK10A |
| 6783006 | B254A05558HPR | 5,558 | .2188 | 66 | 28 | 20 | 1,4 | 36 | 6 | KCK10A |
| 6783007 | B254A05600HPR | 5,600 | .2205 | 66 | 28 | 20 | 1,4 | 36 | 6 | KCK10A |
| 6783008 | B254A05700HPR | 5,700 | .2244 | 66 | 28 | 20 | 1,4 | 36 | 6 | KCK10A |
| 6783009 | B254A05800HPR | 5,800 | .2283 | 66 | 28 | 20 | 1,5 | 36 | 6 | KCK10A |
| 6783010 | B254A06000HPR | 6,000 | .2362 | 66 | 28 | 20 | 1,5 | 36 | 6 | KCK10A |
| 6783011 | B254A06100HPR | 6,100 | .2402 | 79 | 34 | 24 | 1,5 | 36 | 8 | KCK10A |
| 6783012 | B254A06200HPR | 6,200 | .2441 | 79 | 34 | 24 | 1,6 | 36 | 8 | KCK10A |
| 6783014 | B254A06350HPR | 6,350 | .2500 | 79 | 34 | 24 | 1,6 | 36 | 8 | KCK10A |
| 6783015 | B254A06400HPR | 6,400 | .2520 | 79 | 34 | 24 | 1,6 | 36 | 8 | KCK10A |
| 6783016 | B254A06500HPR | 6,500 | .2559 | 79 | 34 | 24 | 1,6 | 36 | 8 | KCK10A |
| 6783017 | B254A06600HPR | 6,600 | .2598 | 79 | 34 | 24 | 1,7 | 36 | 8 | KCK10A |
| 6783018 | B254A06700HPR | 6,700 | .2638 | 79 | 34 | 24 | 1,7 | 36 | 8 | KCK10A |
| 6783019 | B254A06746HPR | 6,746 | .2656 | 79 | 34 | 24 | 1,7 | 36 | 8 | KCK10A |
| 6783020 | B254A06800HPR | 6,800 | .2677 | 79 | 34 | 24 | 1,7 | 36 | 8 | KCK10A |
| 6783021 | B254A07000HPR | 7,000 | .2756 | 79 | 34 | 24 | 1,8 | 36 | 8 | KCK10A |
| 6783022 | B254A07100HPR | 7,100 | .2795 | 79 | 41 | 29 | 1,8 | 36 | 8 | KCK10A |
| 6783023 | B254A07145HPR | 7,145 | .2813 | 79 | 41 | 29 | 1,8 | 36 | 8 | KCK10A |
| 6783024 | B254A07200HPR | 7,200 | .2835 | 79 | 41 | 29 | 1,8 | 36 | 8 | KCK10A |
| 6783025 | B254A07400HPR | 7,400 | .2913 | 79 | 41 | 29 | 1,9 | 36 | 8 | KCK10A |
| 6783026 | B254A07500HPR | 7,500 | .2953 | 79 | 41 | 29 | 1,9 | 36 | 8 | KCK10A |
| 6783027 | B254A07800HPR | 7,800 | .3071 | 79 | 41 | 29 | 2,0 | 36 | 8 | KCK10A |
| 6783028 | B254A07938HPR | 7,938 | .3125 | 79 | 41 | 29 | 2,0 | 36 | 8 | KCK10A |
| 6783029 | B254A08000HPR | 8,000 | .3150 | 79 | 41 | 29 | 2,0 | 36 | 8 | KCK10A |
| 6783030 | B254A08100HPR | 8,100 | .3189 | 89 | 47 | 35 | 2,0 | 40 | 10 | KCK10A |
| 6783041 | B254A08200HPR | 8,200 | .3228 | 89 | 47 | 35 | 2,1 | 40 | 10 | KCK10A |
| 6783042 | B254A08500HPR | 8,500 | .3346 | 89 | 47 | 35 | 2,1 | 40 | 10 | KCK10A |
| 6783043 | B254A08700HPR | 8,700 | .3425 | 89 | 47 | 35 | 2,2 | 40 | 10 | KCK10A |
| 6783044 | B254A08733HPR | 8,733 | .3438 | 89 | 47 | 35 | 2,2 | 40 | 10 | KCK10A |
| 6783045 | B254A08800HPR | 8,800 | .3465 | 89 | 47 | 35 | 2,2 | 40 | 10 | KCK10A |
| 6783046 | B254A09000HPR | 9,000 | .3543 | 89 | 47 | 35 | 2,3 | 40 | 10 | KCK10A |
| 6783047 | B254A09100HPR | 9,100 | .3583 | 89 | 47 | 35 | 2,3 | 40 | 10 | KCK10A |
| 6783048 | B254A09200HPR | 9,200 | .3622 | 89 | 47 | 35 | 2,3 | 40 | 10 | KCK10A |
| 6783049 | B254A09500HPR | 9,500 | .3740 | 89 | 47 | 35 | 2,4 | 40 | 10 | KCK10A |
| 6783050 | B254A09525HPR | 9,525 | .3750 | 89 | 47 | 35 | 2,4 | 40 | 10 | KCK10A |
| 6783051 | B254A09800HPR | 9,800 | .3858 | 89 | 47 | 35 | 2,5 | 40 | 10 | KCK10A |
| 6783053 | B254A10000HPR | 10,000 | .3937 | 89 | 47 | 35 | 2,5 | 40 | 10 | KCK10A |
