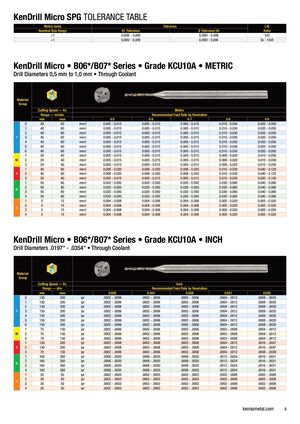

KenDrill Micro SPG TOLERANCE TABLE Metric (mm) Tolerance L/D Nominal Size Range D1 Tolerance D Tolerance h6 Ratio <1 0,009/ - 0,000 0,000/ - 0,006 1xD <1 0,000/ - 0,009 0,000/ - 0,006 5x - 12xD KenDrill Micro • B06*/B07* Series • Grade KCU10A • METRIC Drill Diameters 0,5 mm to 1,0 mm • Through Coolant Material Group Cutting Speed — Vc Metric Range — m/min Recommended Feed Rate by Revolution min max 0.5 0.6 0.7 0.8 0.9 0 40 60 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.010 - 0.030 0.020 - 0.050 1 40 60 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.010 - 0.030 0.020 - 0.050 2 40 60 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.010 - 0.030 0.020 - 0.050 P 3 40 60 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.010 - 0.030 0.020 - 0.050 4 40 60 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.010 - 0.030 0.020 - 0.050 5 40 60 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.010 - 0.030 0.020 - 0.050 6 40 60 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.010 - 0.030 0.020 - 0.050 1 20 40 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.008 - 0.020 0.010 - 0.030 M 2 20 40 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.008 - 0.020 0.010 - 0.030 3 20 40 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.008 - 0.020 0.010 - 0.030 1 40 60 mm/r 0.008 - 0.020 0.008 - 0.020 0.008 - 0.020 0.010 - 0.030 0.040 - 0.120 K 2 40 60 mm/r 0.008 - 0.020 0.008 - 0.020 0.008 - 0.020 0.010 - 0.030 0.040 - 0.120 3 20 40 mm/r 0.005 - 0.015 0.005 - 0.015 0.005 - 0.015 0.010 - 0.030 0.020 - 0.100 1 50 80 mm/r 0.020 - 0.050 0.020 - 0.050 0.020 - 0.050 0.030 - 0.060 0.040 - 0.080 2 50 80 mm/r 0.020 - 0.050 0.020 - 0.050 0.020 - 0.050 0.030 - 0.060 0.040 - 0.080 N 3 50 80 mm/r 0.020 - 0.050 0.020 - 0.050 0.020 - 0.050 0.030 - 0.060 0.040 - 0.080 4 50 80 mm/r 0.020 - 0.050 0.020 - 0.050 0.020 - 0.050 0.030 - 0.060 0.040 - 0.080 1 5 15 mm/r 0.004 - 0.008 0.004 - 0.008 0.004 - 0.008 0.005 - 0.020 0.005 - 0.020 2 5 15 mm/r 0.004 - 0.008 0.004 - 0.008 0.004 - 0.008 0.005 - 0.020 0.005 - 0.020 S 3 5 15 mm/r 0.004 - 0.008 0.004 - 0.008 0.004 - 0.008 0.005 - 0.020 0.005 - 0.020 4 5 15 mm/r 0.004 - 0.008 0.004 - 0.008 0.004 - 0.008 0.005 - 0.020 0.005 - 0.020 KenDrill Micro • B06*/B07* Series • Grade KCU10A • INCH Drill Diameters .0197" - .0354" • Through Coolant Material Group Cutting Speed — Vc Inch Range — sfm Recommended Feed Rate by Revolution min max 0.020 0.024 0.028 0.031 0.035 0 130 200 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0004 - .0012 .0008 - .0020 1 130 200 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0004 - .0012 .0008 - .0020 2 130 200 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0004 - .0012 .0008 - .0020 P 3 130 200 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0004 - .0012 .0008 - .0020 4 130 200 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0004 - .0012 .0008 - .0020 5 130 200 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0004 - .0012 .0008 - .0020 6 130 200 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0004 - .0012 .0008 - .0020 1 70 130 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0003 - .0008 .0004 - .0012 M 2 70 130 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0003 - .0008 .0004 - .0012 3 70 130 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0003 - .0008 .0004 - .0012 1 130 200 ipr .0003 - .0008 .0003 - .0008 .0003 - .0008 .0004 - .0012 .0016 - .0047 K 2 130 200 ipr .0003 - .0008 .0003 - .0008 .0003 - .0008 .0004 - .0012 .0016 - .0047 3 70 130 ipr .0002 - .0006 .0002 - .0006 .0002 - .0006 .0004 - .0012 .0008 - .0039 1 160 260 ipr .0008 - .0020 .0008 - .0020 .0008 - .0020 .0012 - .0024 .0016 - .0031 2 160 260 ipr .0008 - .0020 .0008 - .0020 .0008 - .0020 .0012 - .0024 .0016 - .0031 N 3 160 260 ipr .0008 - .0020 .0008 - .0020 .0008 - .0020 .0012 - .0024 .0016 - .0031 4 160 260 ipr .0008 - .0020 .0008 - .0020 .0008 - .0020 .0012 - .0024 .0016 - .0031 1 20 50 ipr .0002 - .0003 .0002 - .0003 .0002 - .0003 .0002 - .0008 .0002 - .0008 2 20 50 ipr .0002 - .0003 .0002 - .0003 .0002 - .0003 .0002 - .0008 .0002 - .0008 S 3 20 50 ipr .0002 - .0003 .0002 - .0003 .0002 - .0003 .0002 - .0008 .0002 - .0008 4 20 50 ipr .0002 - .0003 .0002 - .0003 .0002 - .0003 .0002 - .0008 .0002 - .0008 kennametal.com 5
